2. PRODUCT INTRODUCTION
The Sunsynk Single-Phase Hybrid Inverter is a highly efficient power management tool
that allows the user to hit those ‘parity’ targets by managing power-flow from multiple
sources such as solar, mains power (grid) and generators, and then effectively storing and
releasing power as and when utilities require.
2.1. System Overview
INTERACTIVE
Easy and simple to understand display
Supporting Wi-Fi or GSM monitoring
Visual power flow screen
Smart settable 3-stage MPPT charging for optimized battery performance
Auxiliary load function
Parallel / multi invert function grid-tied and off-grid
COMPATIBLE
Compatible with main electrical grid voltages or power generators
Compatible with wind turbines
220V single phase, pure sinewave inverter
Self-consumption and feed-in to the grid
Auto restart while AC is recovering
Auto earth bond feature (Via a relay)

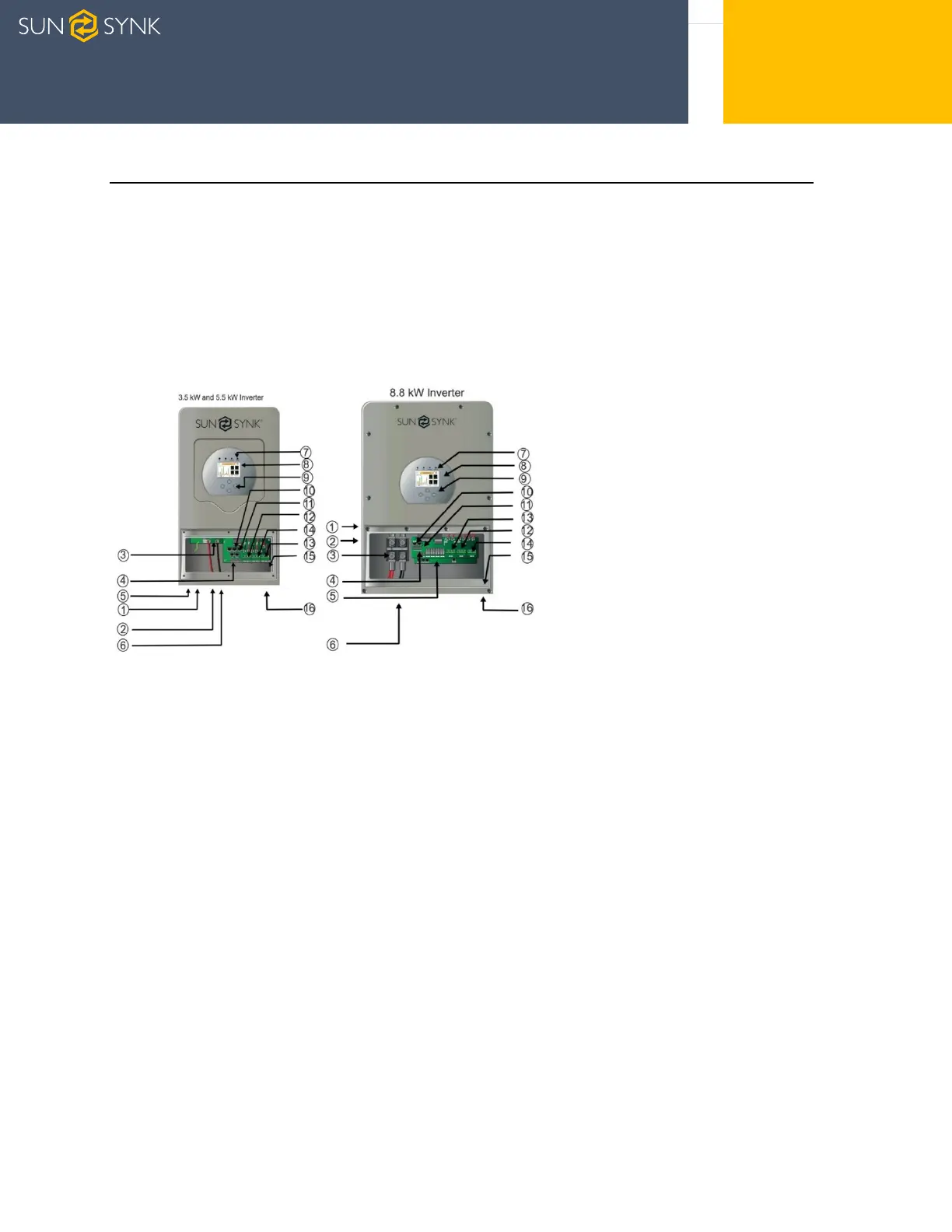

1. PV isolator
2. Power ON/OFF
3. Battery input connectors
4. I/O Ports
5. MPPT 1 and MPPT 2 inputs
6. Battery cable compression gland
7. Inverter LED indicators
8. LCD display
9. Function buttons
10. RS485 port
11. CAN bus port
12. Generator / Aux IN/OUT
13. On-grid inverter
14. Load off-grid inverter
15. Ground connection
16. Data logger
