8
the central spindle directly to the Glass contact on the back of controller and connect
network cable to Ref contact.
3.4. 2 Assembly of housing PP-100A
1. Insert (H) Sensing electrode through (G) PP Electrode Protective Housing
2. Lubricate (H) Sensing electrode properly, so that it can be easily pass through (I) Rubber
electrode holder leaving about 5cm bellow.
3. Install the prepared (I) Rubber electrode holder into (G) PP Electrode Protective Housing
and lock (J) PP pipe protective cover tightly.
4. Insert (H) Sensing electrode cable through (D) Lower cover of round junction box and (C)
Cable fixing point, and use (D) Lower cover of round junction box to lock (G) PP
Electrode Protective Housing tightly.
5. Prepare 15cm cable in the PP pipe, and then lock (C) Cable fixing point MG16A tightly.
Leave (H) Sensing electrode cable for about 12-14cm, and split it carefully.
6. Fix the terminal of electrode central spindle on terminal block 1 of round holder; Fix the
terminal of electrode network cable on terminal block 3. (See the instruction of junction
box)
7. Extend the cable to pass through (E) Cable fixing point on (D) Lower cover of round
junction box, and lock (E) Cable fixing point MG16A tightly, leaving 12-14cm in the box
for split.
8. Extend the lead central spindle and electrode central spindle to connect them; extend the
lead network cable to fix on the terminal block 3. Lock (A) Upper cover of round junction

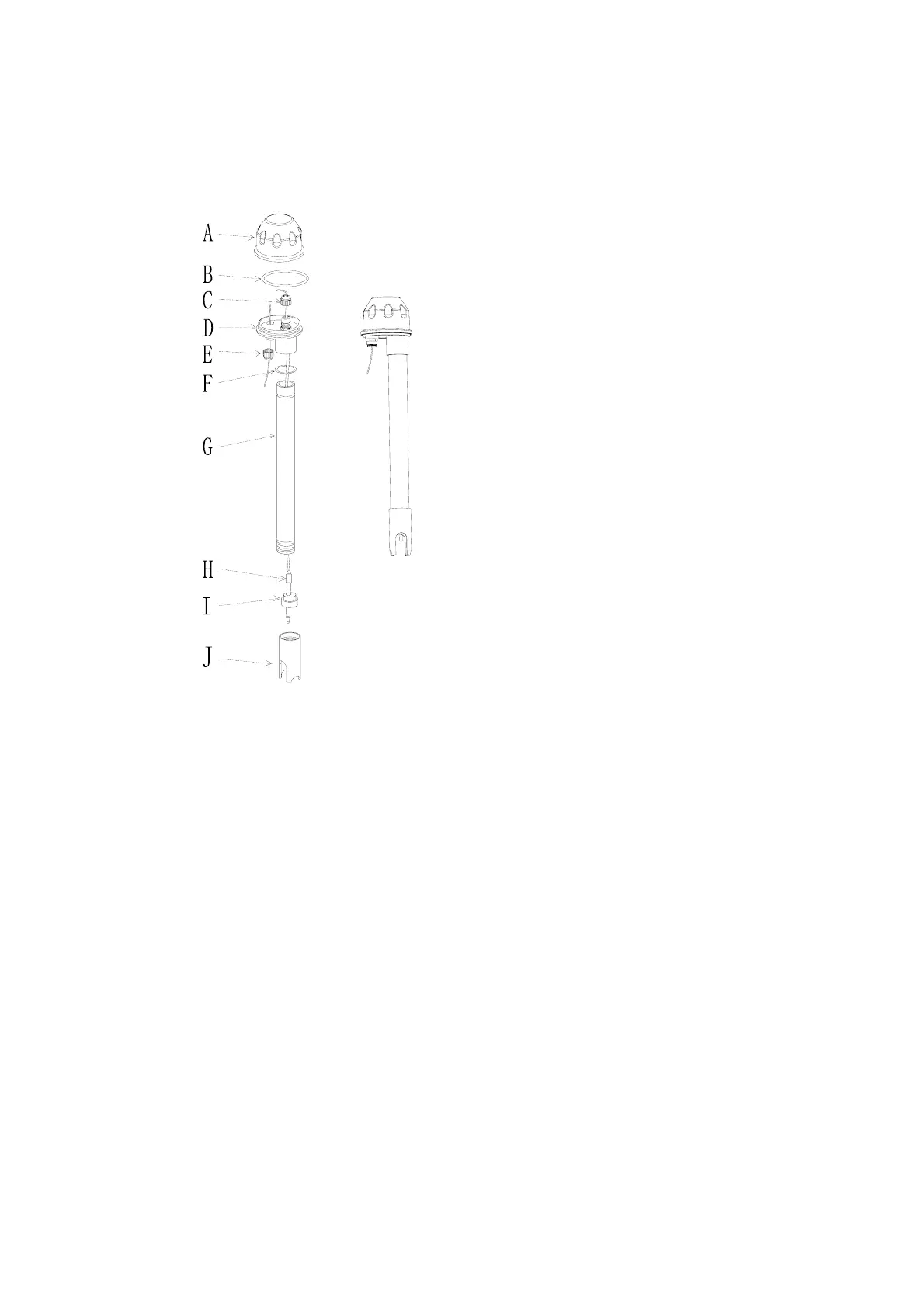

A------Upper cover of round joint box
B------O-Shaped ring
C------Cable fixing point MG16A
D------ Lower cover of round joint box
E------ Cable fixing point MG16A
F------ O-Shaped ring
G------PP Electrode Protective Housing
H------ Sensing electrode
I------- Rubber electrode holder
J------PP pipe protective cover
