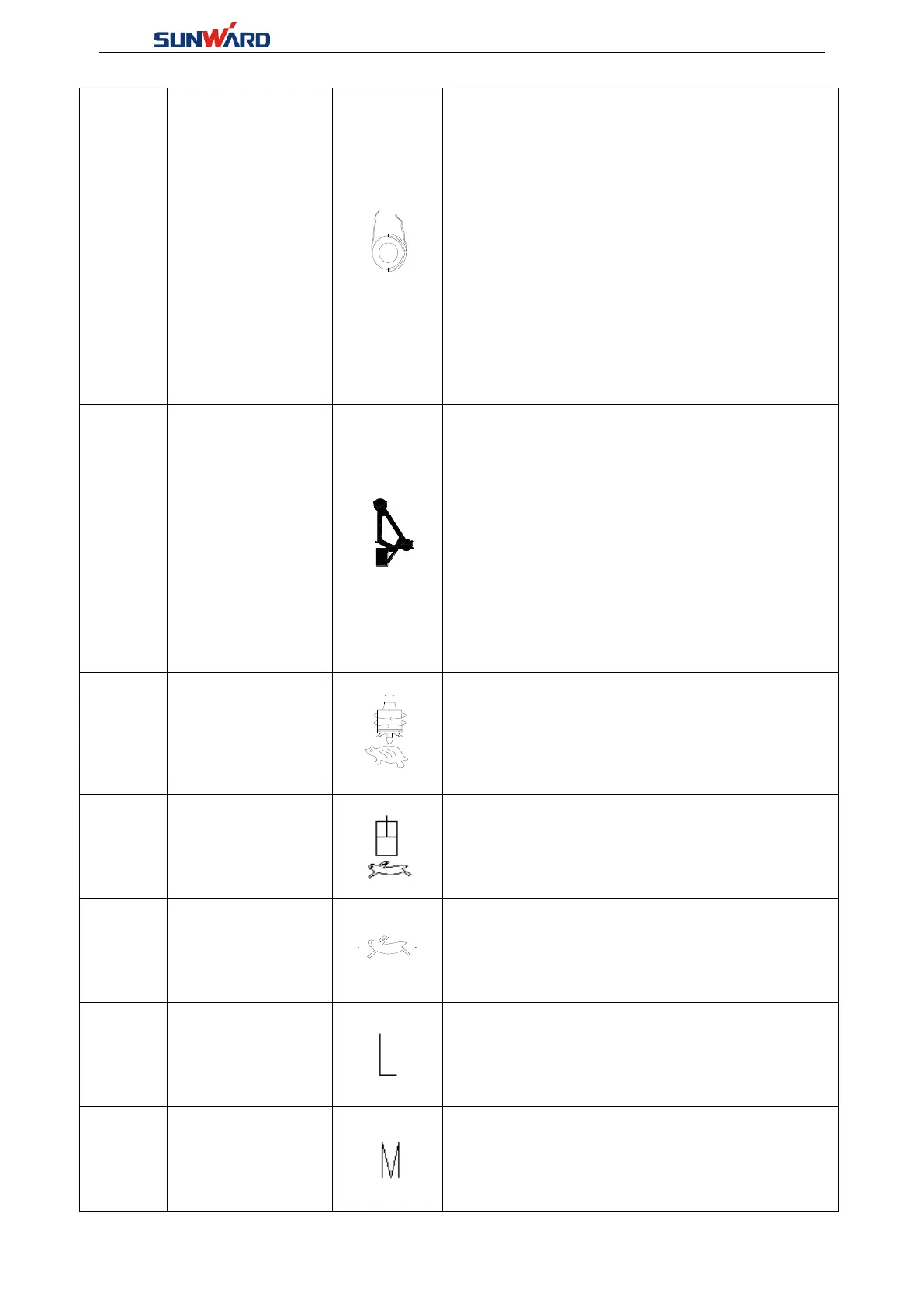

Pressurized winch
wirerope extension
switch
When “Button 1-Working switch”is disconnected:
“Button 5—Pressurized winch rope extension
switch”is connected, right pilot handle leftward,
pressurized winch wirerope cylinder will be
retreated. Right pilot handle rightward,
pressurized winch wirerope cylinder will be
extended
6
Goose head
cylinder switch
When “Button 1-Working switch”is disconnected:
“Button 6—Goose head cylinder switch”is
connected, right pilot handle leftward, pressurized
winch wirerope cylinder will be retreated. Right
pilot handle rightward, pressurized winch
wirerope cylinder will be extended
★Notice: This feature is not currently configured
on this model.
7
Rotary head
low-speed switch
The rotary head rotates slowly.
8
Pressurized
high-speed
Pressurized fast-speed switch of rotary head
9
Fast walking
Walking speed of equipment crawler.
★Notice: This feature is not currently configured
on this model.
10
Rotary head mode
L switch
Rotary head rotates at normal speed
11
Rotary head mode
M switch
Rotary head rotates at low speed 1.
