SUNWARD SWDM320HB - Page 75

SWDM320HB OPERATOR’S MANUAL
74

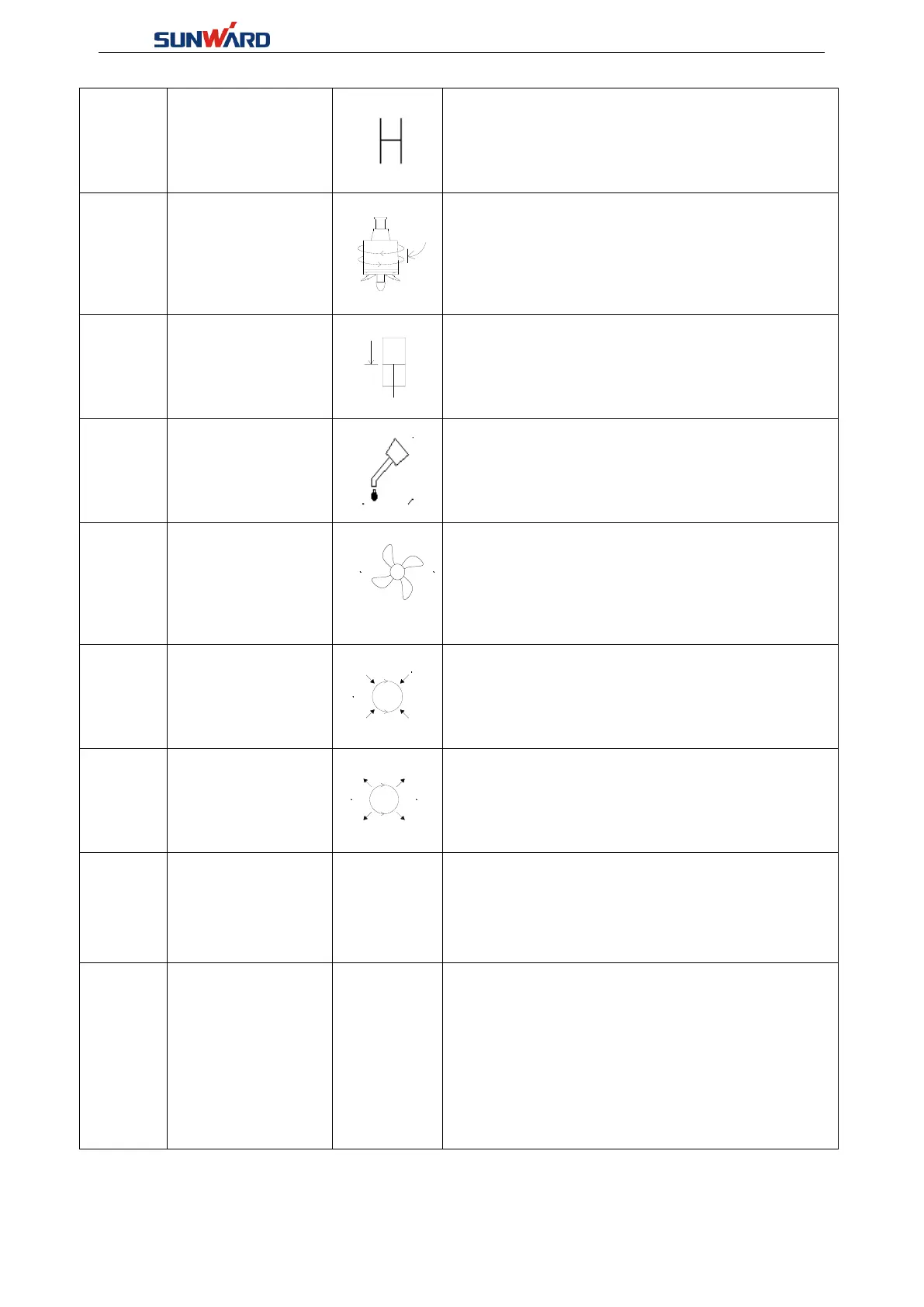

12
Rotary head mode
H switch
Rotary head rotates at low speed 2.
13
Rotary head torque
limit switch
Reduce the rotary head rotary pressure.
14
Pressure limit
switch
Reduce the rotary head pressurized pressure
★Notice: This feature is not currently configured
on this model.
15
Centralized
lubrication powers
switch
Centralized lubrication system will be opened.
16
Fan switch of
electric control
cabinet
Electric control cabinet cooling ventilation fan.
★Notice: This feature is not currently configured
on this model.
17
Rotary brake
cylinder retraction
switch
The rotary brake cylinder retracts.
★Notice: This feature is not currently configured
on this model.
18
Rotary brake
cylinder extension
switch
The rotary brake cylinder extends.
★Notice: This feature is not currently configured
on this model. Figure 3.2.1-12
19
Rotary head speed
up button
+
Press the left handle button 1 and press the rotary
head speed-increasing switch.For each time,the
current increases by 10mA,the port(XM3-20)
value increase by10.
20
Rotary head speed
down button
-
Press the left handle button 1 and press the rotary
head speed-increasing switch. For each time, the
current of rotary head control valve Y52 decreases
by 10mA.( Observe from the displayer monitoring
interface-port monitoring interface 4, Figure
3.2.1-12)
