2.1 POSITION OF THE VARIOUS MACHINE COMPONENTS
1. Cabin
2. Seat
3. Rear hood
4. Middle hood
5. Cab operation platform
6. Traveling motor
7. Support wheel
8. Carrier board
9. Rubber crawler
10. Guide wheel
11. Dozer blade
12. Dozer cylinder
13. Bucket
14. Link rod
15. Swing arm
16. Bucket cylinder
17. Arm
18. Arm cylinder
19. Boom
21. Boom cylinder
22. Swing head

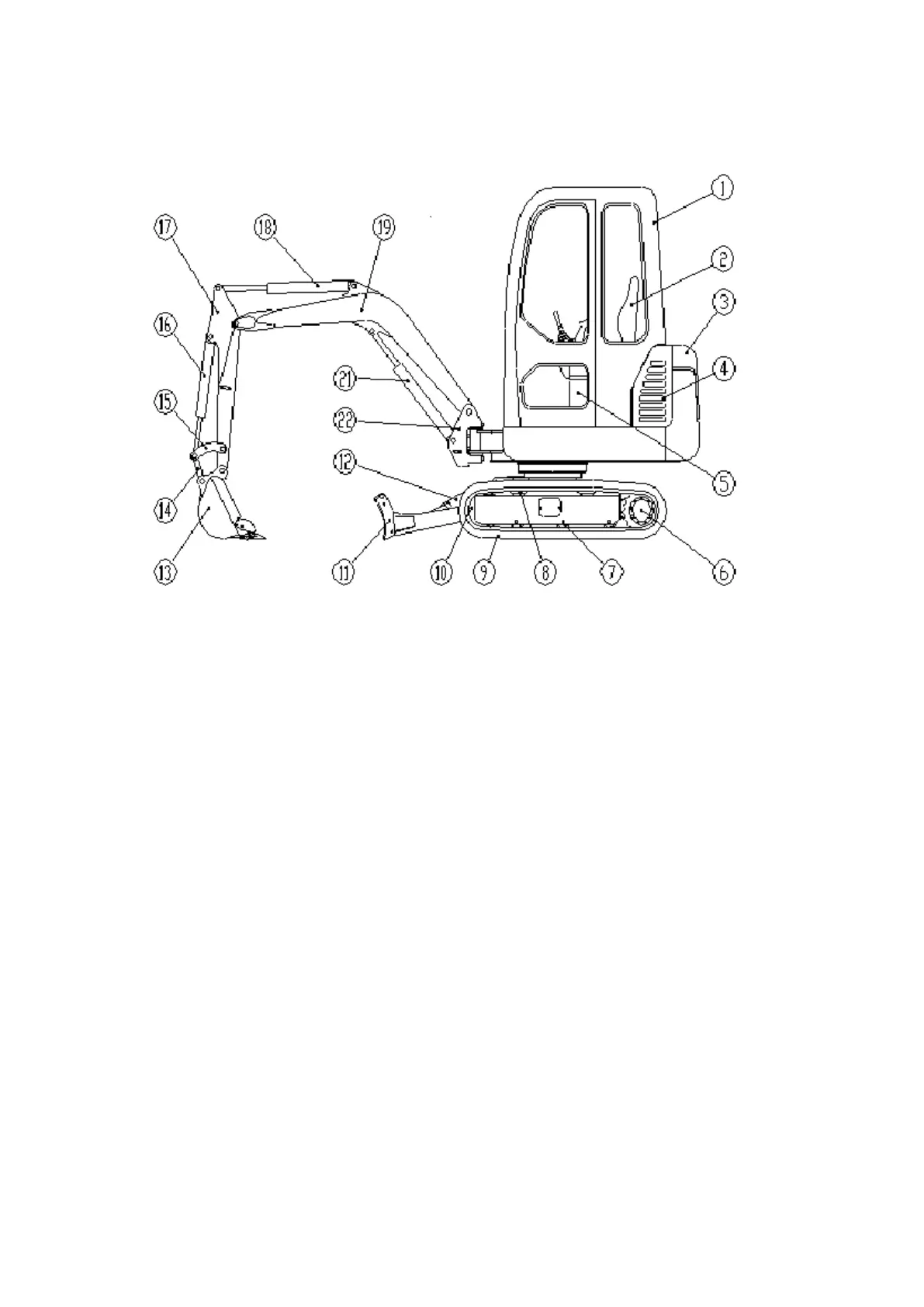

FIG. 2-1
