7.3 OPERATION PARAMETER

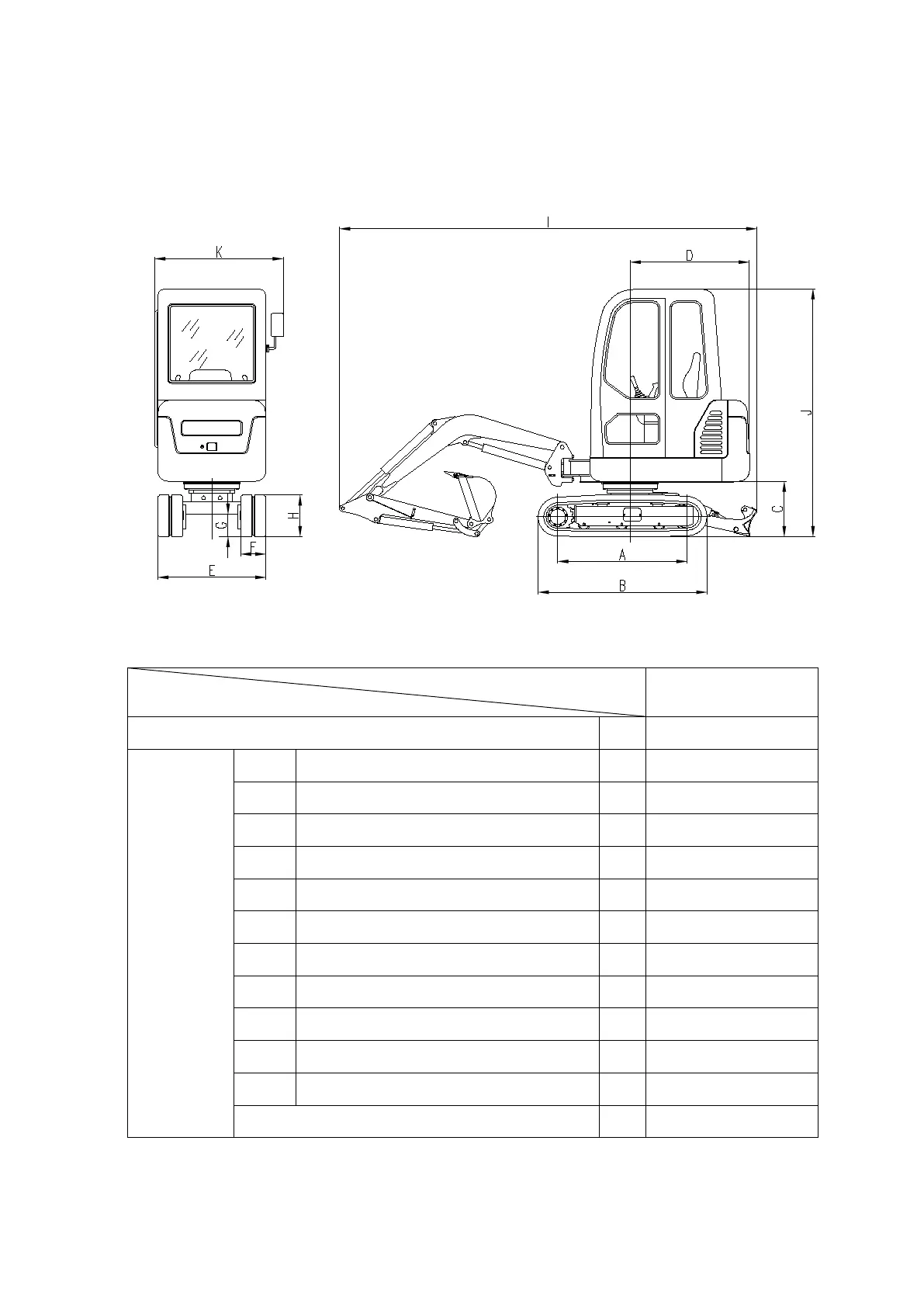

(1)Outline dimension
(2)Working range dimension
model
SWE20F
Outline dimension(length×width×height) mm 3820X990X2370
Dimension
parameter
A Distance between wheel mm
1210
B Length of track mm
1555
C Turret distance to ground mm
482
D Gyration radius of turret mm
1122
E Chassis width mm
990/1360
F Track width mm
230
G Ground clearance of chassis mm
160
H Track height mm
385
I Overall length mm
3820
J Overall height(to cab top) mm
2370
K Upper structure width mm
990
Dozer dimension(length × width) mm 1310×267
