2.4 WANE CONTROL PANEL
1－windshield wiper switch
This switch turns on and off the cabin windshield wiper. When
press this button, wiper starts working, and the green lamp turns
on, press the button again, green light turns off, which means the
wiper has stopped.
This is a two-gear switch, first half is the first gear (low speed),
the second half is the second gear (high speed).
2－Washer switch
This switch turns on and off the water bottle in cabin. When press this button, green lamp turns
on, the burner cap on glazing works; press the button again, the burner stops working.
3－heater switch
When press this button, green lamp turns on, heater works, the whole cabin starts to be heated.
4—transfer switch
Up and down switches are used to control dozer blade and the extension and retraction of chassis
separately.
5－Caution light switch
When press this button, red lamp turns on, caution light works and start flickering.
6－Wane panel

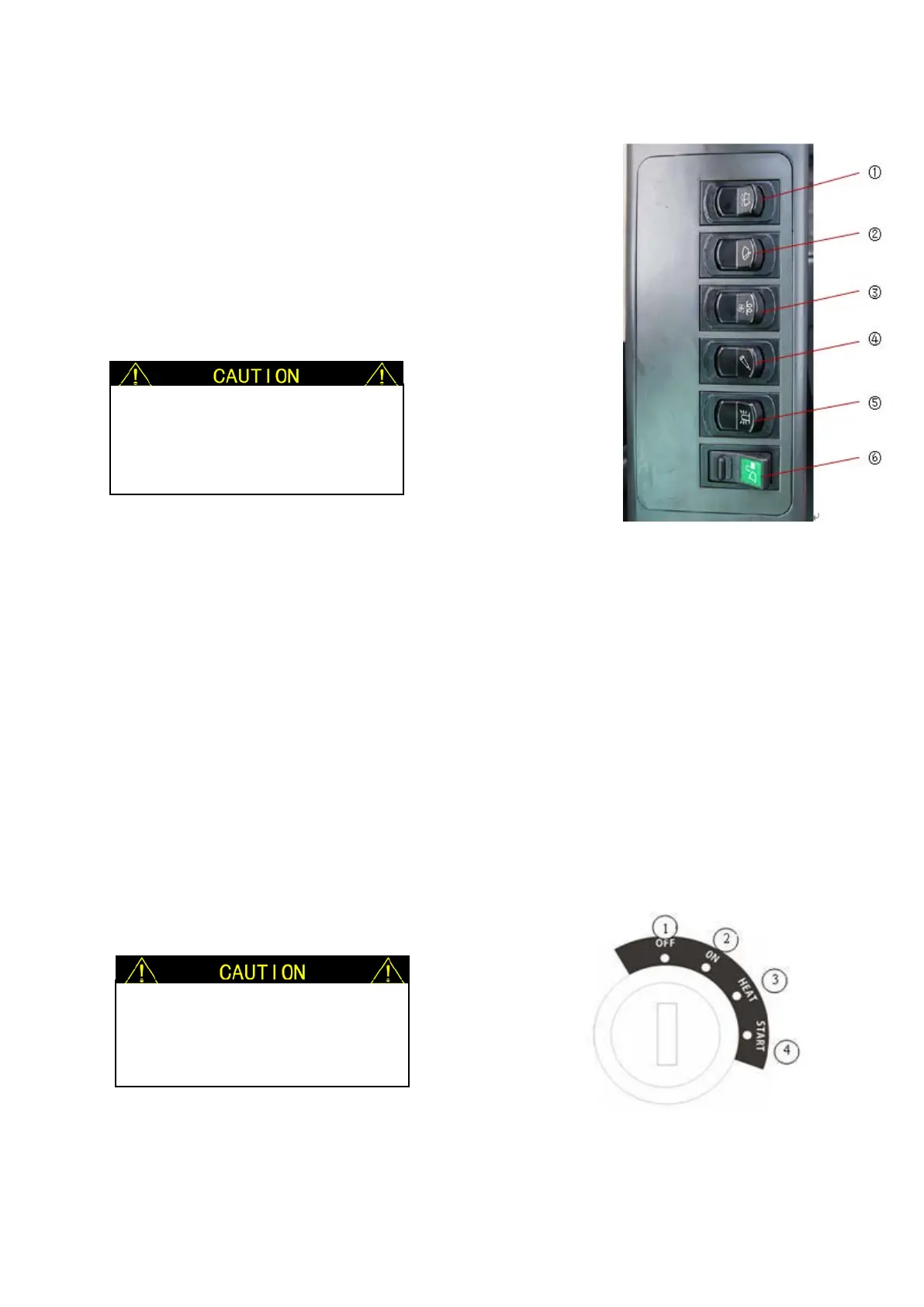

Figure 2-7 is the wane control panel of closed cabin, the simple cabin only applies to 4.
2.5 START-UP SWITCH
① －OFF(stop the engine)
② －ON(connect electric power )
③ －PREHEAT(warm-up)
④ －START(start engine)start the engine, The switch will turn back to “ON” position when
Do not turn the switch from “off”
to “on” or from “on ” to “off”
in a short time, or it may cause
FIG. 2-7
The wiper is likely to freeze up on
the glass, any operation of the
wiper before it is thawed may cause
damage to it.
