4 Installation
4.1 Mechanical installation
Requirements for installation
location
DANGER
The Solar Inverter must not be installed in areas subject to explosion hazards.
The Solar Inverter must not be exposed to caustic gases.
No combustible materials must be stored within 3 metres of the Solar Inver-
ter.
Protection against moisture
and foreign bodies
The high IP54 protection rating allows installation indoors and in roof-co-
vered areas outdoors. However, the Solar Inverter may not be directly expo-
sed to rain.
Mechanical load-bearing capa-
city
Note during installation that the Solar Inverter weighs 31 kg. The installation
surface must be firm and able to carry this weight in the long term.
Thermal interaction The installation surface must consist of flame-retardant material (not suitab-
le: wood or plastic surface; suitable: concrete and masonry), as the frame of
the Solar Inverter can heat up to a maximum of 70°C.

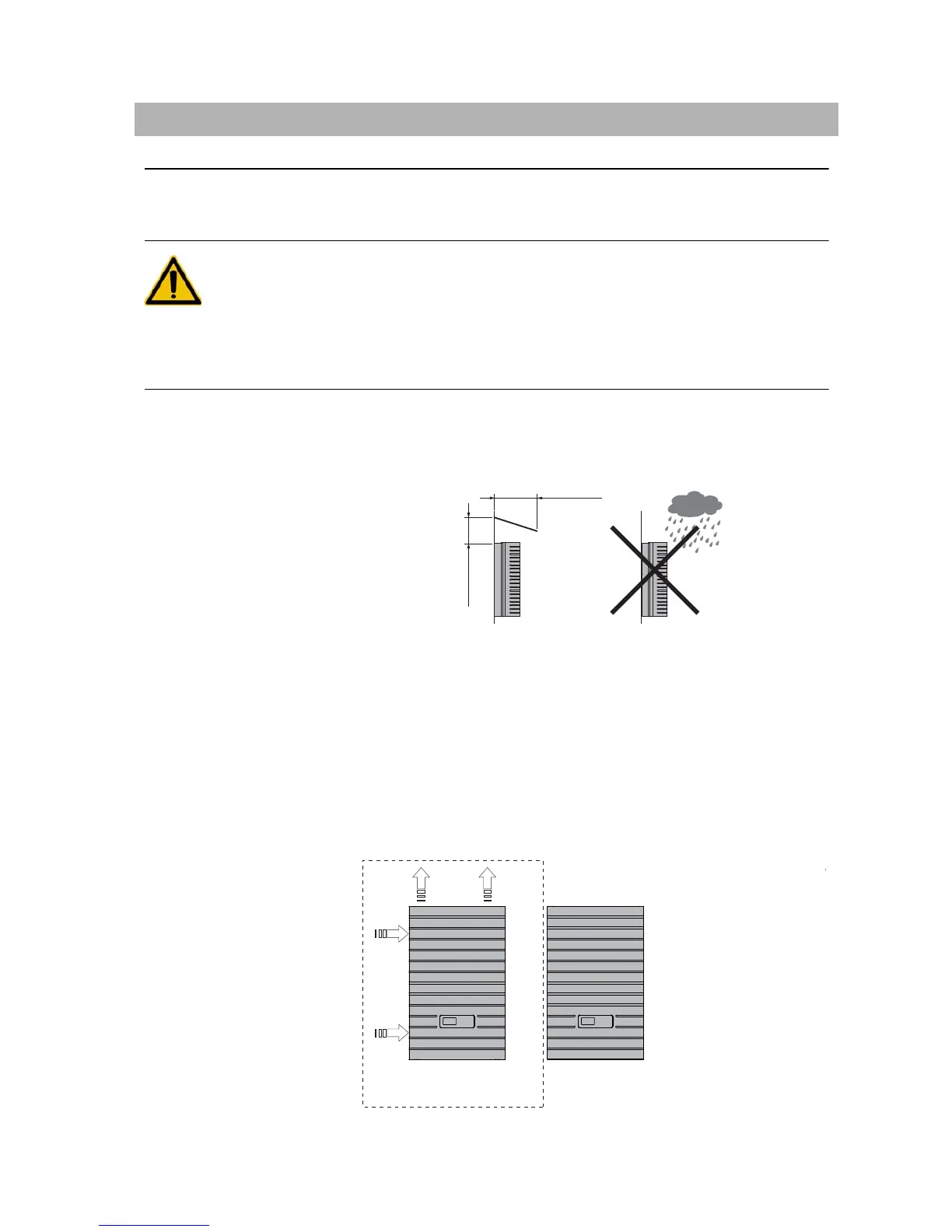

A minimum distance of 300 mm to other units, cabinets, ceilings, cable ducts,
etc. must be maintained above, below and to the sides of the housing (see
diagram).
The Solar Inverter must be installed upright to enable adequate free convec-
tion.
>300 mm
>350 mm
