Operation
NT 10000...NT 12000 37
6 Operation
6.1 General information

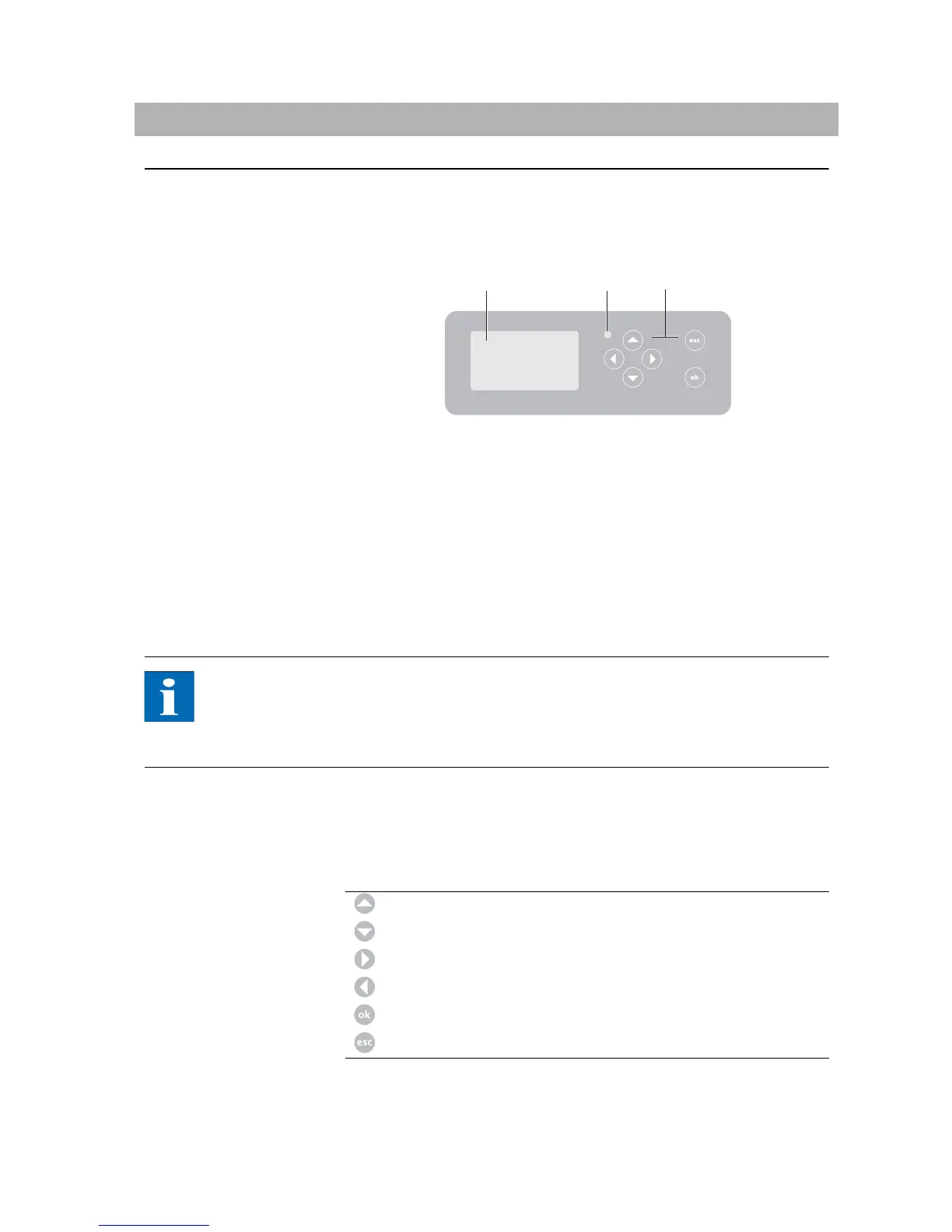

Operating elements
Operating field The Solar Inverter is operated via the control panel at the front.
1 LCD display (lighted)
2 Operating LED
3Keyboard
LCD display A graphics-capable, monochrome dot matrix display is integrated in the opera-
ting field. In standard mode the momentary output, daily yield and status are
displayed. The bar graph shows the energy feed-in of the current day.
Press any key to activate the display lighting.
If no key is pressed for approx. 1 minute, the display lighting goes out.
NOTE
Important!
The LCD display is not a calibrated measuring device. A deviation of several per-
cent is inherent in the system. Exact accounting of the data with the power sup-
ply company requires a calibrated meter.
Keyboard The keyboard can be used to navigate in the menu, edit text fields, select entries
from lists and enter numbers consecutively and digit by digit. User entries can
only be made if the value to be changed is selected. The cursor changes visibly
in the editing mode and indicates the digit to be changed.
Operating LED The combined red/green LED indicates the status of the Solar Inverter:
LED off
123
Solar Inverter NT
button Scroll up
button Scroll down
button Select menu item
button Back one menu level
button Select a menu item and confirm your entry
button Quit
