Installation
NT 10000...NT 12000 17

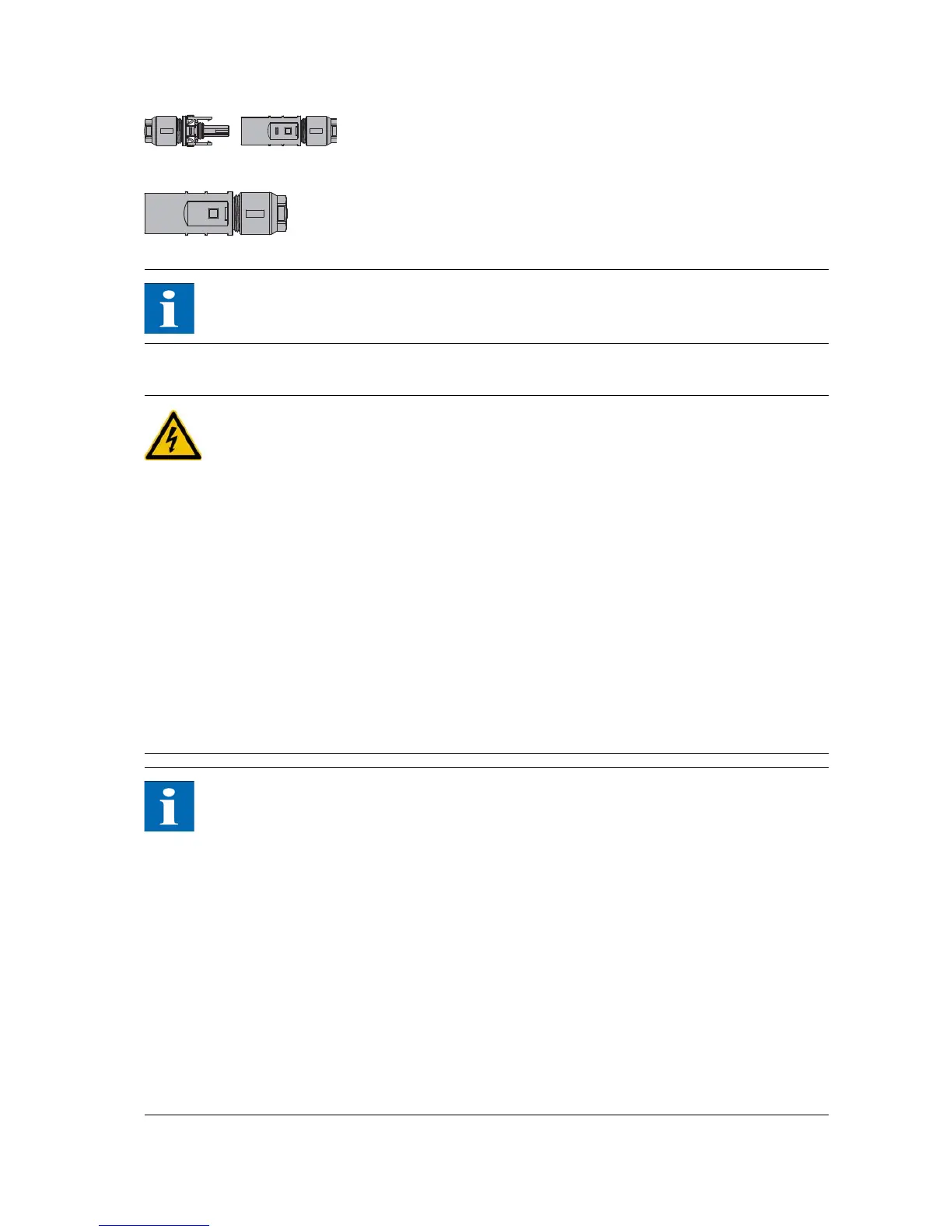

Negatively coded connector
Neutral connector
NOTE
The neutral connector can be used to connect both positively and negatively
coded sockets.
Installation
DANGER
Extreme danger from electric shock!
Touching live parts can result in death.
All electrical work must be carried out by a qualified electrician while obser-
ving the VDE regulations, national and other regulations.
Tyco Solarlok connectors are only approved for connection on permanently
installed lines.
Only Tyco Solarlok crimping pliers may be used to crimp the connectors.
During preassembly, the connectors must be separated from all other volta-
ge sources.
The connectors must not be separated under load. First interrupt the circuit
at a suitable point.
Provide the lines with corresponding stickers as close as possible to the con-
nectors to prevent confusion.
NOTE
Any kind of soiling (dust, moisture, etc.) has a negative effect on the connec-
tor system with regard to function over the intended period of use. This par-
ticularly applies to the suitability for use of the seals and the crimping of the
contacts. Therefore, extreme care must be taken to achieve proper proces-
sing during assembly.
Various circular contacts are used for different conductor cross-sections with
the Tyco Solarlok connectors. The correct tool insert must be used in ac-
cordance with this cross-section. The included Tyco Solarlok connectors are
equipped with circular contacts for a cable cross-section of 4 mm
2
.
The seals and clamping baskets used in the preassembled connectors are ap-
proved for cable sheath diameters from 4.5 mm to 6.9 mm. Special seals and
clamping baskets must be used for cables with a sheath diameter greater
than 6.9 mm.
The Tyco Solarlok crimping pliers can be purchased from your sales partner.
