Installation
NT 10000...NT 12000 19

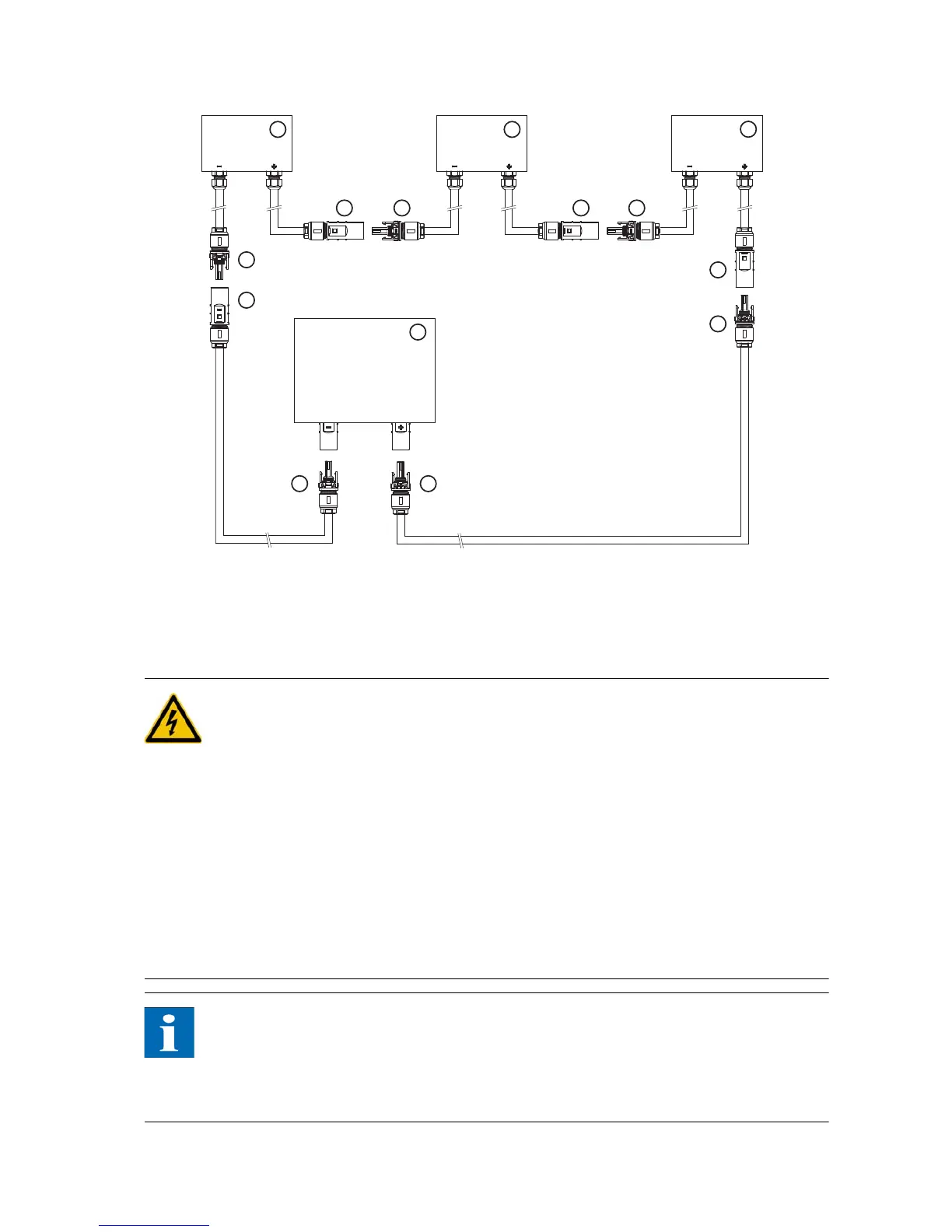

1 Solar module box
2 Negatively coded socket
3 Negatively coded plug
4 Positively coded socket
5 Neutral connector
6 Solar Inverter
Grid connection
DANGER
Danger of death through electric shock!
Touching live parts can result in death.
All electrical work must be carried out by a qualified electrician while obser-
ving the VDE regulations, national and other regulations.
Observe the pin assignment of the AC bayonet connector. An incorrect as-
signment can result in the unit being destroyed.
No consumers may be connected to the supply line from the Solar Inverter to
the mains fuse.
Always disconnect the mains connection first by switching off the correspon-
ding mains fuse and before disconnecting the solar generator side by ope-
ning the DC load break switch.
NOTE
If the voltage on the AC connection exceeds the permissible value due to a long
line length or an insufficient cable cross-section, the Solar Inverter will be dis-
connected from the grid. In power grids with a low output and a high solar ge-
nerator output, this can lead to individual Solar Inverters being switched off and
then on again several times.
1
1
1
6
5
2
5
2
5
4
4
2
2
3
