Supermicro C7Z270-CG User Manual

4-48
Supermicro C7Z270-CG Motherboard User’s Manual
SATA Controller(s)
Select Disabled to disable the onboard SATA Controllers. The settings
are Enabled and Disabled.
SATA Mode Selection
This item selects the mode for the installed SATA drives. The options are
AHCI and Intel RST Premium With Intel Optane System Acceleration.
SATA Controller Speed
Use this option to specify the maximum speed the SATA controller can
support. The options are Default, Gen 1, Gen 2, and Gen 3.
Wake on LAN Enable
Select Enabled to enable the capability to 'wake up' the system through
the Ethernet port. The settings are Enabled and Disabled.
Pcie PII SSC
Use this feature to set the PCIE PII SSC percentage. Select Auto to
keep the hardware default with no BIOS override. The range is from
0.0% to 2.0%. The options are Disabled and Enabled.

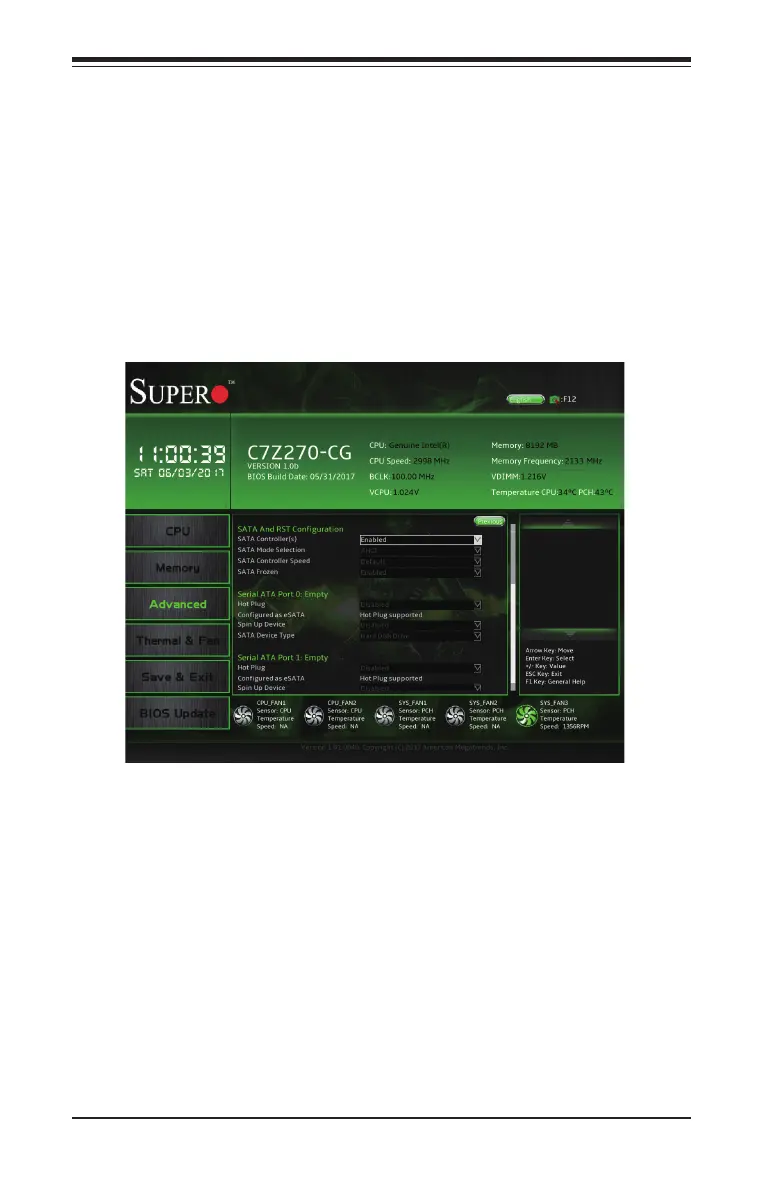

SATA and RST Configuration

Supermicro C7Z270-CG Specifications

General

Form Factor	ATX
Socket	LGA 1151
Chipset	Intel Z270
Memory Slots	4
Max Memory	64GB
Memory Type	DDR4
PCI Express Slots	3
SATA Ports	6
USB Ports	10
USB 3.0 Ports	6
USB 2.0 Ports	4
LAN Chipset	Intel I219V
Video Outputs	HDMI, DisplayPort
CPU	Intel 7th/6th Generation Core i7/i5/i3, Pentium, Celeron processors
Memory Speed	2400/2133 MHz
M.2 Slots	1
LAN	1
Audio	7.1 Channel HD Audio
Audio Codec	Realtek ALC892
