Supermicro C7Z270-CG User Manual

Chapter 2: Installation
2-13

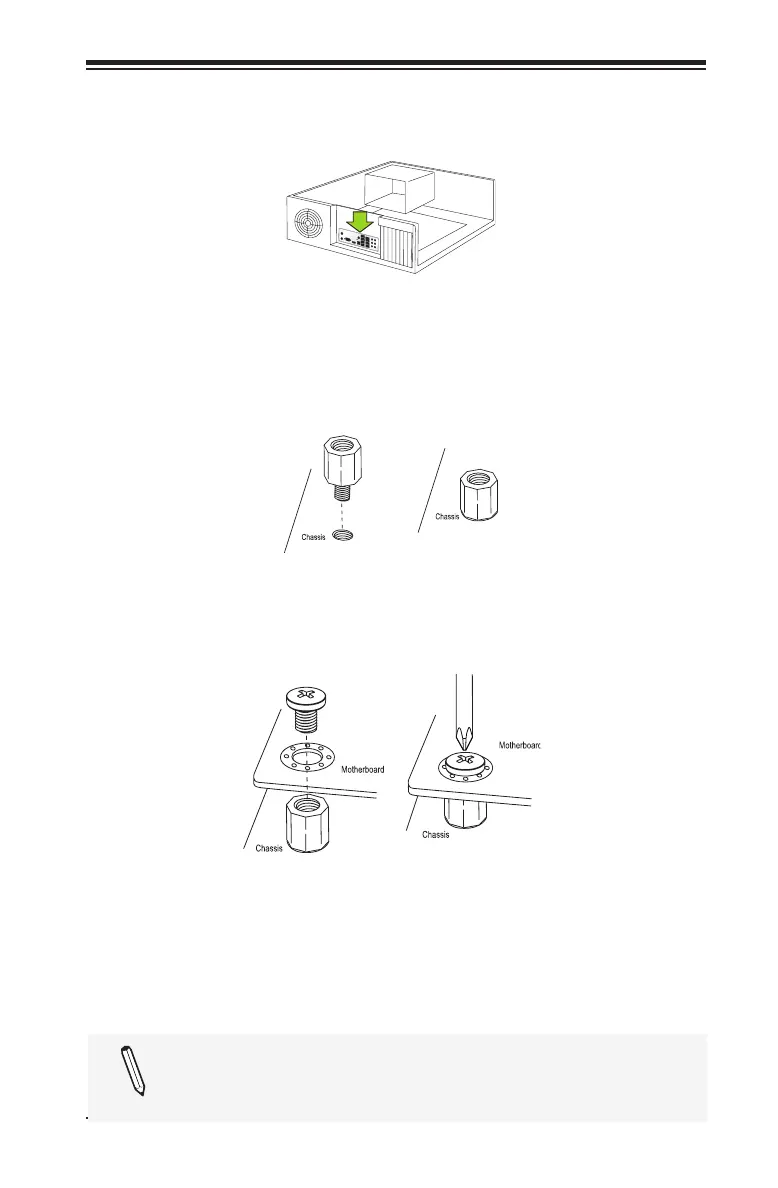

Installing the Motherboard
1. Install the I/O shield into the back of the chassis.
2. Locate the mounting holes on the motherboard. (See the previous
page.)
3. Locate the matching mounting holes on the chassis. Align the
mounting holes on the motherboard against the mounting holes on
the chassis.
4. Install standoffs in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging
other motherboard components.
6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a
mounting hole on the motherboard and its matching mounting hole
on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are for illustration only. Your chassis
or components might look different from those shown in this
manual.

Supermicro C7Z270-CG Specifications

General

Form Factor	ATX
Socket	LGA 1151
Chipset	Intel Z270
Memory Slots	4
Max Memory	64GB
Memory Type	DDR4
PCI Express Slots	3
SATA Ports	6
USB Ports	10
USB 3.0 Ports	6
USB 2.0 Ports	4
LAN Chipset	Intel I219V
Video Outputs	HDMI, DisplayPort
CPU	Intel 7th/6th Generation Core i7/i5/i3, Pentium, Celeron processors
Memory Speed	2400/2133 MHz
M.2 Slots	1
LAN	1
Audio	7.1 Channel HD Audio
Audio Codec	Realtek ALC892
