Supermicro C7Z87 - Memory Support; Memory Population Guidelines

Chapter 2: Installation
2-11
Removing Memory Modules
Reverse the steps above to remove the DIMM modules from the motherboard.
Memory Support
The C7Z87 supports up to 32GB of Unbuffered (UDIMM) DDR3 Non- ECC 1066MH
z/1333MHz/1600MHz/2133MHz(*OC)/2200MHz(*OC)/2400MHz(*OC)/2600MHz(
*OC)/2800MHz(*OC)/3000MHz(*OC) in 4 memory slots. Populating these DIMM
modules with a pair of memory modules of the same type and same size will
result in interleaved memory, which will improve memory performance. Please
refer to the table below.
Note: *OC=Overclocking (not under warranty)
Memory Population Guidelines
Please follow the table below when populating the C7Z87.
DDR3 Unbuffered Non-ECC (UDIMM) Memory
DIMM Slots per
Channel
DIMMs Populat-
ed per Channel
DIMM Type POR Speeds Ranks per DIMM (any
combination)
2 1 Unbuffered
DDR3
1066, 1333, 1600,
2133, 2200, 2400,
2600, 2800, 3000
(See Note Above)
Single Rank, Dual Rank
2 2 Unbuffered
DDR3
1066, 1333, 1600,
2133, 2200, 2400,
2600, 2800, 3000
(See Note Above)
Single Rank, Dual Rank
Notes
•Be sure to use memory modules of the same type, same speed, same
frequency on the same motherboard. Mixing of memory modules of dif-
ferent types and speeds is not allowed.

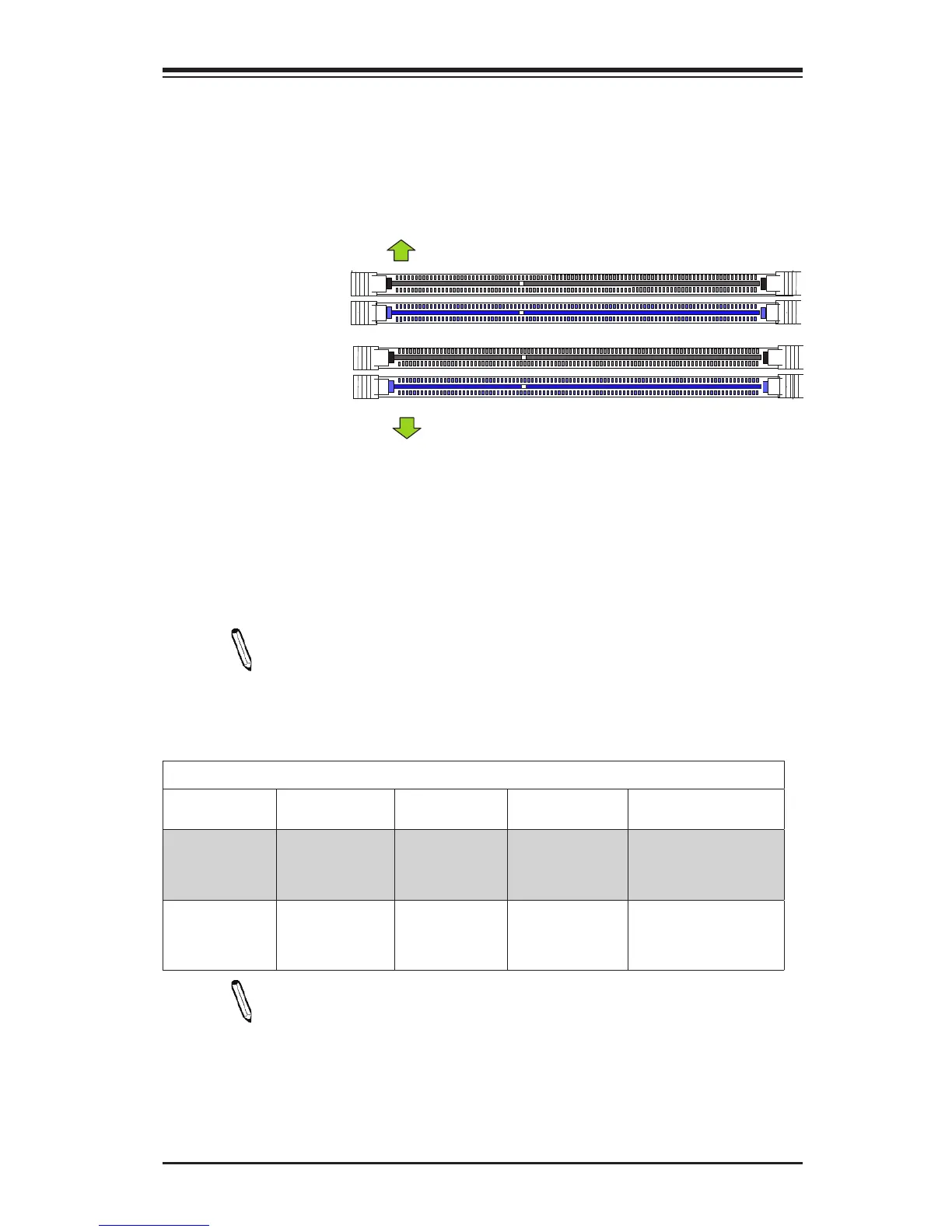

Channel B, Slot 2
(Blue Slot)
Channel B, Slot 1
Channel A, Slot 1
Channel A, Slot 2
(Blue Slot)
Towards the edge of the motherboard
Towards the CPU
