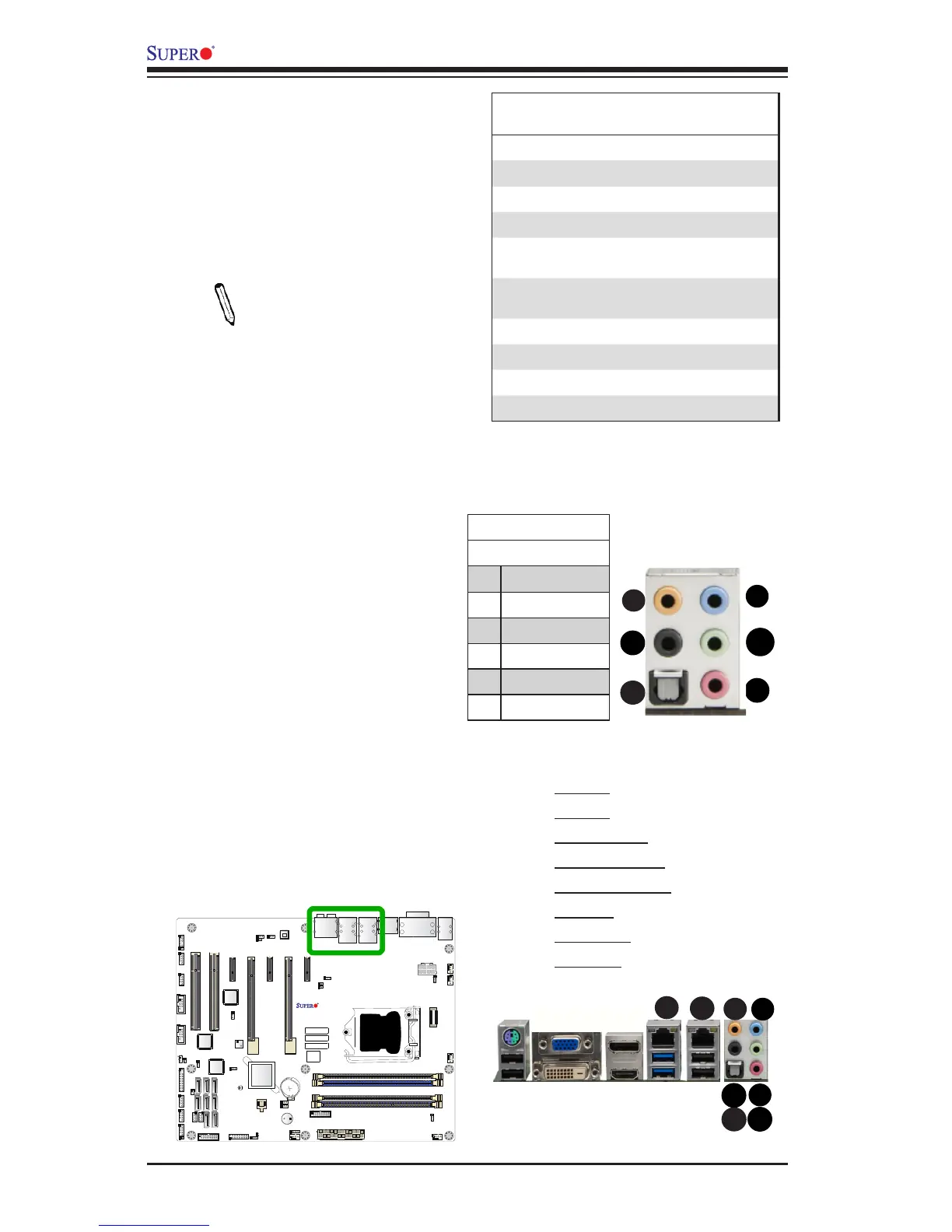

2-18
C7Z87 User’s Manual
G
Ethernet Ports
Two Gigabit Ethernet ports (LAN1/
LAN2) are located next to the
HD Audio Connector on the I/O
Backpanel to provide network con-
nections. These ports accept RJ45
type cables.
Note: Please refer to the
LED Indicator Section for
LAN LED information.
LAN Ports
Pin Denition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Green, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 88 Ground
(NC: No Connection)
A. LAN1
B. LAN2
C. SPDIF_Out
D. Surround_Out
E. CEN/LFE_Out
F. Mic_In
G. Line-Out
H. Line_In
E
C
F
D
Back Panel High Denition
Audio (HD Audio)
This motherboard features a 7.1+2
Channel High Definition Audio
(HDA) codec that provides 10
DAC channels. The HD Audio con-
nections simultaneously supports
multiple-streaming 7.1 sound play-
back with 2 channels of independent
stereo output through the front panel
stereo out for front, rear, center
and subwoofer speakers. Use the
Advanced software included in the
CD-ROM with your motherboard to
enable this function.
(BP) HD Audio
Conn# Signal
A
SPDIF_In/Out
B
Surround_Out
C
CEN/LFE_Out
D
Mic_In
E
Line_Out
F
Line_In
HD Audio
1394 CODE
JLED1
JVR2
JPL1
JBR1
JPL2
JPAC1
JWD1
JPI1
JVR1
JBT1
LV33
JSTBY1
T-SGPIO1
C7Z87
Rev. 1.01
BIOS
LICENSE
JTPM1
JPW2
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
I-SATA0
J1394_2
J1394_1
JL1
JHD_AC1
JWOR1
JSPDIF_OUT
JI2C1
JI2C2
JPW1
MAC CODE
BAR CODE
LED1
SP1
FAN3
FAN2
FAN5
FAN1
FAN4
JD1
SLOT5 PCI-E 2.0 X1
SLOT3 PCI-E 2.0 X1
SLOT1 PCI 33MHz
SLOT2 PCI 33MHz
USB 14/15(3.0)
USB12/13(3.0)
USB8/9
USB 2/3
LAN2 LAN1
HDMI/DP
KB/MOUSE
CPU
USB 0/1
AUDIO FP
DIMMB2
HD AUDIO
USB4/5
USB6/7
JF1
Always populate blue sockets first;
Unbuffered ECC/non-ECC DDR3 DIMM required
SLOT4 PCI-E 3.0 X8 (IN X16)
SLOT7 PCI-E 2.0 X1
COM2
COM1
VGA/DVI
USB10/11(3.0)
SLOT6 PCI-E 3.0 X16
T-SGPIO2
A-SATA0
A-SATA1
Intel PCH
BIOS
JSD1
JPME2
DIMMB1
DIMMA1
DIMMA2
A
E
B
F
H
G
C
D
H
