Chapter 2: Maintenance and Component Installation
Solid State Storage
This motherboard supports an internally mounted solid state storage card by means of an
M.2 slot supporting SATA.
Installing the M.2 Card
1. Access the motherboard and locate the M.2 connector (Figure 1.3, JMD1: M2)
2. Gently insert the M.2 card into the connector.
3. Use a screw to secure the M.2 card to the M2_SRW1 or M2_SRW2 standoff.

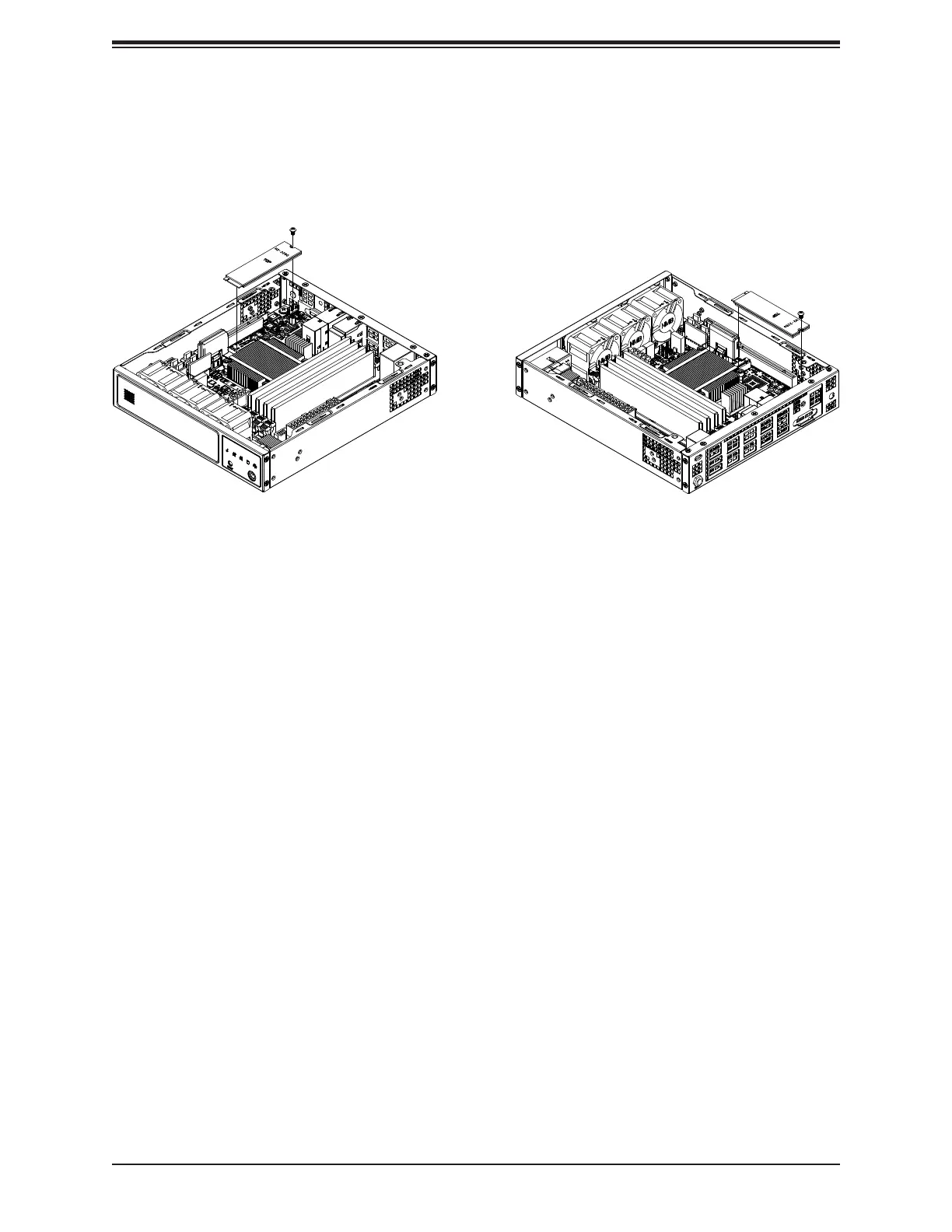

Figure 2-2. Installing an M.2 Expansion Card
