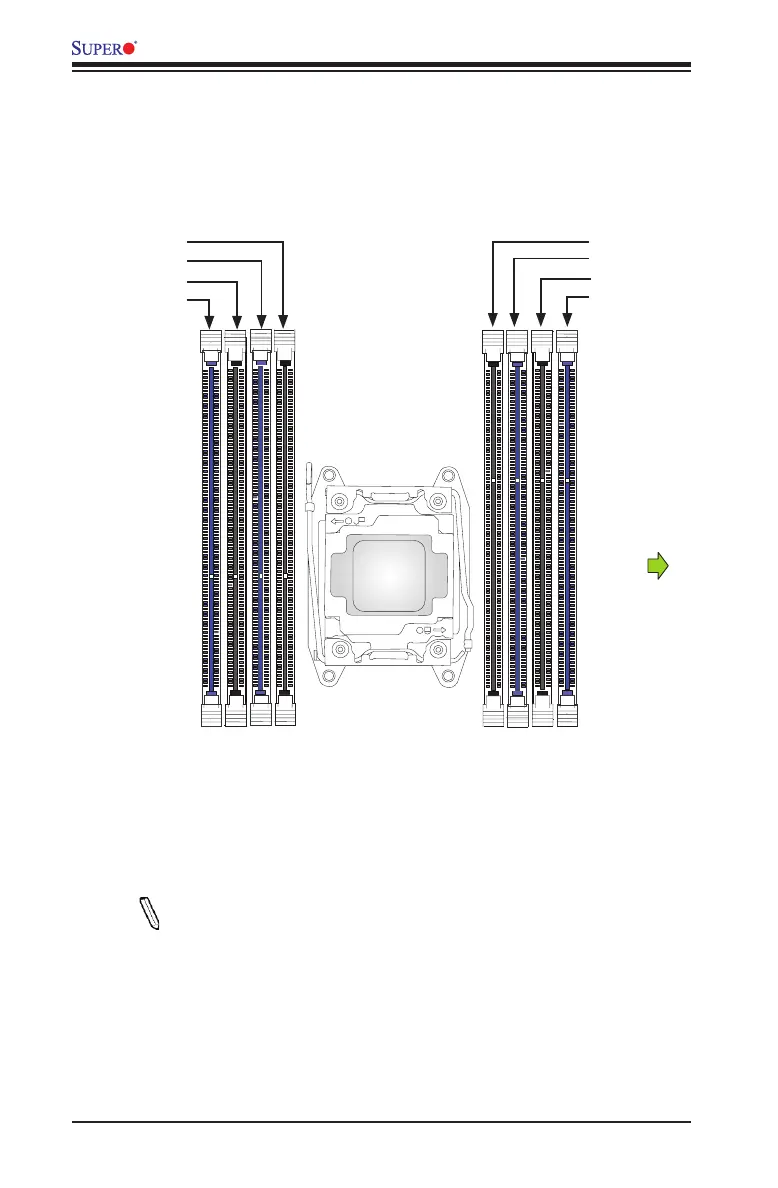

Removing Memory Modules
Reverse the steps above to remove the DIMM modules from the motherboard.
Memory Support
The X10SRH-CF/CLN4F supports DDR4 memory up to 256GB RDIMM or 512GB
LRDIMM at 2400 MHz (max.) in eight (8) DIMM slots. Populating these DIMM
modules with a pair of memory modules of the same type and same size will
result in interleaved memory, which will improve memory performance. Please
refer to the table below:
Notes:
• Be sure to use memory modules of the same type, speed, and capacity
on the same motherboard. Mixing of memory modules of different types
and speeds is not allowed.
• Due to memory allocation to system devices, the amount of memory that
remains available for operational use will be reduced when 4 GB of RAM
is used. The reduction in memory availability is disproportional. See the
following table for details.
Memory Population
Guidelines
Please follow the table below when
populating the X10SRH-CF/CLN4F.
DDR4 Unbuffered ECC (UDIMM) Memory
DIMM Slots per
Channel
DIMMs Populat-
ed per Channel
DIMM Type POR Speeds Ranks per DIMM (any
combination)
2 1 Unbuffered
DDR4
1600 Single Rank, Dual Rank
2 2 Unbuffered
DDR4
1600 Single Rank, Dual Rank
1
1
DIMMA1
DIMMA2
DIMMB1
DIMMB2
DIMMC1
DIMMC2
DIMMD1
DIMMD2
Edge of the motherboard
