Supermicro X11SSL-CF User Manual

53
Chapter 2: Installation

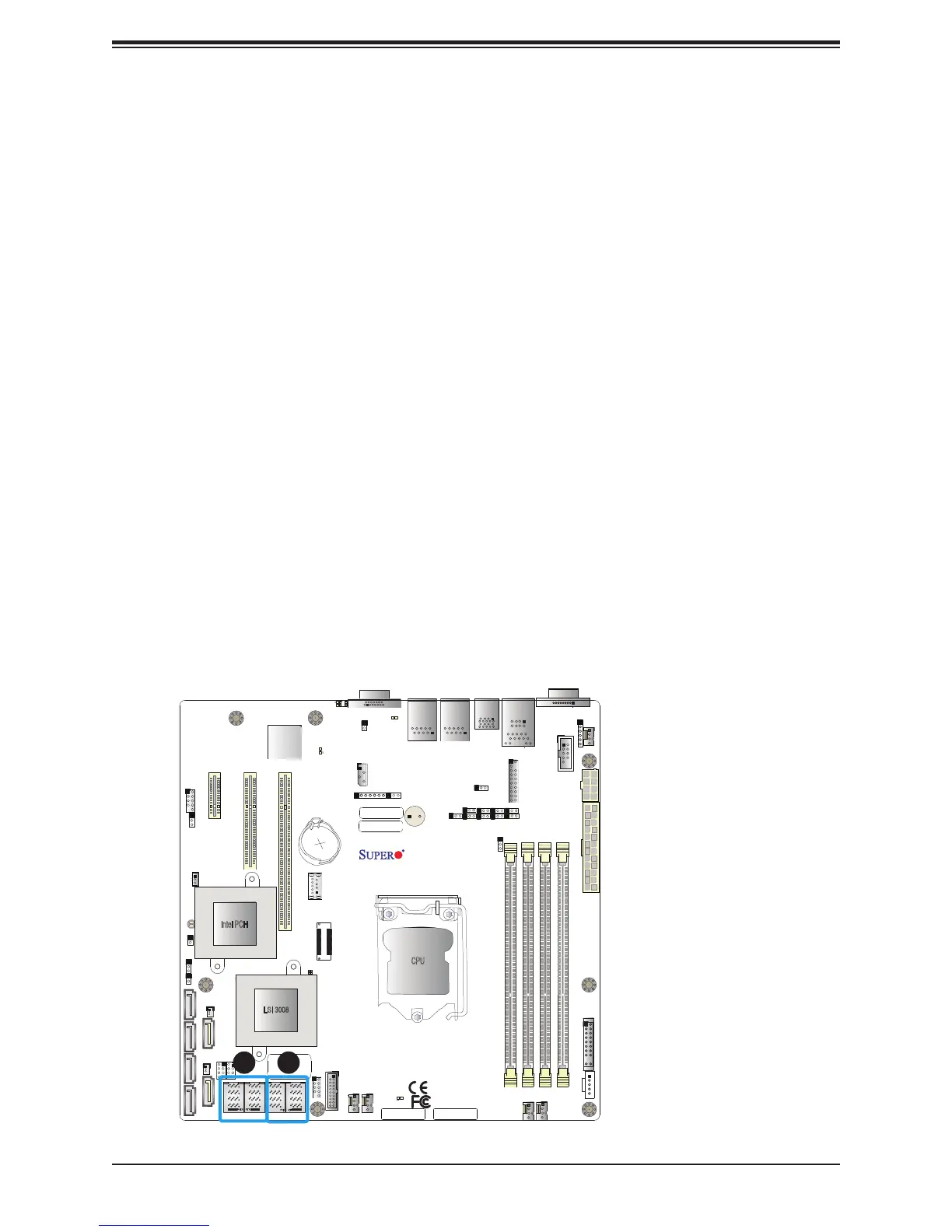

Mini-SAS HD Connections (X11SSL-CF only)
Two mini-SAS HD ports are located at JSAS1 on the X11SSL-CF motherboard. These ports
support 8x SAS 12Gb/s and allow for the connection of smaller drives than regular SAS
connectors.
NVM Express Connections (X11SSL-nF only)
Two NVM Express ports are located at JNVME1 on the X11SSL-nF motherboard. These NVM
ports provide PCI Express 3.0 connections and provide high-speed low-latency connections
directly from the CPU to NVMe Solid State Drives (SSD). This greatly increases SSD data
throughput performance and signicantly reduces PCI-E latency by simplifying driver/software
requirements.
JPWR2
JPWR1
BMC
Intel PCH
COM2
IPMI_LAN
USB 0/1
COM1
FAN4
JPWR2
USB 6/7
(3.0)
LAN 1
LAN 2
VGA
JTPM1
JPL1
JPL2
JD1
LED BMC
JIPMB1
JOH1
LE1
JUIDB1
USB 8 (3.0)
LED S1
LED PWR
FAN3
FANA
USB 4/5
USB 9/10 (3.0)
JSD1
I-SGPIO2 I-SGPIO1
JSD2
JL1
JBT1
JSTBY1
JPS1
X11SSL-CF_(-nF)
REV:1.01
Designed in the USA
MAC CODE
SAS CODE
SP1
JPG1
JBR1
JPME2
JPB1
JI2C2
SP1
JI2C1
JF1
JPI2C1
FAN1
FAN2
BAR CODE
IPMI CODE
USB 2/3
PCH SLOT4 PCI-E 3.0 x1
PCH SLOT5 PCI-E 3.0 x4(in x8)
CPU SLOT6 PCI-E 3.0 x8(in x16)
I-SATA5
I-SATA1
I-SATA4
I-SATA3 I-SATA2
I-SATA0
JWD1
DIMMB2 DIMMB1 DIMMA2 DIMMA1
JSAS1
JNVME1
LSI 3008
CPU
BT1
MEGERAC
LICENSE
1. Mini-SAS HD (X11SSL-
CF only)
2. NVMe (X11SSL-nF only)
1 2
