Chapter 2: Installation
2-13
X8DTU/-F
GLAN Ports
Pin Defi nition
Pin# Defi nition
9 P2V5SB 18 SGND
10 TD0+ 19 Act LED
11 TD0- 20 P3V3SB
12 TD1+ 21 Link 100 LED
(Yellow, +3V3SB)
13 TD1- 22 Link 1000 LED
(Yellow, +3V3SB)
14 TD2+ 23 Ground
15 TD2- 24 Ground
16 TD3+ 27 Ground
17 TD3- 28 Ground
(NC: No Connection)

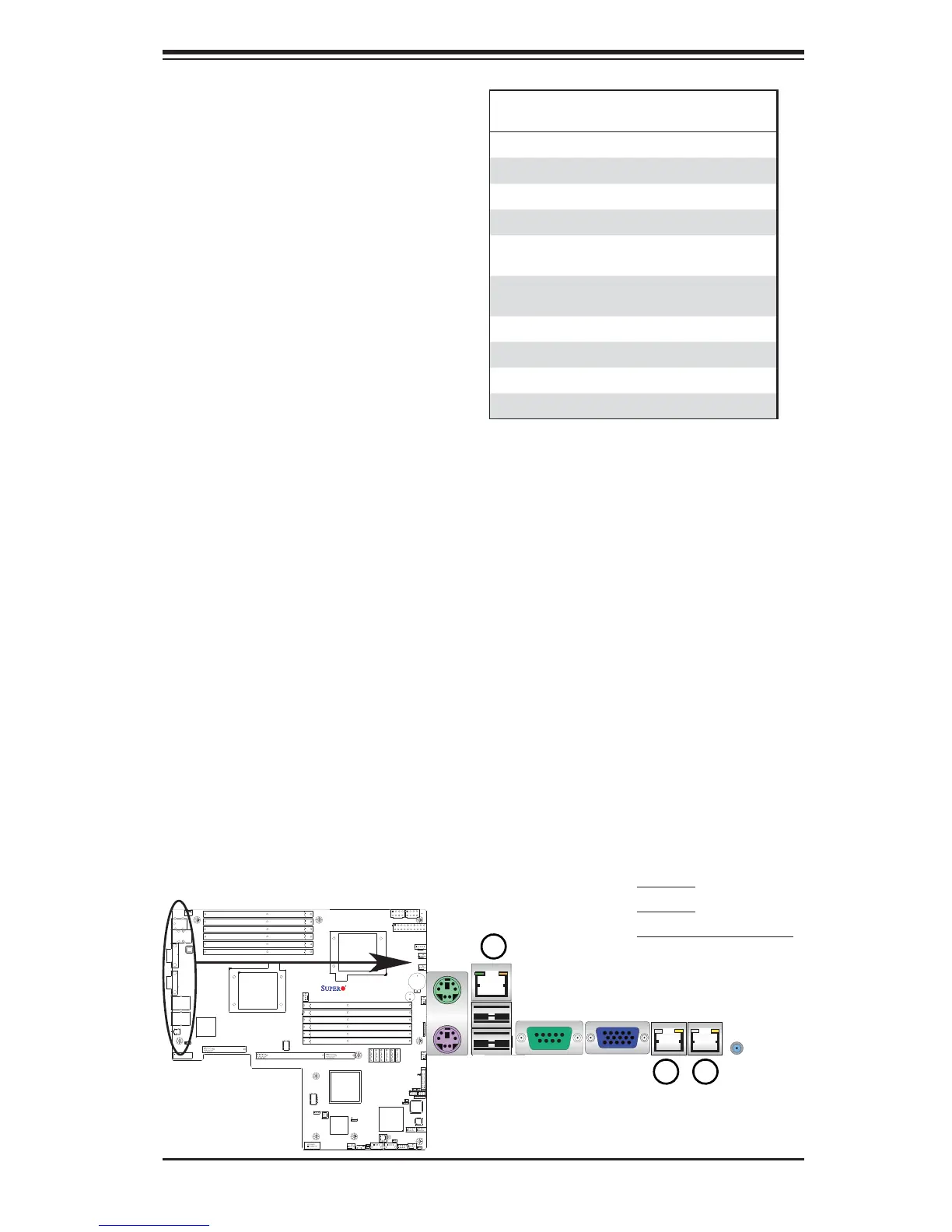

1. LAN 1
2. LAN 2
3. IPMI-LAN (X8DTU-F)
Gigabit LAN (Ethernet) Ports
Two Gigabit Ethernet ports (LAN1/2)
are located next to the VGA port on
the IO backplane. Additionally, an
IPMI_Dedicated_LAN with full KVM
support is located above the USB
Ports 1/2 on the X8DTU-F. These
ports accept RJ45 type cables.
(Note: Please refer to the LED
Indicator Section for GLAN LED
information.)
