Supermicro X8DTU - Onboard Indicators; GLAN Leds; Ipmi_Dedicated LAN Leds (X8 DTU-F)

2-32
X8DTU/X8DTU-F User's Manual
KB /MS
Fan8
(CPU2 Fan)
IPMI LAN
USB 0/1
COM1
PHY
VGA
LAN1
LAN2
LAN CTRL
BMC CTRL
BIOS
COM2
USB6
USB7
USB4/5
(ME Rec.)
JTAG Of CPLD
ME Mode
JPI2C
P2-DIMM3A
P2-DIMM3B
P2-DIMM2A
P2-DIMM2B
P2-DIMM1A
P2-DIMM1B
P1-DIMM1B
P1-DIMM1A
P1-DIMM2B
P1-DIMM2A
P1-DIMM3B
P1-DIMM3A
LE2
JUIDB
JPL1
J10
UIOP
SXB2: PCI-E 2.0 x 8
SXB1: PCI-E 2.0 x 16
SXB3: PCI-E 2.0 x 8 in x 4 Slot
J1
J2
J3
JPB
JPG1
Fan6
IPMB
JI2C1
JI2C2
JBT1
J13
J14
JP5
J12
Fan5
JL1
USB2/3 JLPC1
CPU1
CPU2
Intel I5520
North Bridge
Intel ICH10R
South Bridge
T-SGPIO2
T SGPIO1
J17
JPRST1
JWD
JF1
JOH1
JP3
LE1
Fan4
Fan3
SP1
Buzzer
JBAT1
Battery
Fan2
Fan1
JPW1
JPW3
JPW2
JD1
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
I-SATA0
X8DTU/-F
Fan7(CPU1 Fan)
FP CTRL
CPLD
PWRLED/SPK

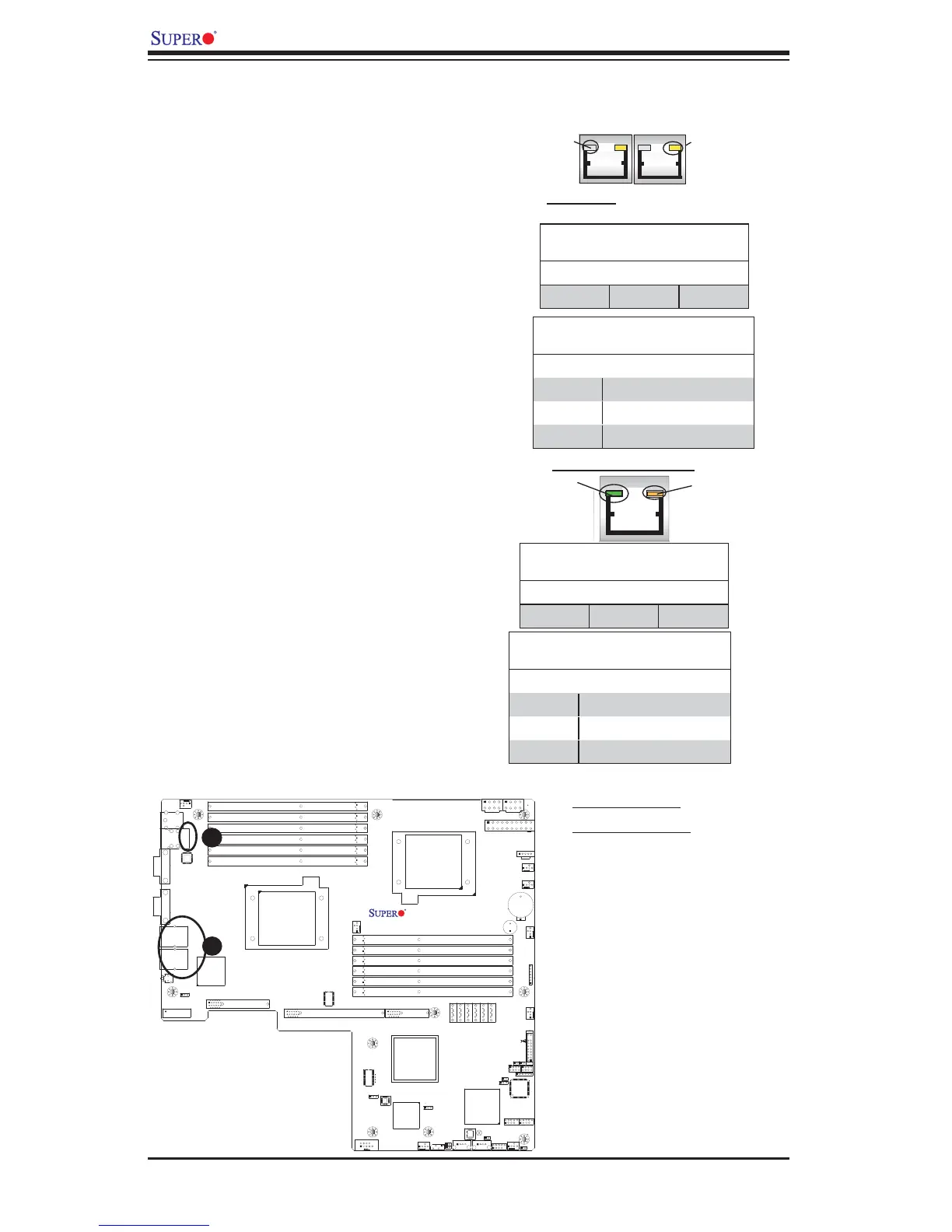

GLAN LEDs
There are two GLAN ports (LAN1/LAN2)
on the motherboard. Each Gigabit Ether-
net LAN port has two LEDs. The yellow
LED indicates activity, while the Link LED
may be green, amber or off to indicate the
speed of the connection. See the tables
at right for more information.
2-8 Onboard Indicators
A
B
A.LAN 1/2 LEDs
B. IPMI_LAN LED
Activity
LED
GLAN Link Indicator
LED Settings
LED Color Defi nition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
Link
LED
GLAN Activity Indicator
LED Settings
Color Status Defi nition
Yellow Flashing Active
Rear View (when facing the
rear side of the chassis)
IPMI_Dedicated LAN LEDs (X8DTU-F)
In addition to LAN1 and LAN2, the
X8DTU-F has an IPMI_Dedicated LAN
located on the IO Backpanel. The amber
LED indicates activity, while the Link LED
may be green, amber or off to indicate the
speed of the connection. See the tables
at right for more information.
Activity
LED
Link
LED
IPMI_LAN (X8DTU-F)
GLAN Link Indicator
LED Settings
LED Color Defi nition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
GLAN Activity Indicator
LED Settings
Color Status Defi nition
Amber Flashing Active
