Chapter 2: Installation
2-15
X8DTU/-F

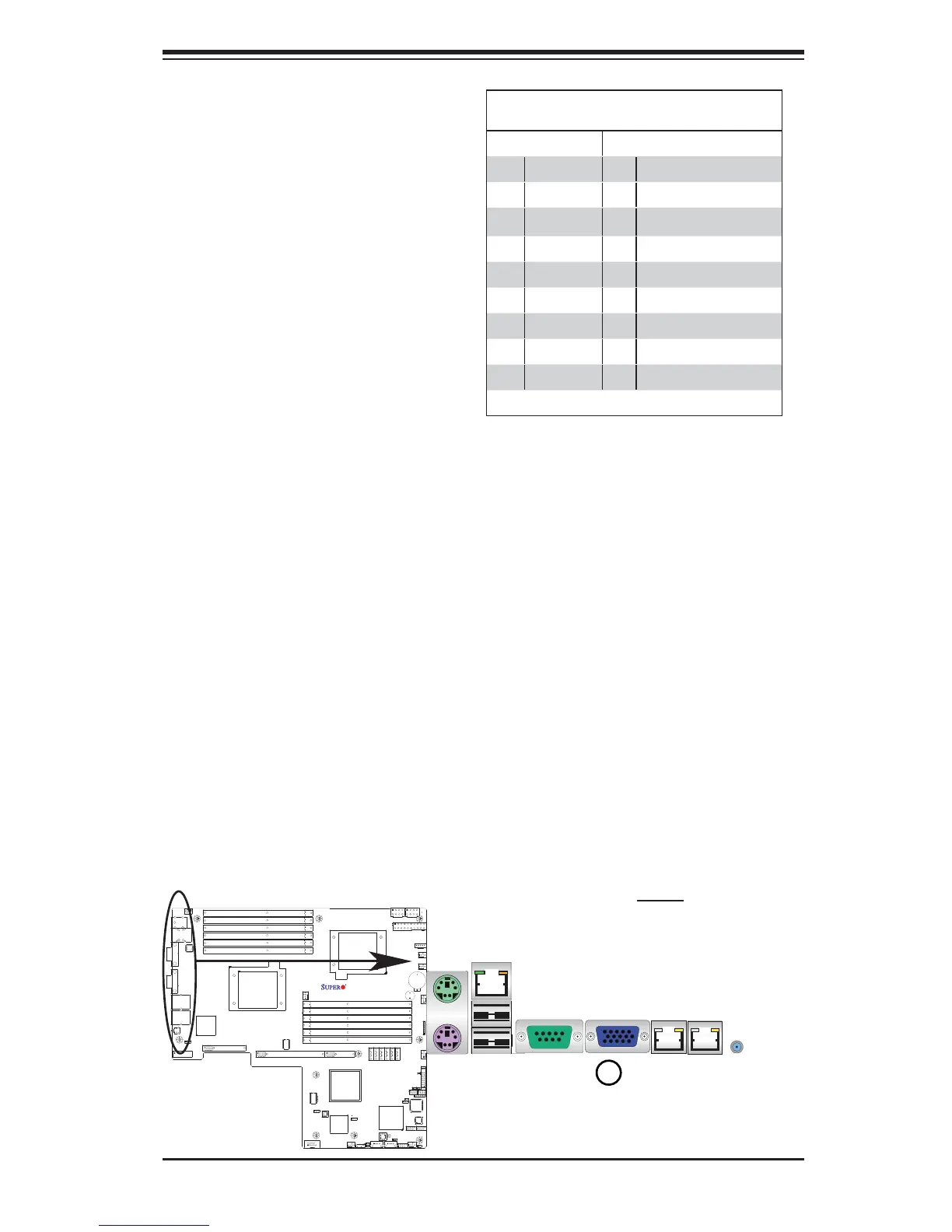

VGA Connector
A VGA connector is located next to
COM Port1 on the IO backplane. This
connector provides video and CRT
display. Refer to the board layout
below for the location.
VGA/CRT Pin
Defi nitions
Pin# Defi nition Pin# Defi nition
1 Red 10 Ground
2 Green 11 MS0
3 Blue 12 MS1: SDA (DDC Data)
4 MS2 13 HSYNC
5 Ground 14 VSYSNC
6 Ground 15 MS3: SCL (DDC CLK)
7 Ground 16 Case
8 Ground 17 Case
9NC
NC= No Connection
1. VGA
