Supermicro X8DTU - Front Control Panel

Chapter 2: Installation
2-17
Power Button
1
NIC1 (Link) LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
3.3V
3.3V SB
Ground
Ground
1920
3.3 V
Key
Ground
NMI
PWR Fail LED
NIC2 (Link) LED
OH/Fan Fail/PWR
Fail/Blue_UID LED
Red_LED_Cathode
(UID)/5V SB
NIC1 (Activity) LED
NIC2 (Activity) LED
Key
X8DTU/-F
3. Front Control Panel

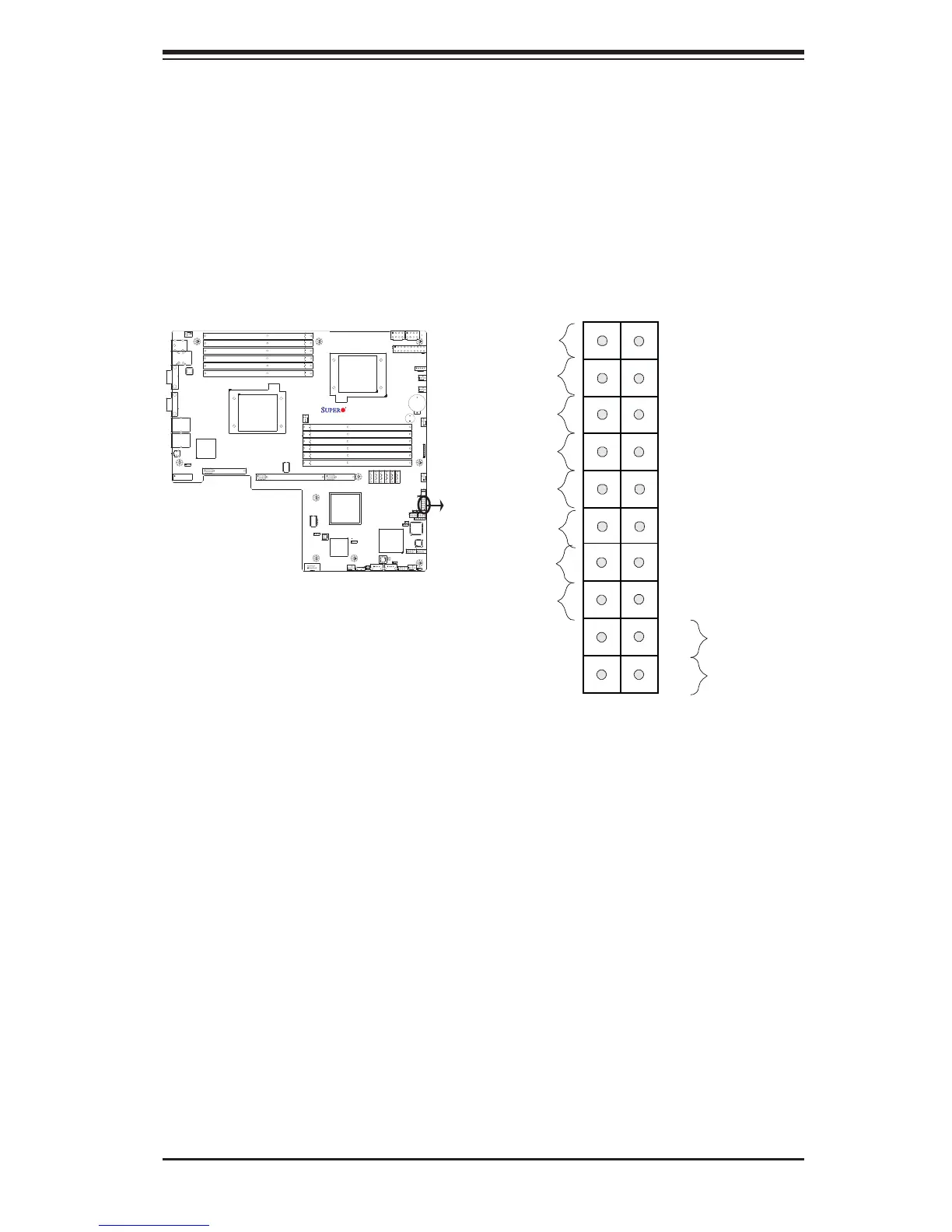

JF1 contains header pins for various buttons and indicators that are normally lo-
cated on a control panel at the front of the chassis. These connectors are designed
specifi cally for use with Supermicro server chassis. See the fi gure below for the
descriptions of the various control panel buttons and LED indicators. Refer to the
following section for descriptions and pin defi nitions.
JF1 Header Pins
