P8SC8/P8SCi User's Manual
IMPORTANT: Always connect the power cord last and always remove it
before adding, removing or changing any hardware components. Make
sure that you install the processor into the CPU socket before you install the
CPU heatsink.
!

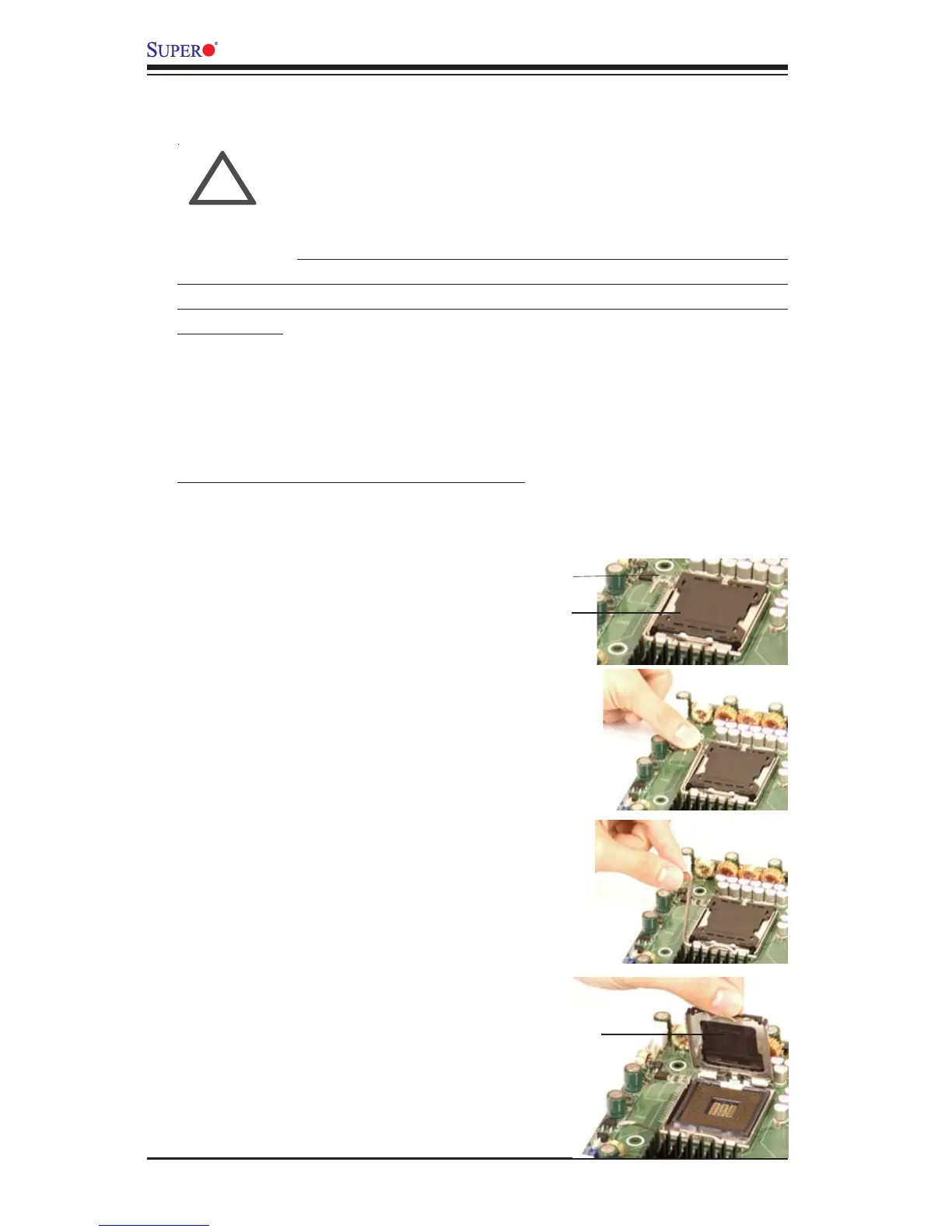

2-2 LGA775 Processor and Heatsink Fan Installation
When handling the processor package, avoid placing
direct pressure on the label area of the fan.
Installation of the LGA775 Processor
1. Press the socket lever to
release the load plate that covers
the CPU socket from its locking
position.
New CPU Socket (w/
plastic cap on)
Socket Lever
2. Carefully lift the socket lever up
to open the load plate.
Load Plate
Load Plate
