Chapter 4: BIOS
4-7

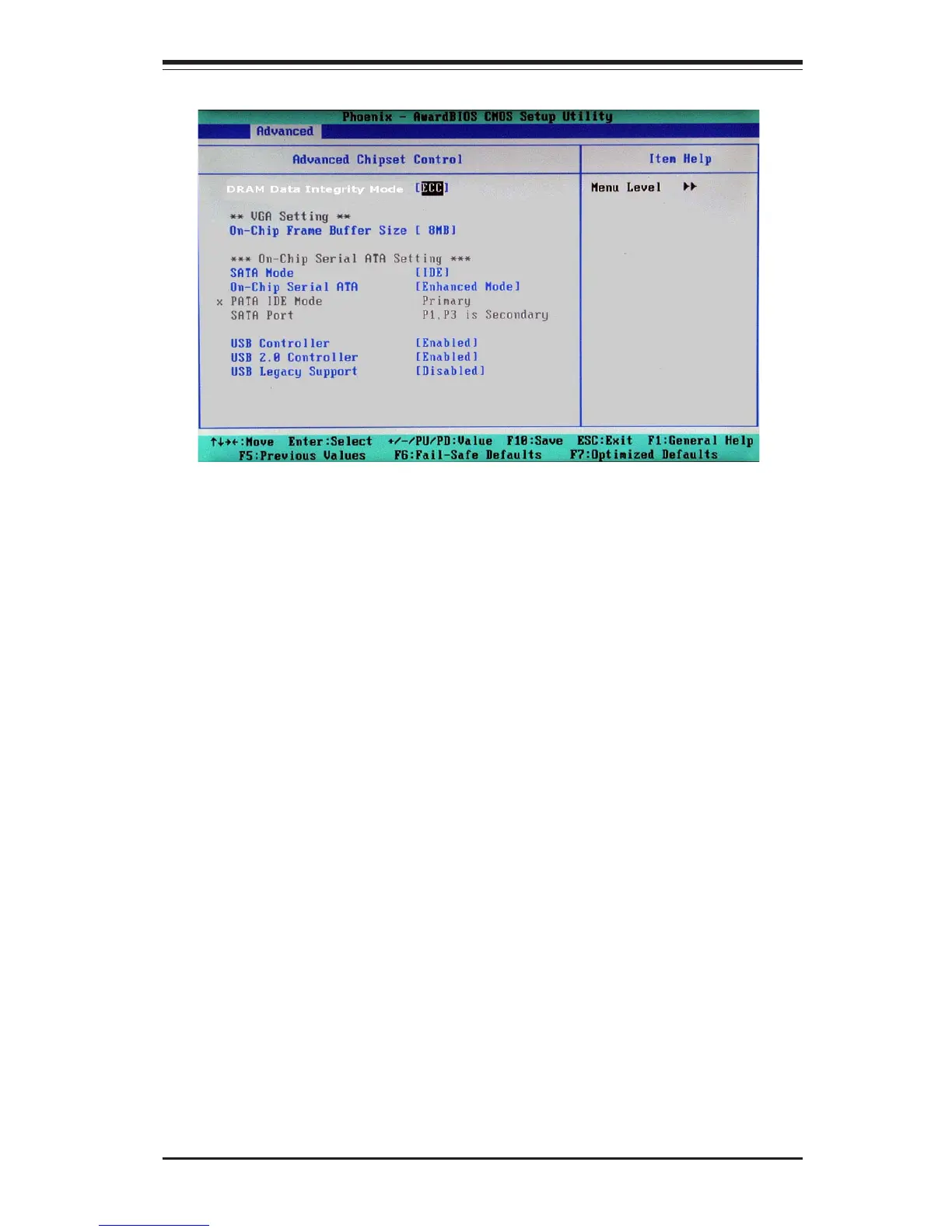

4-4.2 Advanced Chipset Control
DRAM Data Integrity Mode
If enabled, this feature allows the data stored in the DRMA memory to
be integrated for faster data processing. The options are ECC and Non-
ECC.
On-Chip Frame Buffer Size
This setting allows you to set On-Chip Frame Buffer Size. The options
are "1 MB" and "8 MB."
SATA Mode
This feature allows you to select the channel for SATA mode. The
options are "IDE", "RAID" and "AHCI (-Advanced Host Controller
Interface)."
On-Chip Serial ATA
Select "Disabled" to disable the SATA Controller. Select "Auto" to allow
the BIOS to configure the SATA Controller automatically. Select
"Combined Mode" to use PATA and SATA Combined Mode. The maximum
of 2 IDE drives in each channel is allowed. Select "Enhanced Mode" to
enable both SATA and PATA. This mode will support up to 6 IDE drives.
Select "SATA Only" to allow SATA to operate in "Legacy Mode".
To Next Page
