Chapter 2: Installation
2-11
Removing Memory Modules
Reverse the steps above to remove the DIMM modules from the motherboard.
Memory Support
The X10SAE supports up to 32GB of Unbuffered (UDIMM) DDR3 ECC/Non-ECC
1600/1333/1066 MHz in 4 memory slots. Populating these DIMM modules with a
pair of memory modules of the same type and same size will result in interleaved
memory, which will improve memory performance. Please refer to the table below:
Memory Population Guidelines
Please follow the table below when populating the X10SAE.
Max Memory
Possible
1Gb DRAM
Technology
2Gb DRAM
Technology
4Gb DRAM
Technology
Single Rank
UDIMM
4GB (4x1GB
DIMMs)
8GB (4x2GB
DIMMs)
16GB (4x4GB
DIMMs)
Dual Rank
UDIMMs
8GB (4x2GB
DIMMs)
16GB (4x4GB
DIMMs)
32GB (4x8GB
DIMMs)
Notes
•Be sure to use memory modules of the same type, same speed, same
frequency on the same motherboard. Mixing of memory modules of dif-
ferent types and speeds is not allowed.
•Due to memory allocation to system devices, the amount of memory that
remains available for operational use will be reduced when 4 GB of RAM
is used. The reduction in memory availability is disproportional. See the
following table for details.

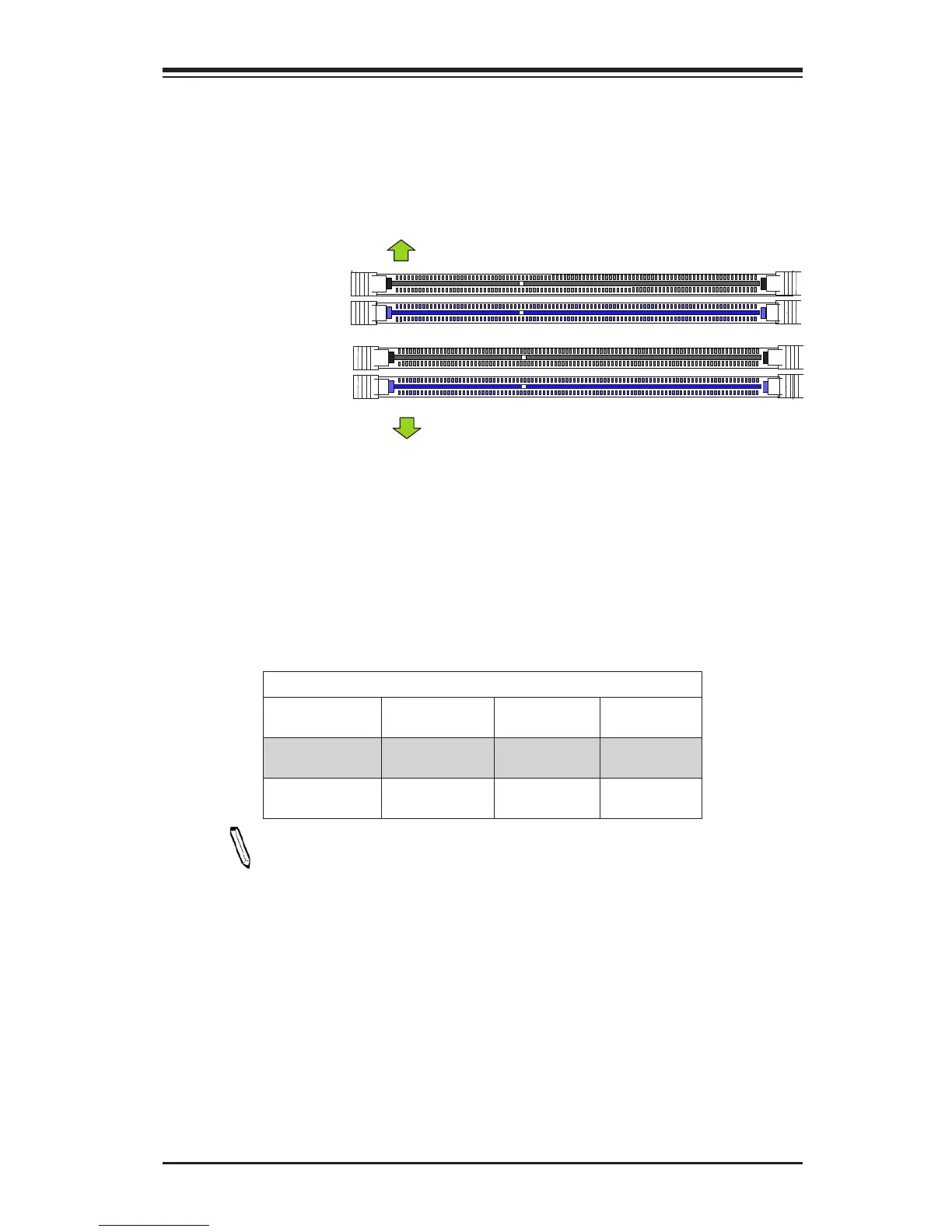

Channel B, Slot 2
(Blue Slot)
Channel B, Slot 1
Channel A, Slot 1
Channel A, Slot 2
(Blue Slot)
Towards the edge of the motherboard
Towards the CPU
