Supero X10SAE - Front Accessible Audio Header; HDMI;DP Port

Chapter 2: Installation
2-19
X10SAE
Rev. 1.01
Front Accessible Audio Header
A 10-pin Audio header is also located on the
motherboard. This header allows you to use
the onboard sound for audio playback. Connect
an audio cable to the audio header to use this
feature. See the table at right for pin denitions
for the header.
10-in Audio
Pin Denitions
Pin# Signal
1 Microphone_Left
2 Audio_Ground
3 Microphone_Right
4 Audio_Detect
5 Line_2_Right
6 Ground
7 Jack_Detect
8 Key
9 Line_2_Left
10 Ground

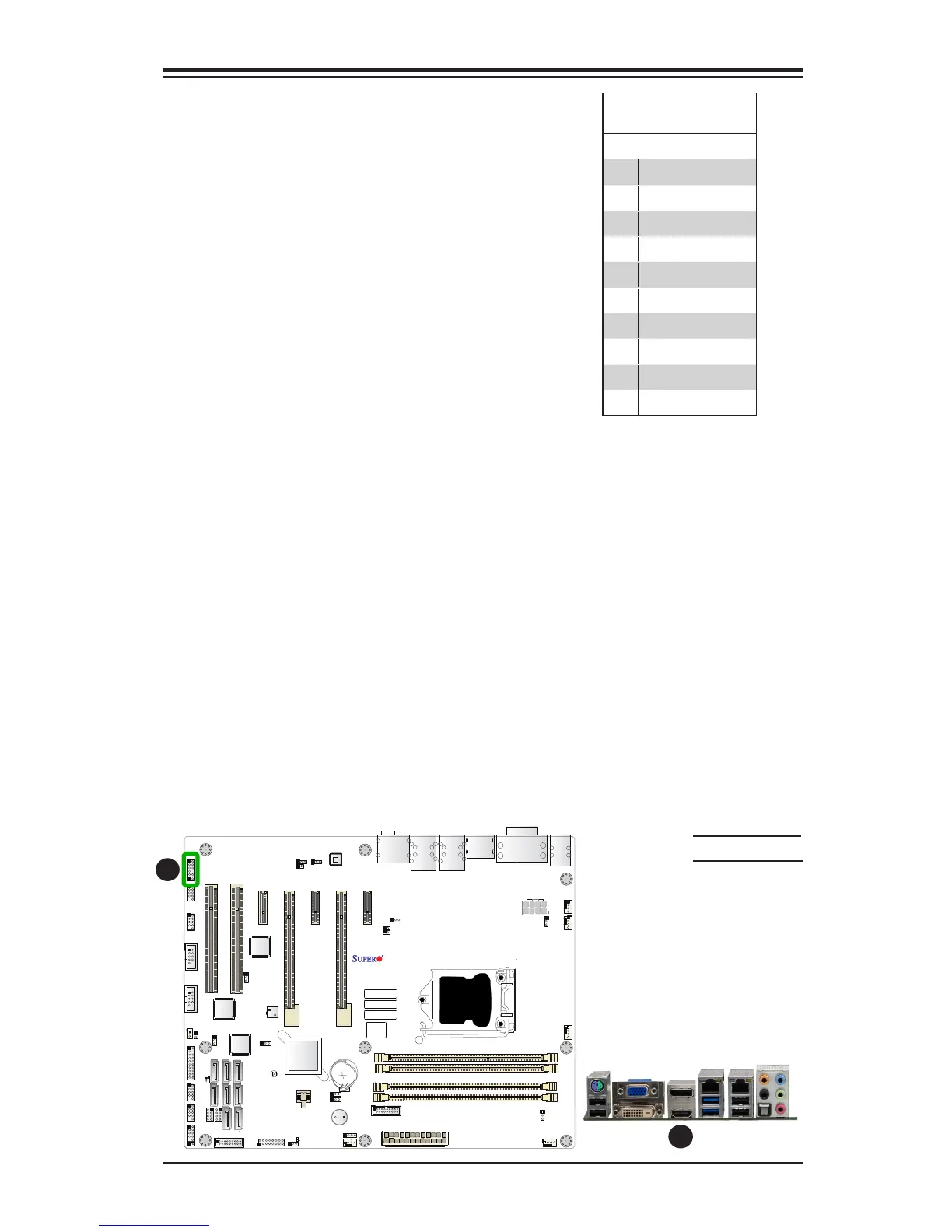

A
A. Audio Header
B. HDMI/DP Port
HDMI/DP Port
One HDMI (High-Denition Multimedia In-
terface)/DP port is located next to the VGA
port on the I/O backpanel. This connector is
used to display both high denition video and
digital sound through an HDMI/DP-capable
display, using a single HDMI/DP cable (not
included).
B
