X10SAE Jumpers
Jumper Description Default
JBR1
JBT1 CMOS Clear (See Chpt. 2)
JI
2
C1/JI
2
C2 SMB to PCI Slots Off (Disabled)
JHD_AC1 High Denition (HD) Audio Enable Pins 1-2 (Enabled)
JPAC1 Front Panel Audio Enable Pins 1-2 (Enabled)
JPI1 1394_1/1394_2 Enable Pins 1-2 (Enabled)
JPL1/JPL2 LAN1/LAN2 Enable Pins 1-2 (Enabled)
JPME2 Management Enigne (ME) Manufacture Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Enable Pins 2-3 (NMI)
X10SAE Headers/Connectors
Connector Description
1394_1/2 1394 Connectors 1/2
Audio FP Front Panel Audio Header

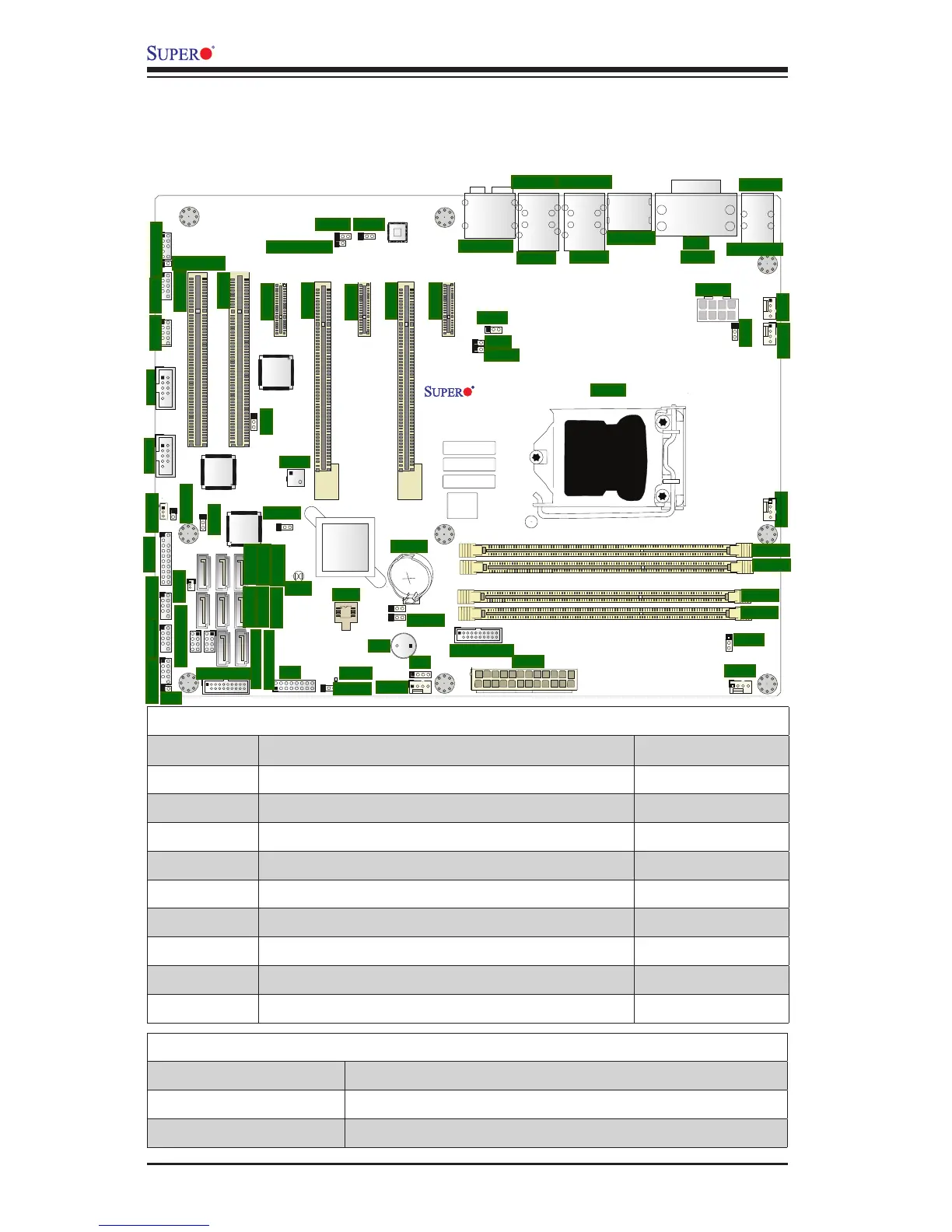

X10SAE Quick Reference
AUDIO FP
JPAC1
JSPDIF_OUT
COM4
COM1
LV33
JWOR1
USB 4/5
USB 8/9
JL1
JD1
JLED1
BIOS
JF1
FAN3
LED1
FAN2
JSD1
JPW1
JVR2
FAN1
JVR1
JPW2
KB/MOUSE
USB 0/1
VGA
DVI
HDMI/DP
LAN 1
USB 10/11
LAN 2
USB 2/3
HD AUDIO
JI2C2
JPL2
T-SGPIO 0/1
JHD_AC1
SLOT1
SP1
CPU
JTPM1
JBT1
USB3.0 12/13
SLOT7
JI2C1
FAN4
I-SATA0
FAN5
JPL1
DIMMA1
DIMMA2
DIMMB1
DIMMB2
USB3.0 14/15
A-SATA0 (3.0)
Battery
USB 6/7
I-SATA1
SLOT6
SLOT5
SLOT4
SLOT3
SLOT2
1394_2
1394_1
COM2
JSTBY1
JWD1
JPI1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
JPME2
JBR1
A-SATA1 (3.0)
