Supero X10SAE - Spdif_Out (JSPDIF_OUT); T-SGPIO 1;2 Headers

2-30
X10SAE User’s Manual
1394 CODE
JLED1
JVR2
JPL1
JBR1
JPL2
JPAC1
JPME2
JWD1
JPI1
JVR1
JBT1
LV33
JSTBY1
JSD1
T-SGPIO1
X10SAE
Rev. 1.01
BIOS
LICENSE
JTPM1
JPW2
I-SATA1
I-SATA2
I-SATA3
I-SATA5
I-SATA4
J1394_2
J1394_1
JL1
JHD_AC1
JWOR1
JSPDIF_OUT
JI2C1
JI2C2
JPW1
MAC CODE
BAR CODE
LED1
SP1
FAN3
FAN2
FAN5
FAN1FAN4
JD1
SLOT5 PCI-E 2.0 X1
SLOT3 PCI-E 2.0 X1
SLOT1 PCI 33MHz SLOT2 PCI 33MHz
USB 14/15(3.0)
USB12/13(3.0)
USB8/9
USB 2/3
LAN2 LAN1
HDMI/DP
KB/MOUSE
CPU
/CPU FAN
USB 0/1
AUDIO FP
DIMMB1
DIMMB2
HD AUDIO
USB4/5
USB6/7
DIMMA1
DIMMA2
JF1
Always populate blue sockets first;
Unbuffered ECC/Non-ECC DDR3 DIMM required
SLOT4 PCI-E 3.0 X8 (IN X16)
SLOT6 PCI-E 3.0 X16
SLOT7 PCI-E 2.0 X1
COM2
COM1
VGA/DVI
USB10/11(3.0)
T-SGPIO2
A-SATA0
A-SATA1
BIOS
Intel PCH
I-SATA0

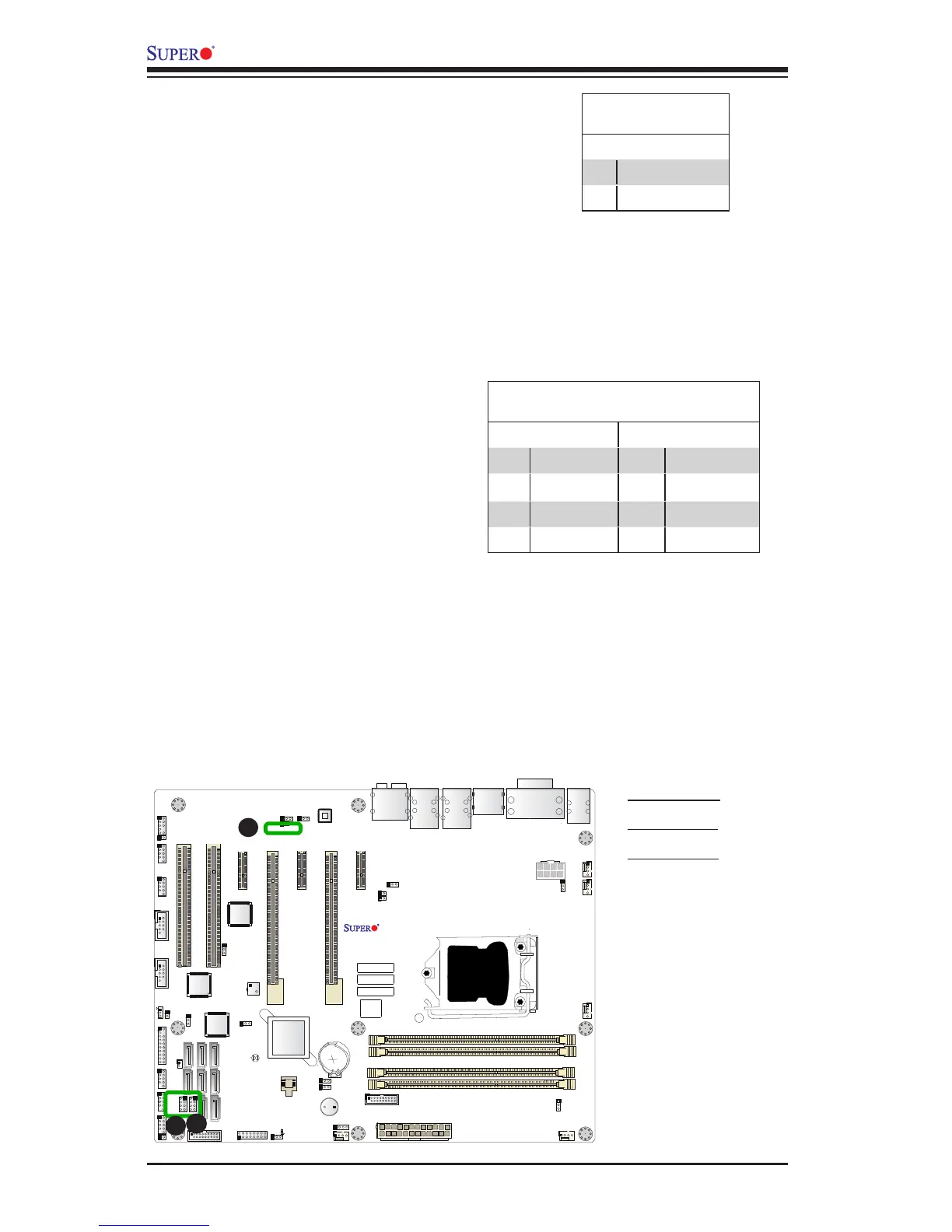

A. SPDIF_Out
B. T-SGPIO 1
C. T-SGPIO 2
SPDIF_Out (JSPDIF_OUT)
The SPDIF Out (JSPDIF_OUT) is
used for digital audio. You will also
need the appropriate cable to use
these features.
SPDIF_Out
Pin Denitions
Pin# Denition
1 S/PDIF_Out
2 Ground
C
A
B
T-SGPIO 1/2 Headers
Two Serial-Link General Purpose
Input/Output headers (T-SGPIO 1/2)
are located on the motherboard to en-
hance system performance. See the
table on the right for pin denitions.
Note: NC= No Connection
T-SGPIO
Pin Denitions
Pin# Denition Pin Denition
1 NC 2 NC
3 Ground 4 Data
5 Load 6 Ground
7 Clock 8 NC
