Supero X10SLM-F User Manual

Chapter 2: Installation
2-19
FAN2
JP9
SW1
T-SGPIO1
JSTBY1
JIPMB1
JPW2
JSD1
LED3 LED2
JD1
LED5
LED1
JPI2C1
BT1
JPW1
JTPM1
FANA
FAN3
FAN1
FAN2
FAN4
JPL1
JPL2
JPME2
JWD1
JPG1
JBR1
JPME1
J19
J18
J7
JVR1
JI2C1
JI2C2
JOH1
JP8
JL1
JP2
JP1
JP7
USB 3.0-0
USB 3.0-1
USB 3.0-2/3
VGA
LAN2
LAN1
USB4/5
USB6/7
IPMI_LAN
COM2
COM1
P1-DIMMB1
P1-DIMMB2
P1-DIMMA2
P1-DIMMA1
PCH SLOT4 PCI-E 2.0 X4(IN X8)
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT6 PCI-E 3.0 X8(IN X16)
JF1
I-SATA4
I-SATA3
I-SATA5 I-SATA2
I-SATA1
I-SATA0
USB8/9
JRK1
T-SGPIO2
JPB1
X10SLM-F/X10SLL(-F/SF/S)
Rev. 1.02
BMC FW
FP Control
PCH
BMC
CTRL
CPU
SP1
LED4
IPMI Code
BAR Code
MAC Code
JBT1
BIOS
A
C

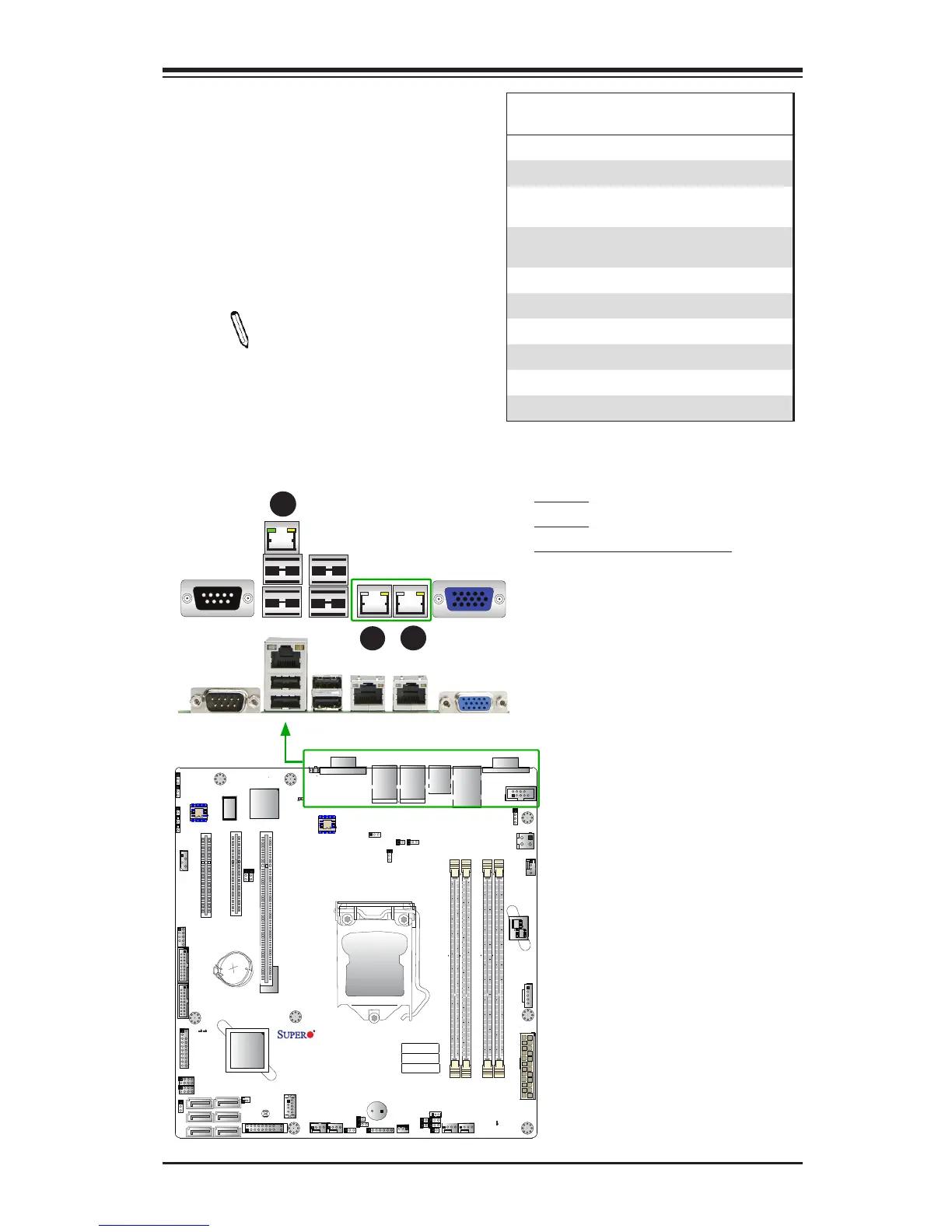

Ethernet Ports
Two Gigabit Ethernet ports (LAN1/
LAN2) are located next to the VGA
Connector on the I/O Backpanel to
provide network connections. An
IPMI dedicated LAN port is also lo-
cated on the -F model boards. These
ports accept RJ45 type cables.
Note: Please refer to the
LED Indicator Section for
LAN LED information.
LAN Ports
Pin Denition
Pin# Denition
1 Ground 10 TD0-
2 Ground 11 Link 1000 LED
(Yellow, +3V3SB)
3 TD3+ 12 Link 100 LED
(Green, +3V3SB)
4 TD3- 13 P3V3SB
5 TD2+ 14 Act LED
6 TD2- 15 Ground
7 TD1+ 16 Ground
8 TD1-
9 TD0+
(NC: No Connection)
A. LAN1
B. LAN2
C. IPMI_LAN (-F models only)
