Supero X10SLM-F User Manual

Chapter 2: Installation
2-21
Power Button
OH/Fan Fail
1
NIC1 Activity LED
Reset Button
2
Power Fail LED
HDD LED
FP PWRLED
Reset
PWR
3.3 V
UID Switch
Blue LED
Ground
Ground
1920
3.3V
X
Ground
NMI
X
NIC2 Activity LED
3.3V Stby
3.3V Stby
FAN2
JP9
SW1
T-SGPIO1
JSTBY1
JIPMB1
JPW2
JSD1
LED3 LED2
JD1
LED5
LED1
JPI2C1
BT1
JPW1
JTPM1
FANA
FAN3
FAN1
FAN2
FAN4
JPL1
JPL2
JPME2
JWD1
JPG1
JBR1
JPME1
J19
J18
J7
JVR1
JI2C1
JI2C2
JOH1
JP8
JL1
JP2
JP1
JP7
USB 3.0-0
USB 3.0-1
USB 3.0-2/3
VGA
LAN2
LAN1
USB4/5
USB6/7
IPMI_LAN
COM2
COM1
P1-DIMMB1
P1-DIMMB2
P1-DIMMA2
P1-DIMMA1
PCH SLOT4 PCI-E 2.0 X4(IN X8)
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT6 PCI-E 3.0 X8(IN X16)
JF1
I-SATA4
I-SATA3
I-SATA5 I-SATA2
I-SATA1
I-SATA0
USB8/9
JRK1
T-SGPIO2
JPB1
X10SLM-F/X10SLL(-F/SF/S)
Rev. 1.02
BMC FW
FP Control
PCH
BMC
CTRL
CPU
SP1
LED4
IPMI Code
BAR Code
MAC Code
JBT1
BIOS

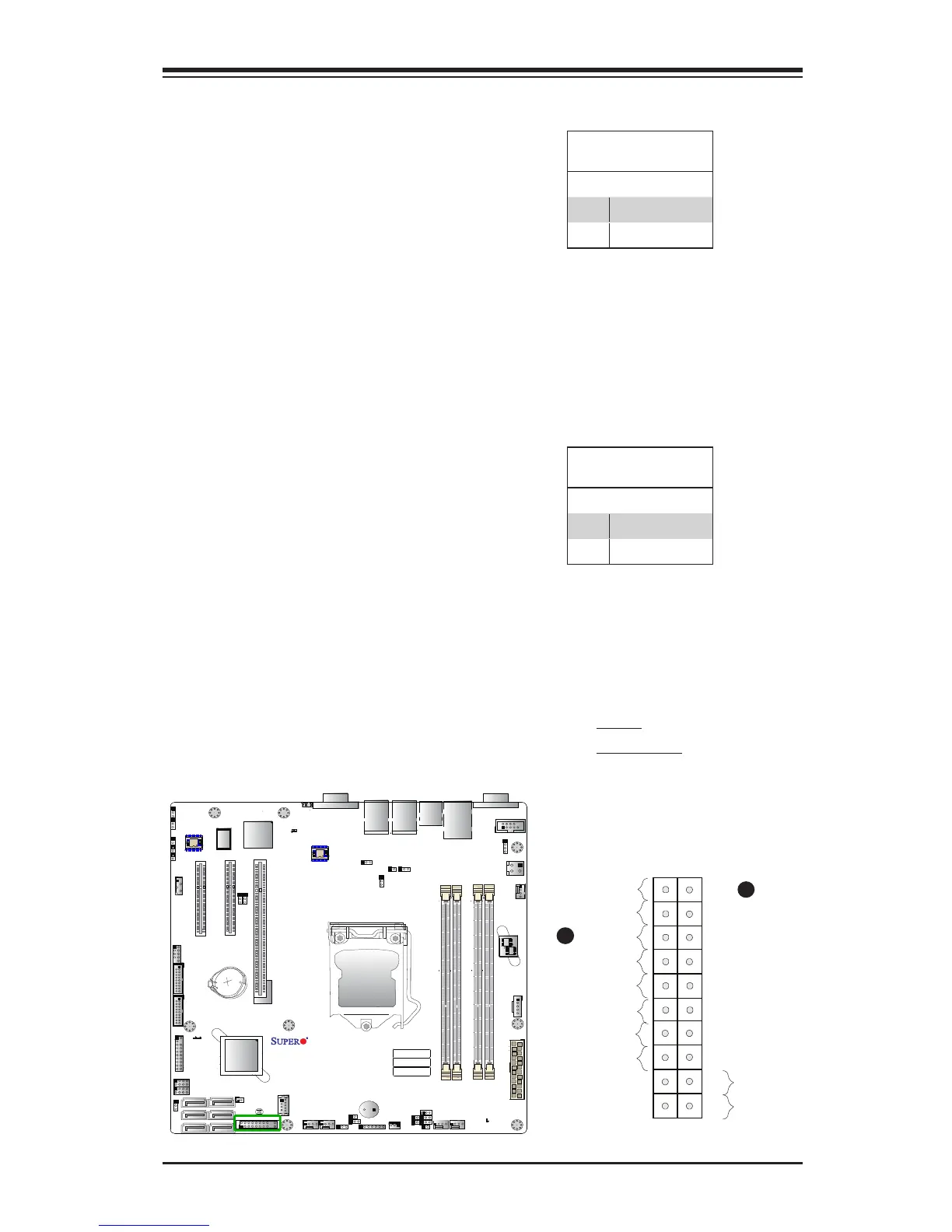

Front Control Panel Pin Denitions
A. NMI
B. PWR LED
A
B
Power LED
The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin denitions.
NMI Button
The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin denitions.
NMI Button
Pin Denitions (JF1)
Pin# Denition
19 Control
20 Ground
Power LED
Pin Denitions (JF1)
Pin# Denition
15 3.3V
16 PWR LED
