Chapter 2: Installation
2-15
X8DTH
Rev. 1.01

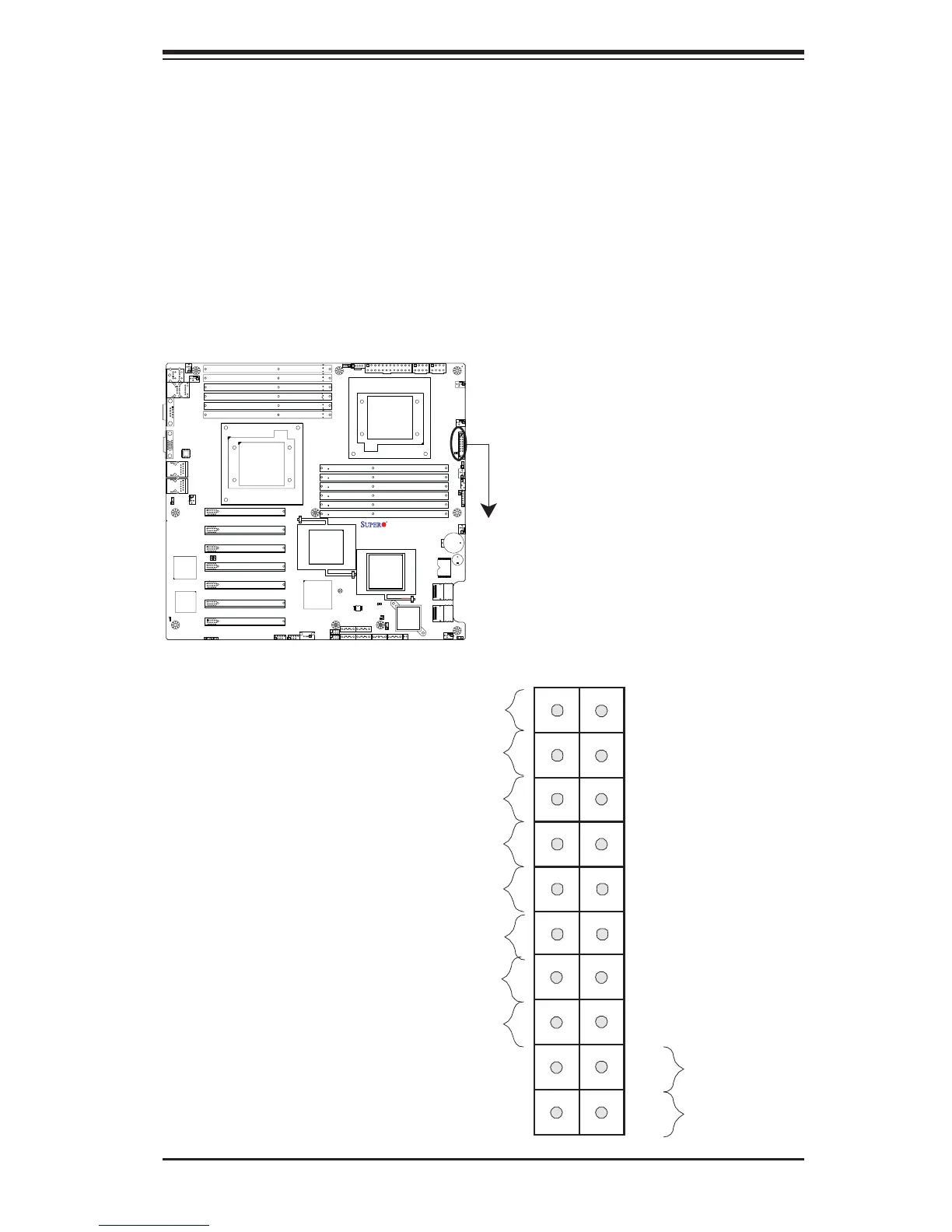

2. Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located
on a control panel at the front side of the chassis. These connectors are designed
speci cally for use with Supermicro server chassis. See the gure below for the
descriptions of the various control panel buttons and LED indicators. Refer to the
following section for descriptions and pin de nitions.
JF1 Header Pins
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
Vcc
Vcc
Vcc
Vcc
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
PWR Fail LED
NIC2 LED
