2-30
X8DTH-6/X8DTH-6F/X8DTH-i/X8DTH-iF User's Manual
SPI BIOS
J*
I-SATA1
I-SATA0
I-SATA5
I-SATA4
JBT1
SATA-SGPIO0
DP5
LED5
DP4
JPL1
JPG1
JPB
JPS1
JWD
JI2C2
JI2C1
JOH1
JD1
LAN1
VGA
FAN5
KB/MS
P2-DIMM3A
FAN6
P2-DIMM3B
JPI2C
JPW1
JPW2
FAN1
P2-DIMM2A
P2-DIMM2B
P2-DIMM1A
P2-DIMM1B
FAN7
COM1
CPU1
JF1
CPU2
IPMI_LAN
USB0/1
PWR_LED
P1-DIMM1B
P1-DIMM1A
FAN2
P1-DIMM2A
SMBus1
LAN2
FAN8
P1-DIMM3B
Slot7 PCI-E 2.0 X8
P1-DIMM3A
FAN3
Slot6 PCI-E 2.0 X8
Slot5 PCI-E 2.0 X8
Battery
Slot4 PCI-E 2.0 X8
Buzzer
Slot3 PCI-E 2.0 X8
FLASH
(IOH36D-1)
BMC
Slot2 PCI-E 2.0 X8
SAS Activity
SAS0~3
ICH10R
SAS4~7
Slot1 PCI-E 2.0 X8
USB4/5
USB3
USB6/7
LSI
SAS2008
FAN4
JPW3
P1-DIMM2B
LAN CTRL
SAS
PHY
I-SATA2
I-SATA3
X8DTH
Rev. 1.01
SATA-SGPIO1
DP6
DP7
Intel
(South Bridge)
5520
Intel
(IOH36D-2)
5520
Intel
RAID Key
JL1
J7
A
B

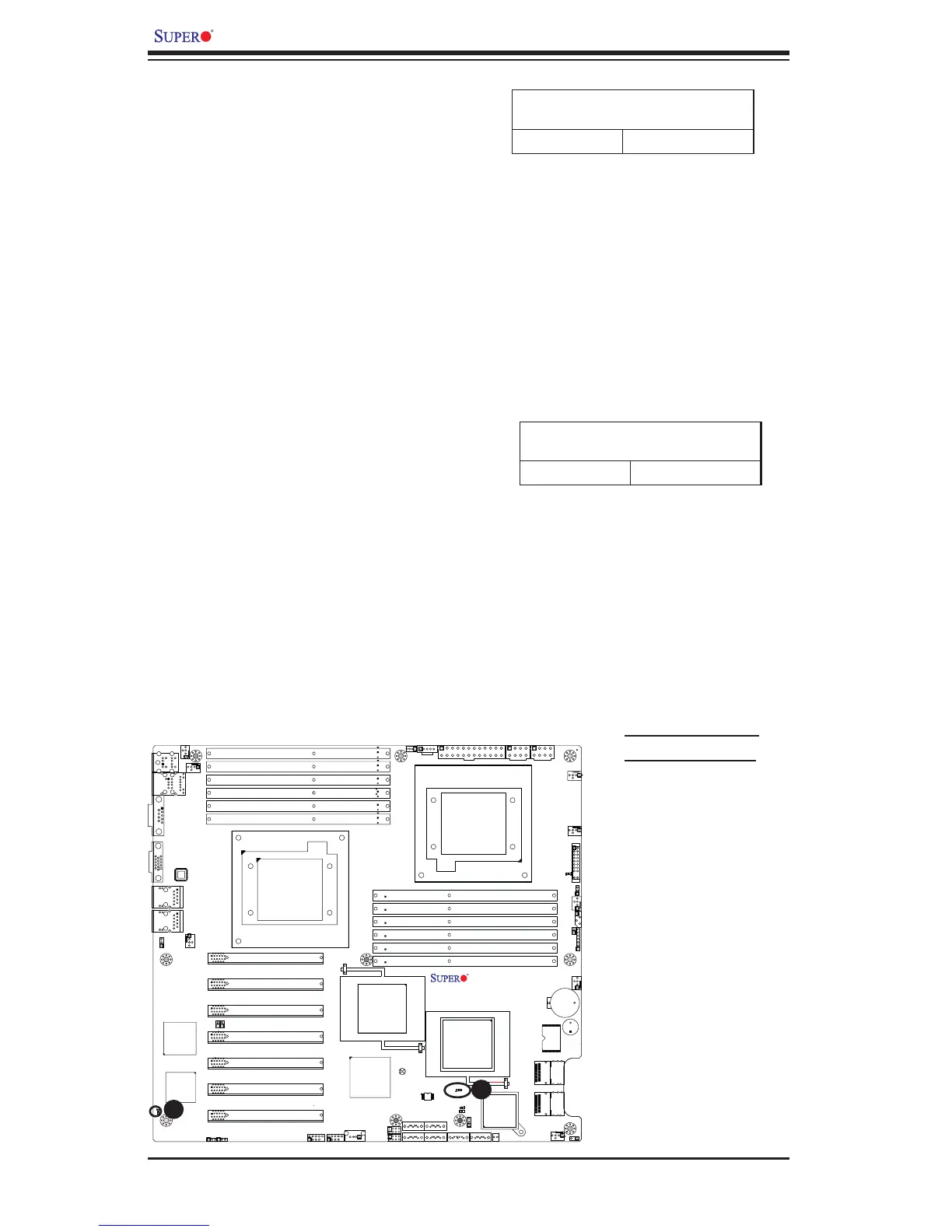

A. BMC Activity LED
B. SAS Activity LED
BMC Activity LED (X8DTH-iF/6F)
A BMC Heartbeat LED is located at DP5
on the motherboard. When DP5 is on,
BMC (Baseboard Management Control-
ler) is active. See the tables at right for
more information.
BMC Activity LED Indicator
LED Settings
Green: On BMC is active
SAS Activity LED (X8DTH-6/6F)
A SAS Activity LED is located at LED5.
When LED5 is on, SAS is active. Refer to
the table on the right for details. Also see
the layout below for the LED location.
SAS Activity LED Indicator
LED Settings
Green: On SAS is active
