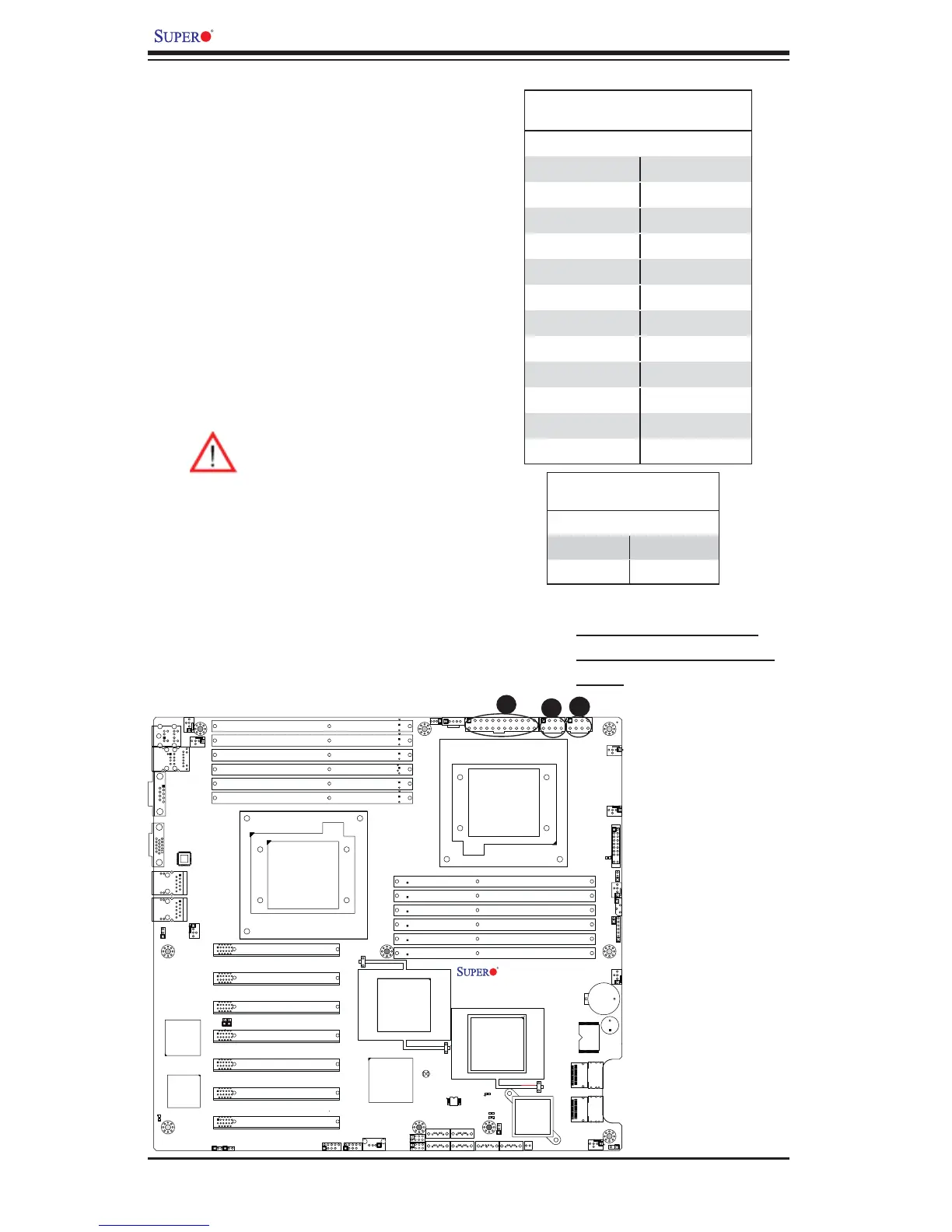

2-6 Connecting Cables
Power Connectors
A 24-pin main power supply connector(JPW1)
and two 8-pin CPU PWR connectors (JPW2/
JPW3) on the motherboard. These power
connectors meet the SSI EPS 12V specifi -
cation. In addition to the 24-pin ATX power
connector, the 12V 8-pin CPU PWR connec-
tors at JPW2/JPW3 must also be connected
to your power supply. See the table on the
right for pin defi nitions.
ATX Power 24-pin Connector
Pin Defi nitions
Pin# Defi nition Pin # Defi nition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
12V 8-pin PWR Connector
Pin Defi nitions
Pins Defi nition
1 through 4 Ground
5 through 8 +12V
A. 24-pin ATX PWR (Req'd)
B/C.8-pin Processor PWR
(Req'd)
A
B
Warning: To prevent damage to
the power supply or motherboard,
please use a power supply that
contains a 24-pin and two 8-pin
power connectors. Be sure to
connect these connectors to the
24-pin (JPW1) and the two 8-pin
(JPW2,JPW3) power connectors
on the motherboard. Failure in do-
ing so will void the manufacturer
warranty on your power supply and
motherboard.
C
(Required)
To Next Page
