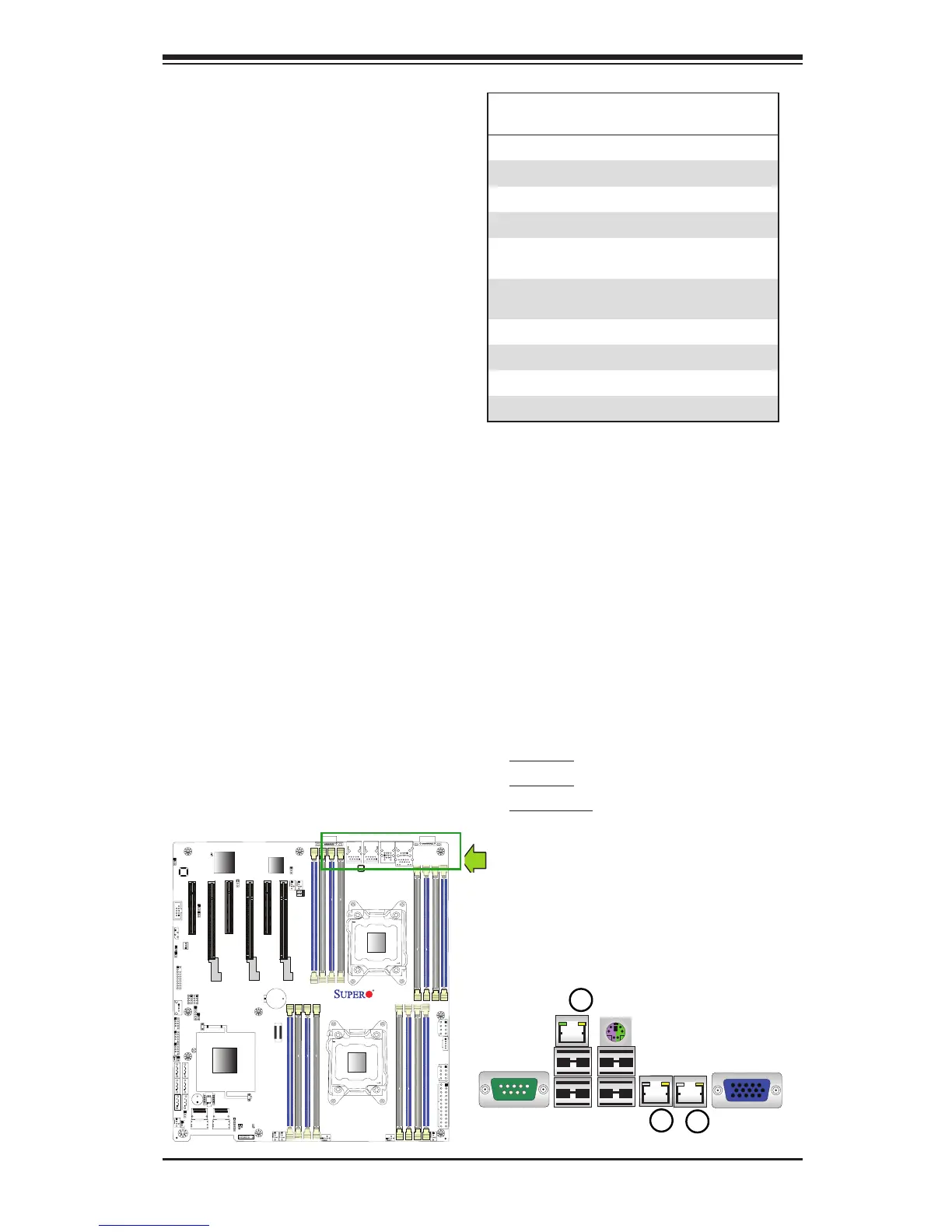

Ethernet Ports
Two Gigabit Ethernet ports (LAN1,
LAN2) are located on the I/O back-
plane on the motherboard. In addition,
an IPMI_Dedicated LAN is located
above USB 0/1 ports on the backplane
to provide KVM support for IPMI 2.0.
All these ports accept RJ45 type ca-
bles. Please refer to the LED Indicator
Section for LAN LED information.
LAN Ports
PinDenition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED (Yel-
low, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 18 Ground
(NC: No Connection)
