Supero X9DR3-F User Manual

Chapter 2: Installation
2-39
Note: For more information on SATA HostRAID conguration, please refer
to the Intel SATA HostRAID User's Guide posted on our website @ http://
www.supermicro.com..
JRK1
LE1
JWF1
SP1
JIPMB1
JPME1
BT1
JBT1
JP3
JWD
JPB1
JL1
JF1
FAN3
FAN2
FAN1
FANB
JTPM1
JPWR1
JPWR2
JI2C1
X9DR3/i-F
SCU4~7
SCU0~3
P2 DIMMH2
P2 DIMMG2 P2 DIMMH1
P2 DIMMG1
P2 DIMME1
P2 DIMME2 P2 DIMMF1
P2 DIMMF2
P1 DIMMA2 P1 DIMMA1 P1 DIMMB2
P1 DIMMB1
P1 DIMMD2
P1 DIMMD1
P1 DIMMC1
P1 DIMMC2
USB4/5
LAN2
TPM/PORT80
USB10/11
USB8/9
USB6
IPMI_LAN
ALWAYS POPULAT E DIMMxA FIRST
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
VGA
COM1
KB/Mouse
I-SATA0
T-SGPIO2
T-SGPIO1
COM2
JSTBY1
FAN4
USB 0/1
LAN1
PHY
LAN
CTRL
BMC
CTRL
SIO
BIOS
JPWR3
Rev. 1.11a
Battery
PCH
C602/
C606
USB 2/3
JPL1
J29
DM1
JD1
JOH1
J21
JITP0
JPG1
J22
JPME2
JI2C1JI2C2
CPU1
CPU2
CPU2 Slot5 PCI-E 3.0 x 8
CPU2 Slot 6 PCI-E 3.0 x 16
CPU1 Slot1 PCI-E 3.0 x 8
CPU2 Slot4 PCI-E 3.0 x 16
CPU1 Slot3 PCI-E 3.0 x 8
CPU1 Slot2 PCI-E 3.0 x 16
FAN6 FAN5
FANA
Serial ATA/SCU
PinDenitions
Pin# Denition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground
A. I-SATA0 (SATA 3.0)
B. I-SATA1 (SATA 3.0)
C. I-SATA2 (SATA 2.0)
D. I-SATA3 (SATA 2.0)
E. I-SATA4 (SATA 2.0)
F. I-SATA5 (SATA 2.0)
G. SCU 0~3
H. SCU 4~7 (X9DR3-
F only)
Serial ATA Ports
There are six Serial ATA Ports (I-SATA0~I-
SATA 5) located on the motherboard.
I-SATA 0/1 support SATA 3.0 and I-SATA
2~5 are SATA 2.0 ports. These ports provide
serial-link signal connections, which are
faster than the connections of Parallel ATA.
See the table on the right for pin denitions.
C
D
E

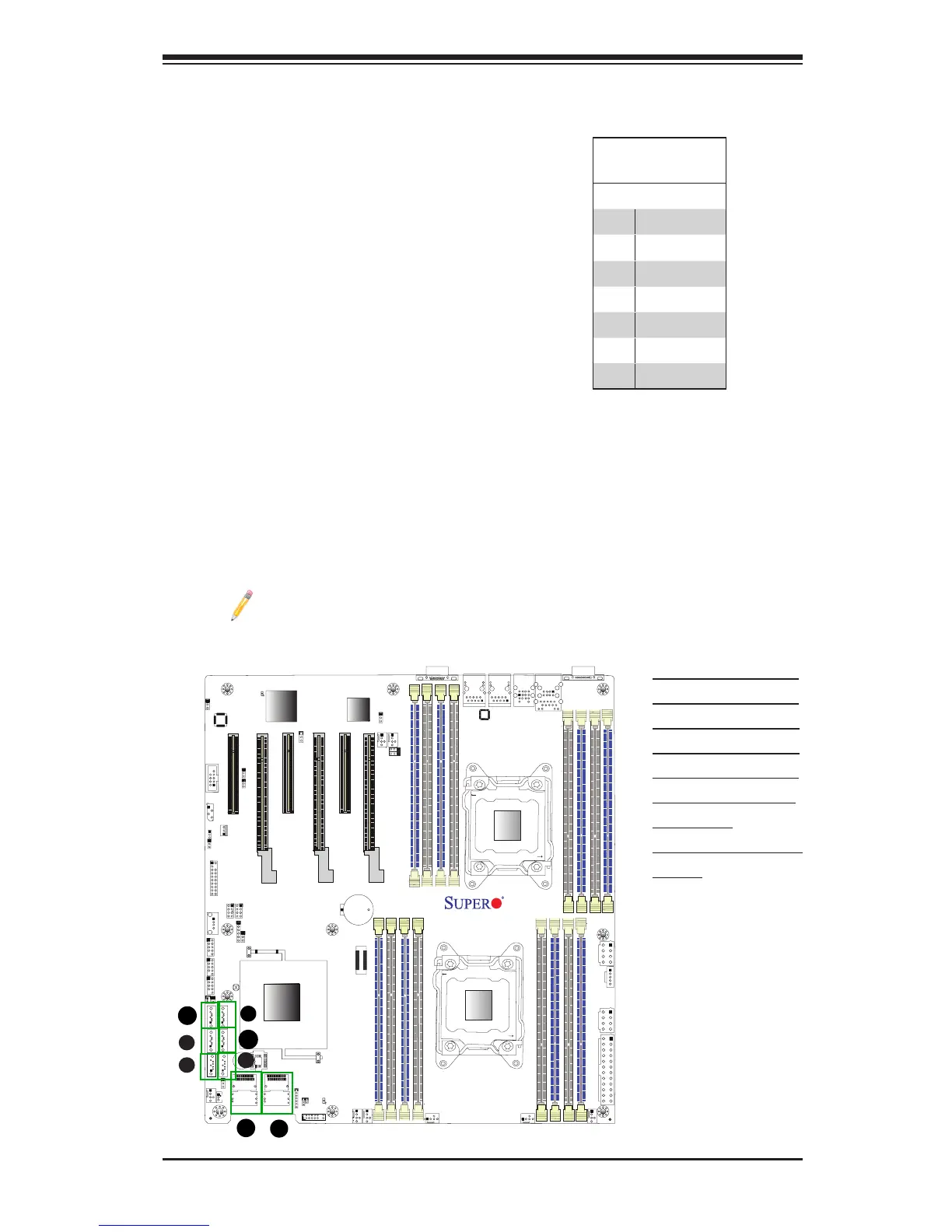

2-10 Serial ATA Connections
B
F
A
SCU Ports
Eight SCU (Storage Control Unit) Ports (SCU 0~3, 4~7) are located on the
X9DR3-F and four SCU (SCU 0~3) ports are on the X9DRi-F to provide serial
link connections. These ports are supported by the Intel PCH. See the table on
the right for pin denitions.
G
H
