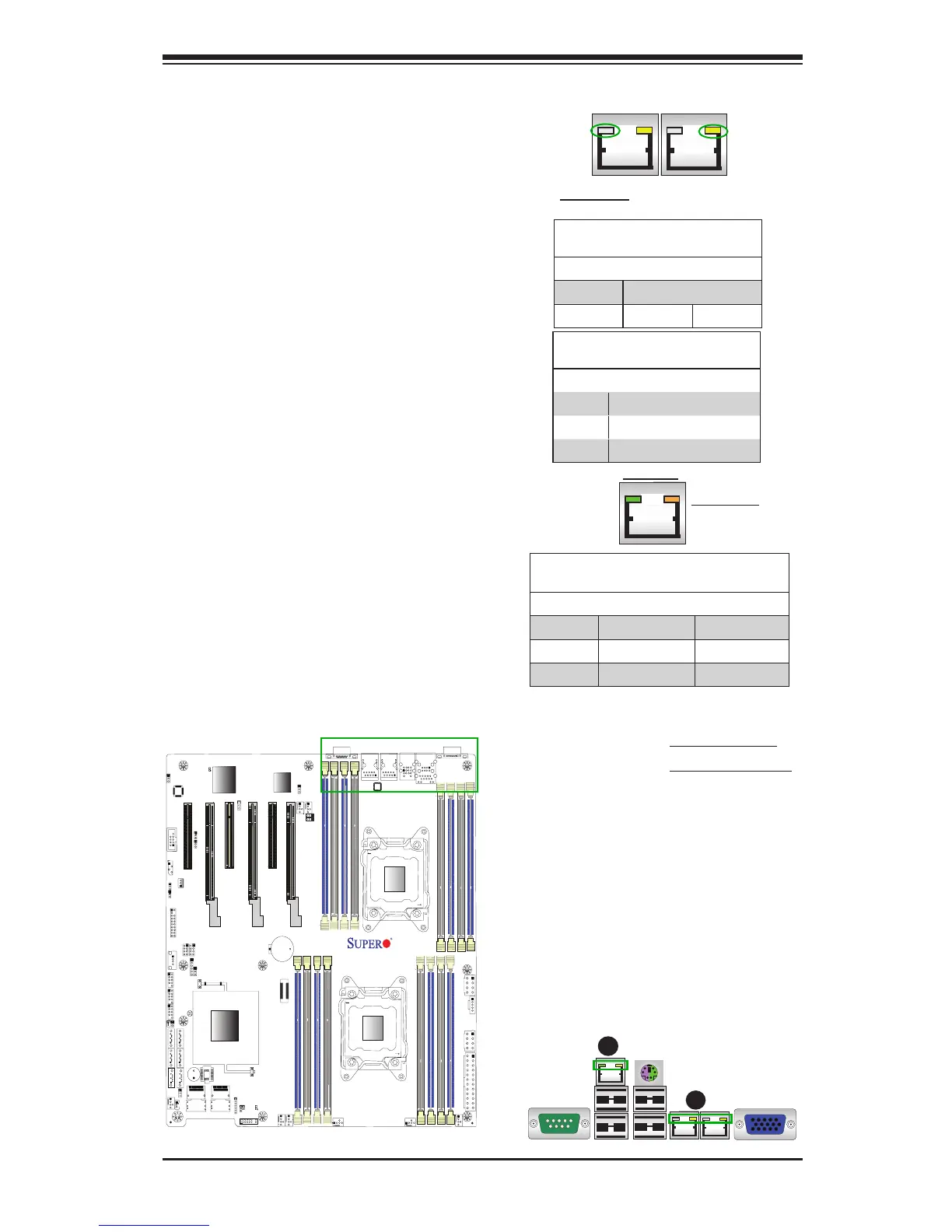

2-9 Onboard LED Indicators
A. LAN1/2 LEDs
B. IPMI LAN LEDs
IPMI Dedicated LAN LEDs
In addition to LAN 1/LAN 2, an IPMI
Dedicated LAN is also located on the I/O
Backplane of the motherboard. The am-
ber LED on the right indicates connection
and activity, while the green LED on the
left indicates the speed of the connec-
tion. See the table on the right for more
information.
LAN 1/LAN 2
IPMI LAN
(X8ST3-F)
Activity LED
IPMI LAN
IPMI LAN Link Speed LED (Left) &
Connection Activity LED (Right)
LED Color/State Denition
Off Off No Connection
Activity Amber: Blinking Active
Speed Green: Solid 100 Mbps
GLAN LEDs
There are two GLAN ports on the moth-
erboard. Each Gigabit Ethernet LAN port
has two LEDs. The Yellow LED on the
right indicates connection and activity.
The Link LED on the left side may be
green, amber or off to indicate the speed
of the connection. See the tables on the
right for more information.
Activity LED
GLAN Link Speed Indicator
LED Settings (Left)
LED Color Denition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
Link Speed LED
GLAN Activity Indicator (Right)
LED Settings
Color Status Denition
Off No Connections
Yellow Flashing Active
Rear View (when facing the
rear side of the chassis)
A
B
Link Speed LED
