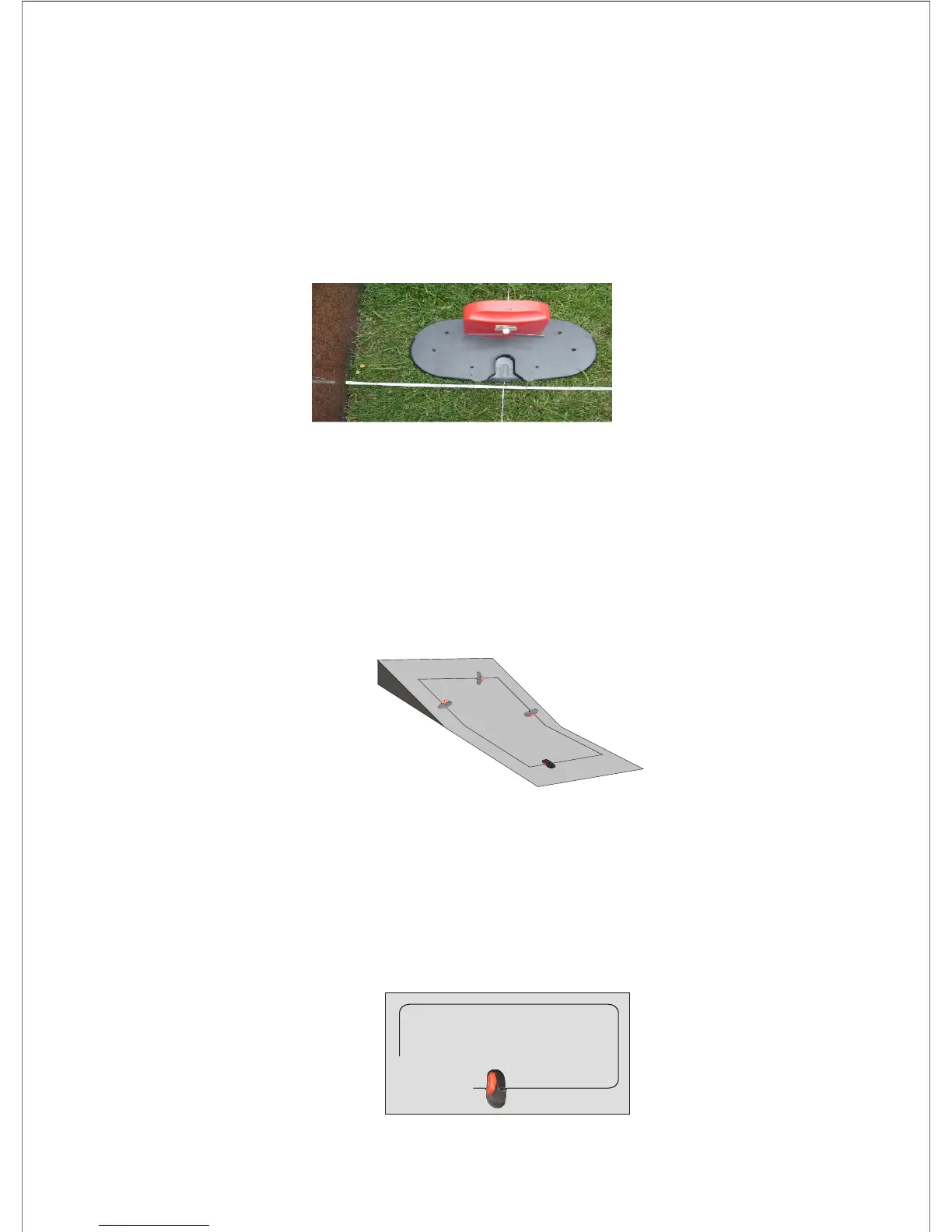

When the lawn fridge is fixed wall, choose the fix position of the workstation as
follow: the center line of the base is in the inner side of the lawn fridge by 50
centimeters. After charging is over, the front of the mower will not get stuck and can
change direction when back to work.(see Figure 1.2.3 C)
Figure 1.2.3 C
1.2.4 The intelligent workstation cannot be fixed on slopes. Fixing the
workstation on slopes fails the mower back to station for charge. The charge post of
the main machine is easy to separate with anodes, which affects the charge effect. If
fixedon downslope, because of its inertia, it is not convenient to move back when
charging is over. The charge post of the main machine is difficult to depart from the
anode, therefore, make ti unable to stop and recharge.
(See Figure 1.2.4)
Figure 1.2.4
1.3 Install fence line
1.3.1 Open the wrapping bag and find the end of a thread with terminal. Pull the
thread out. Put the thread first from the position primarily selected to fix the
workstation, then along the edge of the lawn anti-clockwise (equipped standard
thread 100 meters long). Redundant thread is kept at the back of the workstation
for adjustment. (See Figure 1.3.1) You may buy the same type of thread to connect
onto it , if it is not long enough.
Figure 1.3.1
10
×
×
×
50cm
