4.2 Automatic charge
During working, if battery insufficiency is inspected, the Intelligent Mower will
automatically return to the Intelligent navigating workstation. (See fig 4.2) Charging by
connecting the inductive charging bars and electrodes, after the battery is filled, it will
automatically return to the lawn and work.

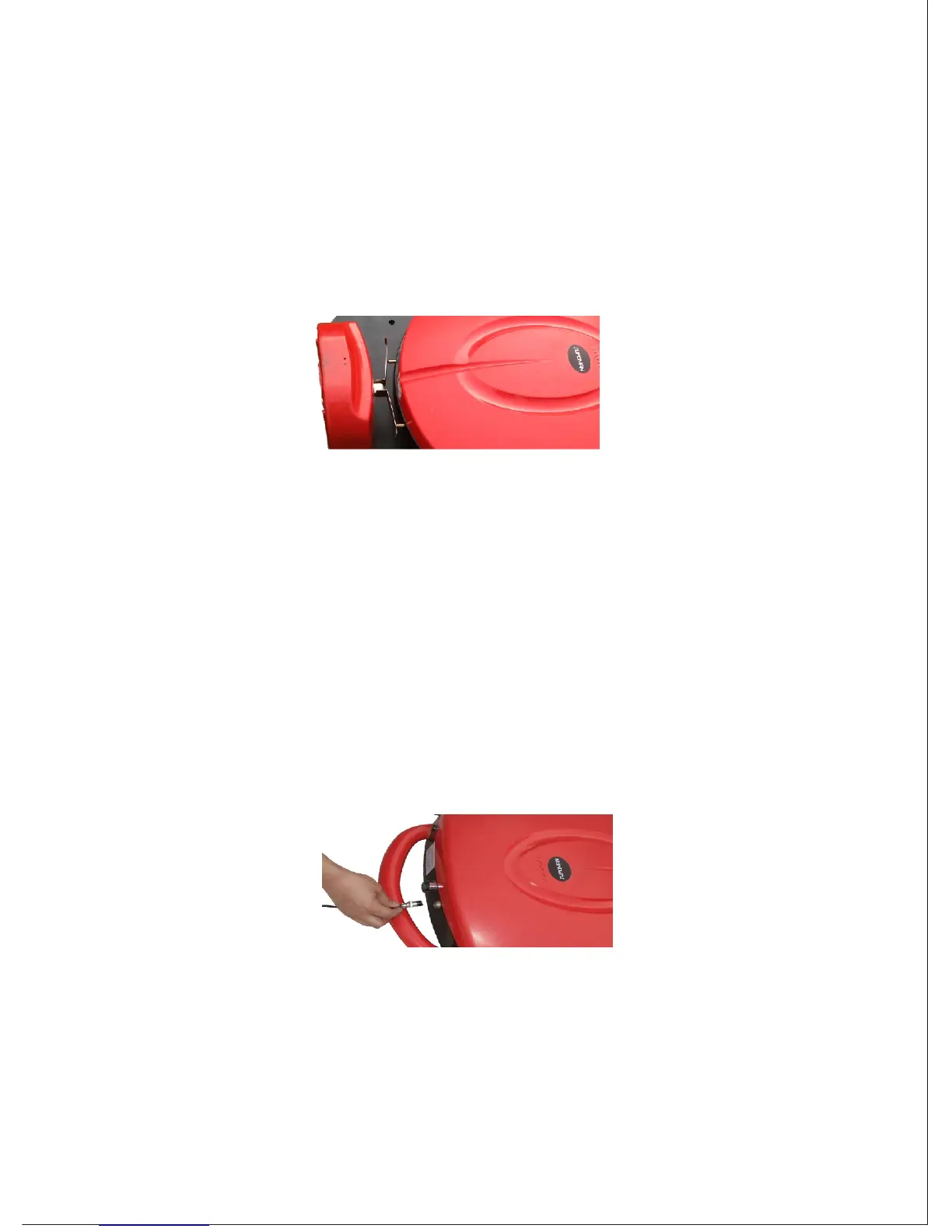

Figure 4.2
Note: The exterior inductive charging electrode slices of the Intelligent navigating
workstation is 24 V DC, please DO NOT touch both slices or connect them by
conductor, in case of short circuit incident and danger.
4.3 Manual charge
If battery inefficiency is inspected, turn off the general power lock, manually connect
the plug of output cable of the charger to the interface at the back end of Intelligent
Mower, until the charger indicator turns from red to green, the battery is filled. Pull out
the plug and turn on the power lock via key, let it work again.
Figure 4.3
23
