Specifications are subject to change without notice.
© 2004 by SURECOM Technology Corporation. All rights reserved.
Page13
2D
1. The Link/Act LED will light
2. The FDX/Col LED depends on the installed LAN card’s capabilities for the PC and the Switch
connection.
3. The 100M LED will light for 100Mbps connection, otherwise it will be unlighted.

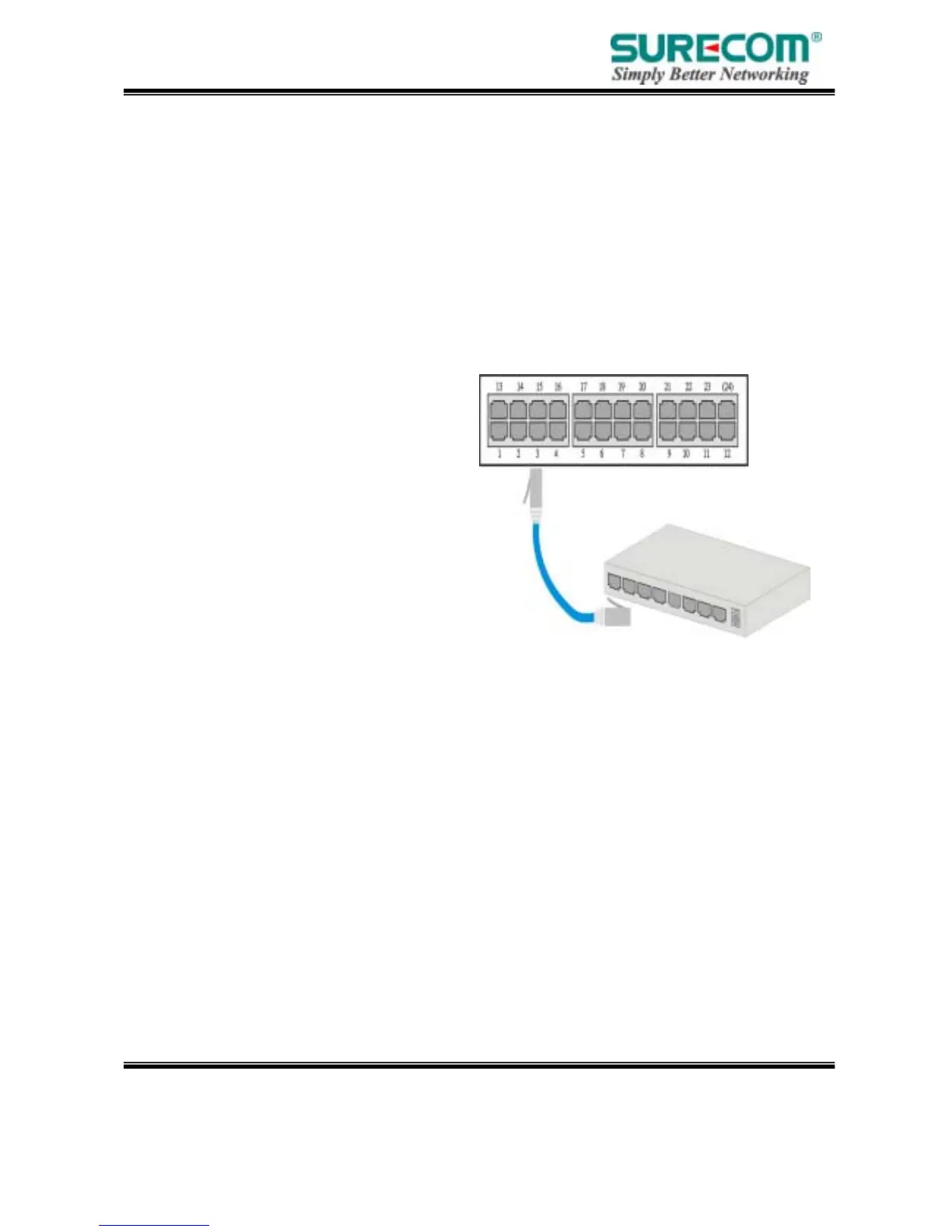

Connecting to Switch or Hub
You can also connect any RJ-45 station port on the Switch to the Uplink port of a Hub or any
port of another switch via straight cable with RJ-45 plugs at both ends.
When a attached 10BASE-T/100BASE-TX Hub is powered on or reset:
(10BASE-T Hub)
The Link/Act LED will light
The FDX/Col LED will be unlighted
The 100 LED will be unlighted
(100BASE-TX Hub)
The Link/Act LED will light
The FDX/Col LED will be unlighted
The 100 will light
When a Switch or other devices is switched on:
The Link/Act LED will light
The FDX/Col LED depends on the attached Switch or other devices’ capabilities.
The 100 LED will light for 100Mbps connection, otherwise it will be unlighted.
