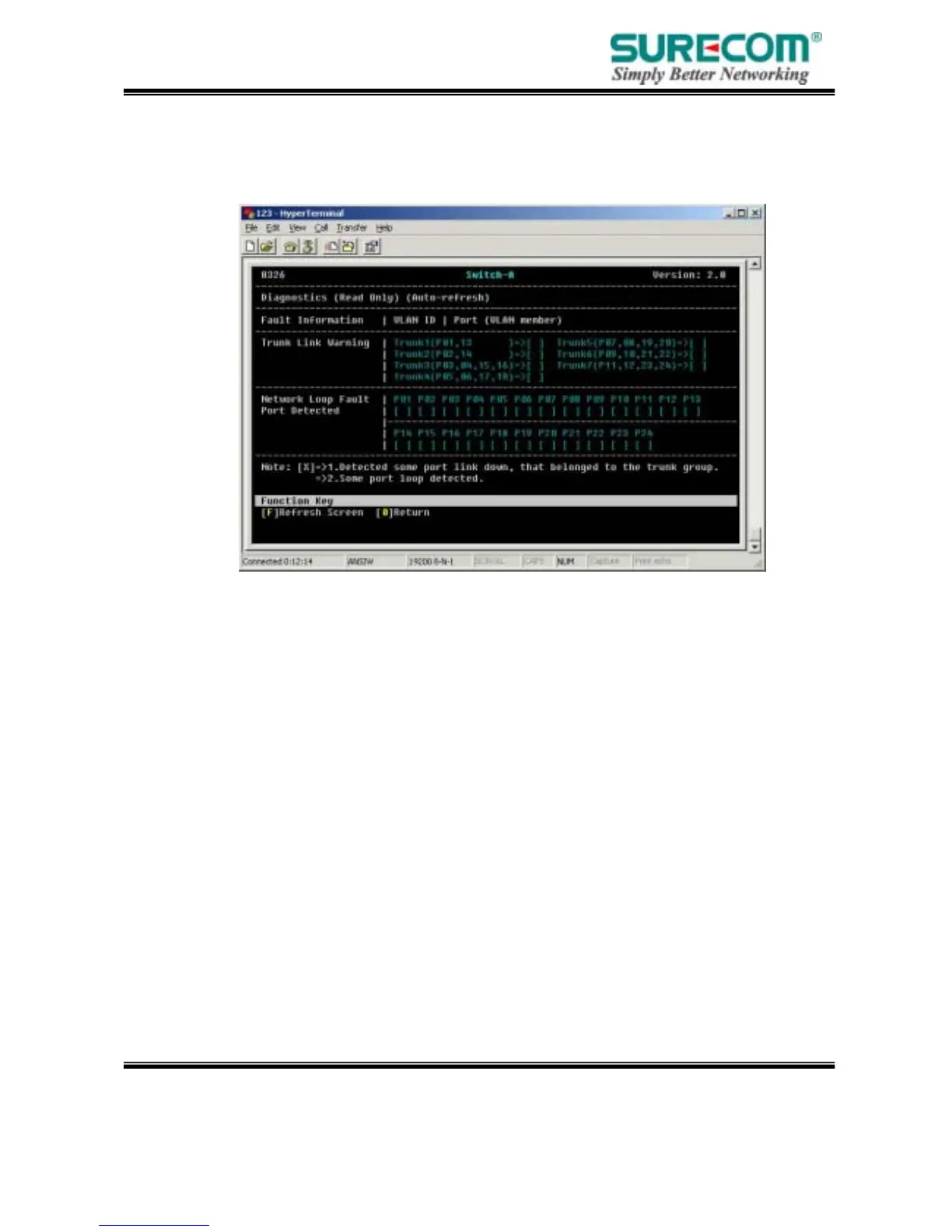

3.4 Diagnostics
This page shows some information about VLAN, Network Loop Fault Test.
Trunk Link Warning:
When ”X ” appears that means the corresponding Trunk port does not link to switch
after Trunk function be enabled.
Network Loop Fault Port Detect:
When ”X” appears ,it means there is undesirable loop in the network caused of the
cable be plugged in the corresponding port.
