3.2.1 Configuration-Port

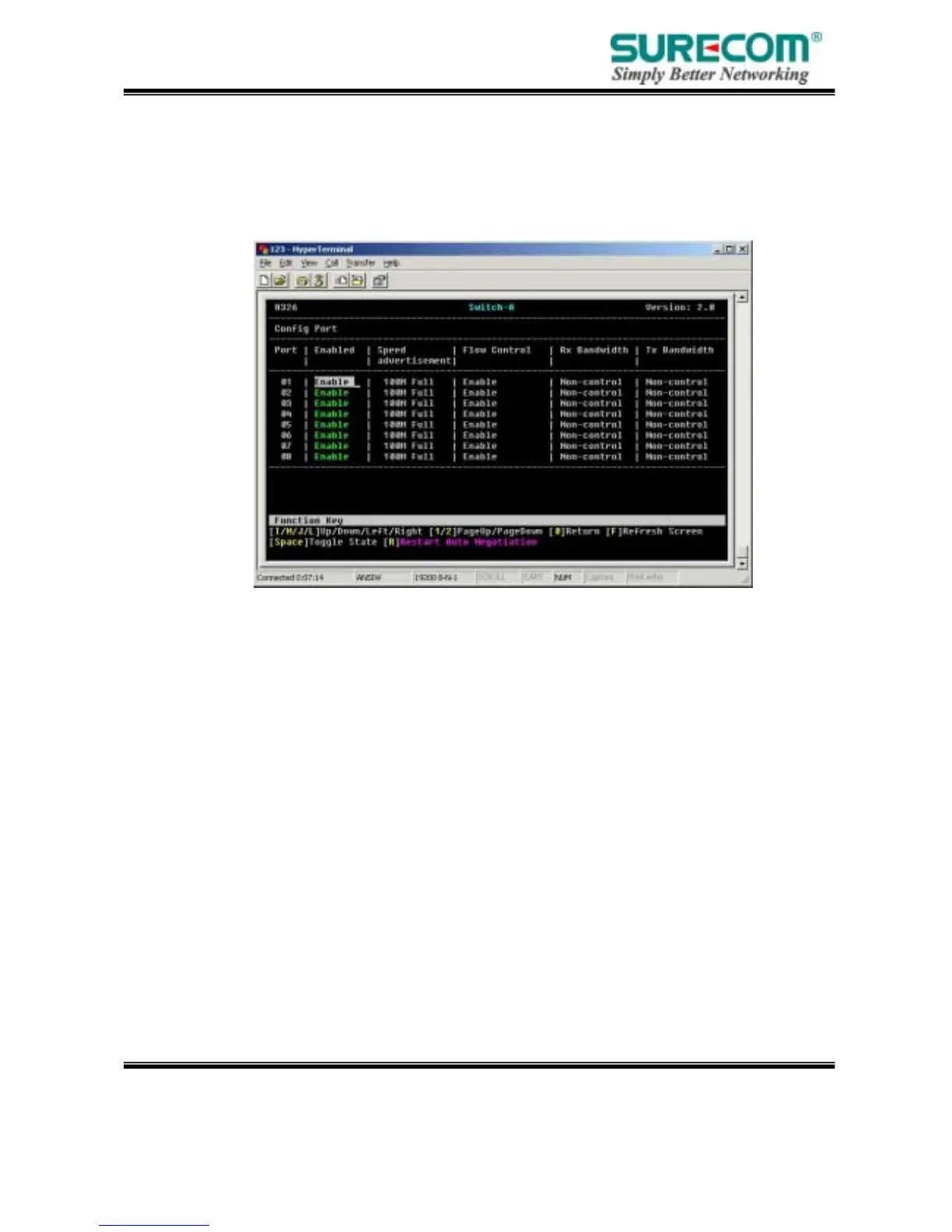

On the “Config Port” sheet, you can check each port’s configuration information
including port enable/disable, Speed Full/Half-duplex, Tx/Rx bandwidth setting.
Click the“I / M / J / L”: Up / Down / Left / Right select.
Click the “0”: Return previous setting sheet.
Click the “Space”: Toggle state.
Click the “R”: Restart Auto Negotiation.
Click the “F”: to get the latest information.
Enable:
Port force to enable or disable. (The LED will be still lighted even on disable status
if the hardware connection still existed between NIC and switch.
Speed advertisement:
You can choose what mode you want on each port from listed below:
100 Full /100Half /10Full/10Half .Please remember to press “R” for data update after
you made choice.(Recommend 100Full)
Flow Control:
You can enable or disable the function of “Flow Control” on each port.
Rx Bandwidth / Tx Bandwidth:
You can configure the “Receive Bandwidth/ Transmit Bandwidth” on which port for
your requirement from follows listing : 128K/256K/512K/1M/2M/4M/8M
