SurePrint SP91 - Drawer Connector

SP91 User Manual
2.3
2.3
2.3
2.3 Drawer
Drawer
Drawer
Drawer Connector
Connector
Connector
Connector

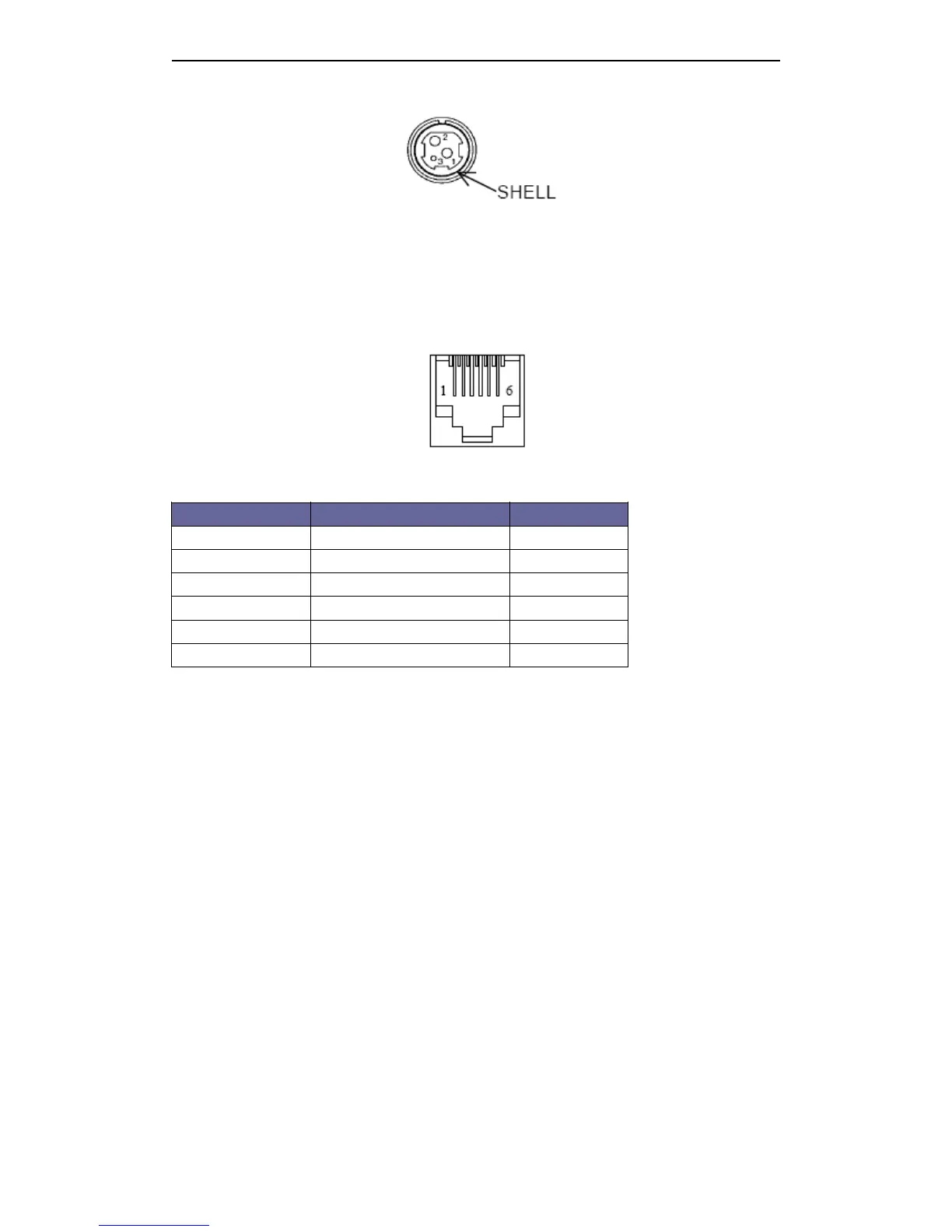

SP91 used RJ-11 6 connector ， as follows:
Pin Definition as the following table:
Pin NO. Signal Ground Direction
1 Frame GND ---
2 Drawer kick-out drive signal 1 Output
3 Drawer open/close signal Input
4 +24V -
5 Drawer kick-out drive signal 1 Output
6 Signal GND -
