INSTALLATION
22
© 2018 Rodan Enterprises LLC t/a SureShade®
ATF Installation Guide
To determine mounting hole location for an underside surface mount on a hardtop with curvature,
see Figure 10A. The mounting holes will ultimately be wider than shade centerline. Mark location of
mounting hole with a grease pencil.

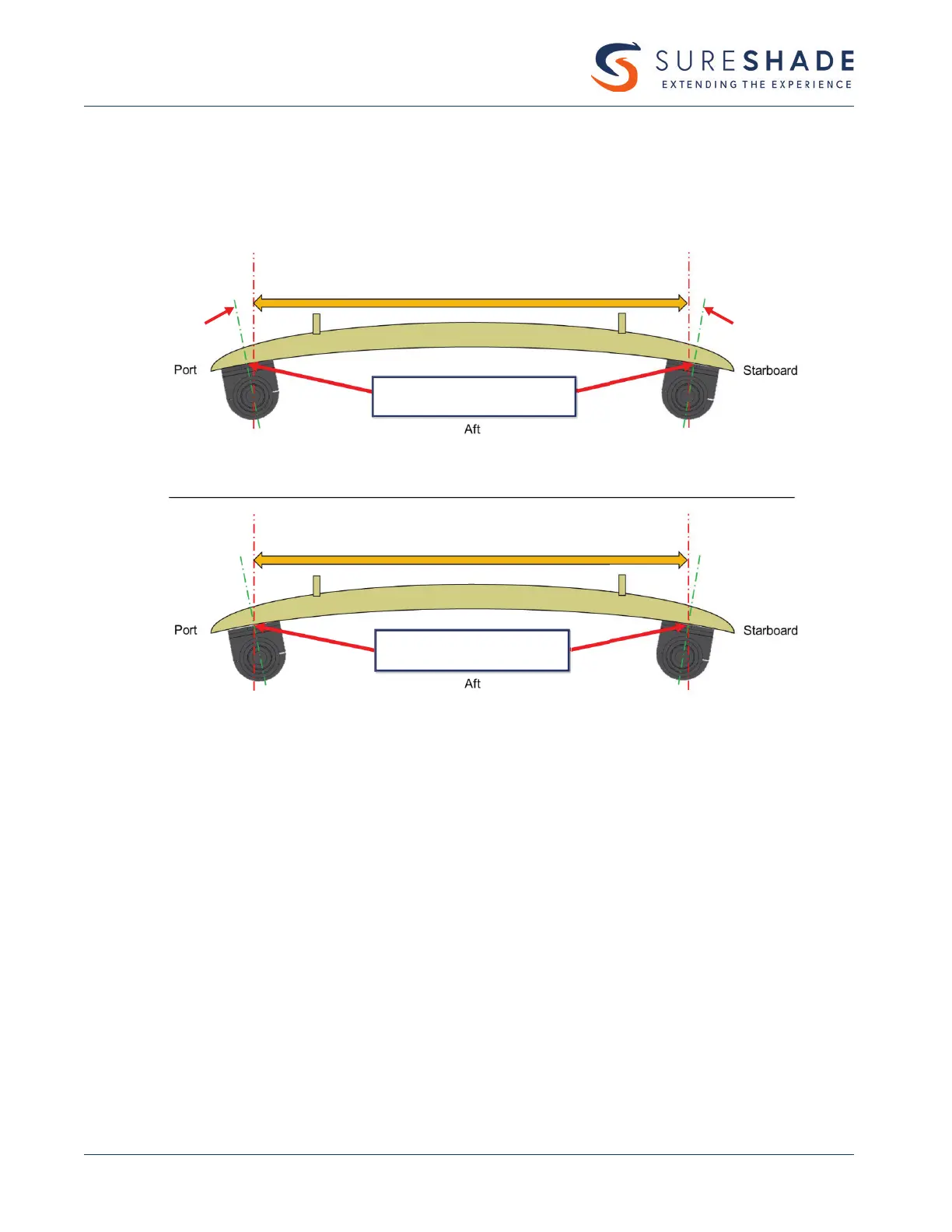

Correct Placement of Mounting Brackets
Adjust placement of brackets
and mark holes here.
Mounting hole
drill line
Shade Centerline Width
Mounting hole
drill line
Figure 10A
Incorrect Placement of Mounting Brackets
DO NOT mark holes here.
Actuators will be too close.
Shade Centerline Width
Figure 10B
Figure 10 – Curved Underside Mount
OTE: N When mounting on a curvature, mark one clamp and measure from the mounting hole to the actuator centerline. Use
that measurement to aid in placement of the remaining clamps.
