Survision Micropak 3 - Assembly Procedure with Strong Electric Current

2.1.2 Assembly procedure with strong electric current
Connect the different elements to put on the

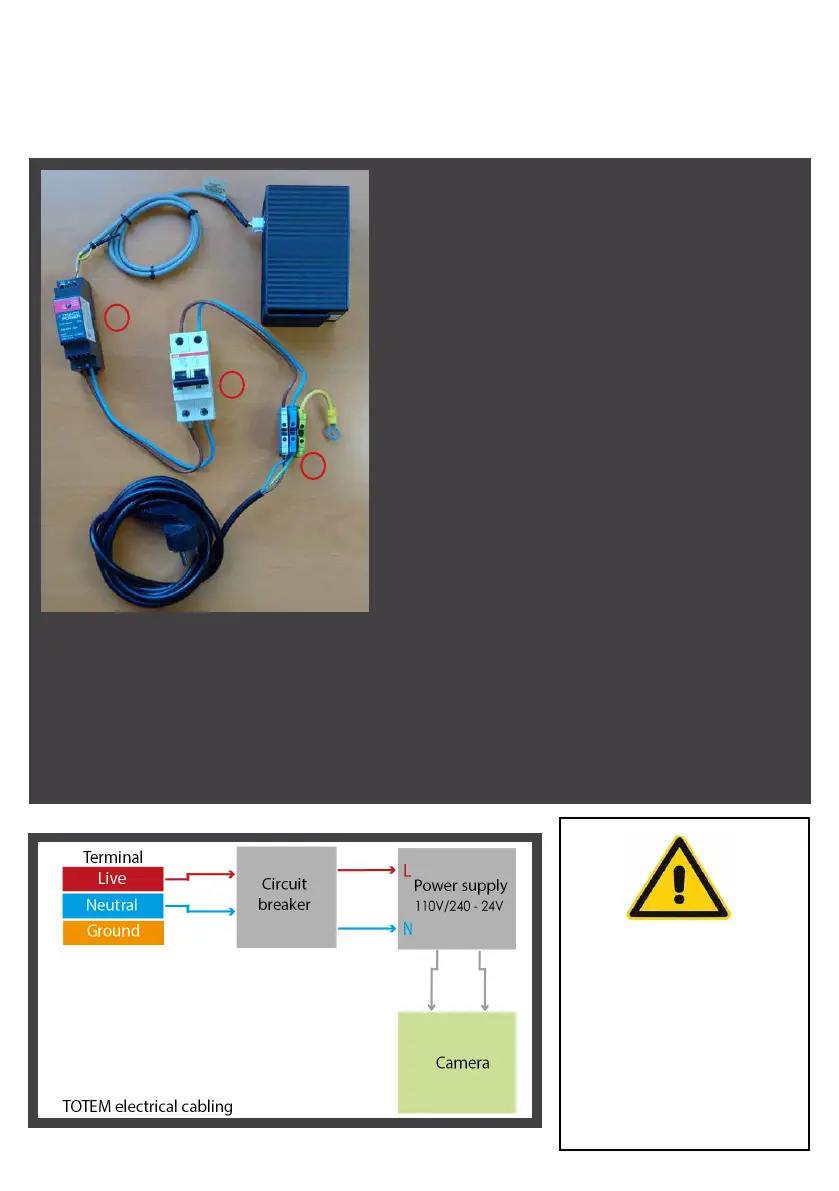

terminal as displayed in the photo:
1 - Power supply
2 - Circuit-breaker
3 - Terminal blocks for connection
The power supply of the totem must respect the
following specications:
- 100 VAC – 240 VAC in 50/60Hz in entry
- 24 VDC in exit
- 0.38 – 0.24 A
The cable sections in front of and behind
the terminal must be compatible with the
manufacturer instructions indicated on the
technical sheet of the terminal.
The Ethernet cable to be used, which is not
provided by SURVISION must be at least Cat5e in
accordance with local regulations.
The circuit-breaker should
be selected according
to the standards of the
country of operation:
- CE standard
- UL standard
The circuit breaker used
by SURVISION is the Multi9
C60- 17456 of Schneider
Electric.
Step 1
The 24V power supply is inside the totem.
The connection to the electricity supply on the terminal is carried out according to the
diagram LNG attached to the totem interior:
- L = Live (Phase)
- N = Neutral
- G = Ground (Earth)
The coherence must be maintained between live and neutral at the entry and exit of the
circuit breaker.
