Survision Micropak 3 - Installation Procedure for Totems Assembled by SURVISION in Factory

2.1.3 Installation procedure for totems assembled by SURVISION in factory
The installer has to assemble:
- The power supply cable in strong current on the
terminal
- The Ethernet cable
- The zip lock strips for the electric cables for the
Ethernet cable and the power supply cable for
strong current
The zip lock supports are tted at the factory. The zip
locks to be used are delivered with the totem.
The connection with the power supply on the terminal is
carried out following the diagram L N
attached to
the interior of the totem, ie :
- L = Live
- N = Neutral
-
= Ground
The power supply of the Totem must respect the
following criteria:
- 100 VAC – 240 VAC in 50/60Hz on entry
- 24 VDC on exit
- 0.38 – 0.24 A
The cross-sections of the power supply cables before
the terminal must respect the following diameters:
- 4 – 10 AWG
- 1,5mm² and 4mm²
The Ethernet cable (not provided by SURVISION) used
must be at least Cat5e in accordance with the local
regulations.

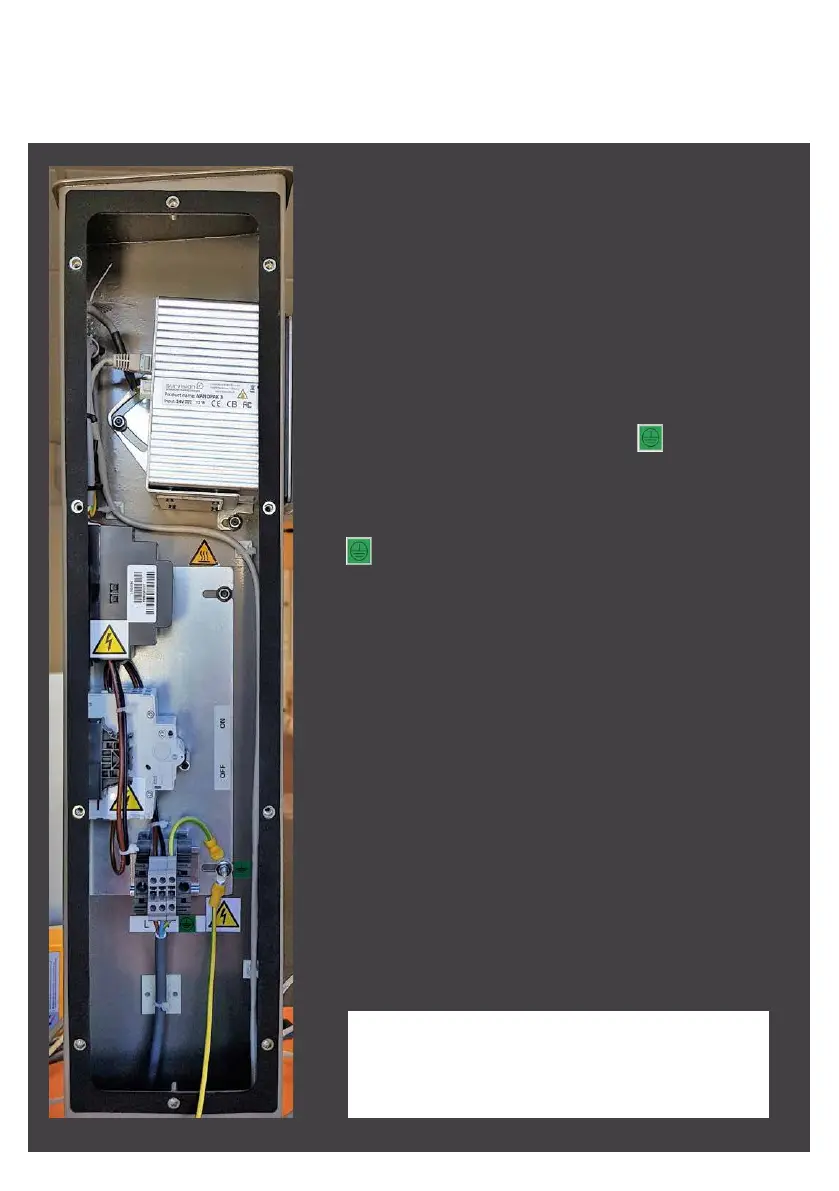

The totems assembled in the factory by SURVISION are delivered as below:
13
In the case of a modication to the
assembly not being carried out by
SURVISION, SURVISION cannot be held
responsible for any consequences.
