Engine overheats:
• Cooling water intake(s) are blocked.
• Engine is overloaded.
• Propeller is not properly matched to loads.

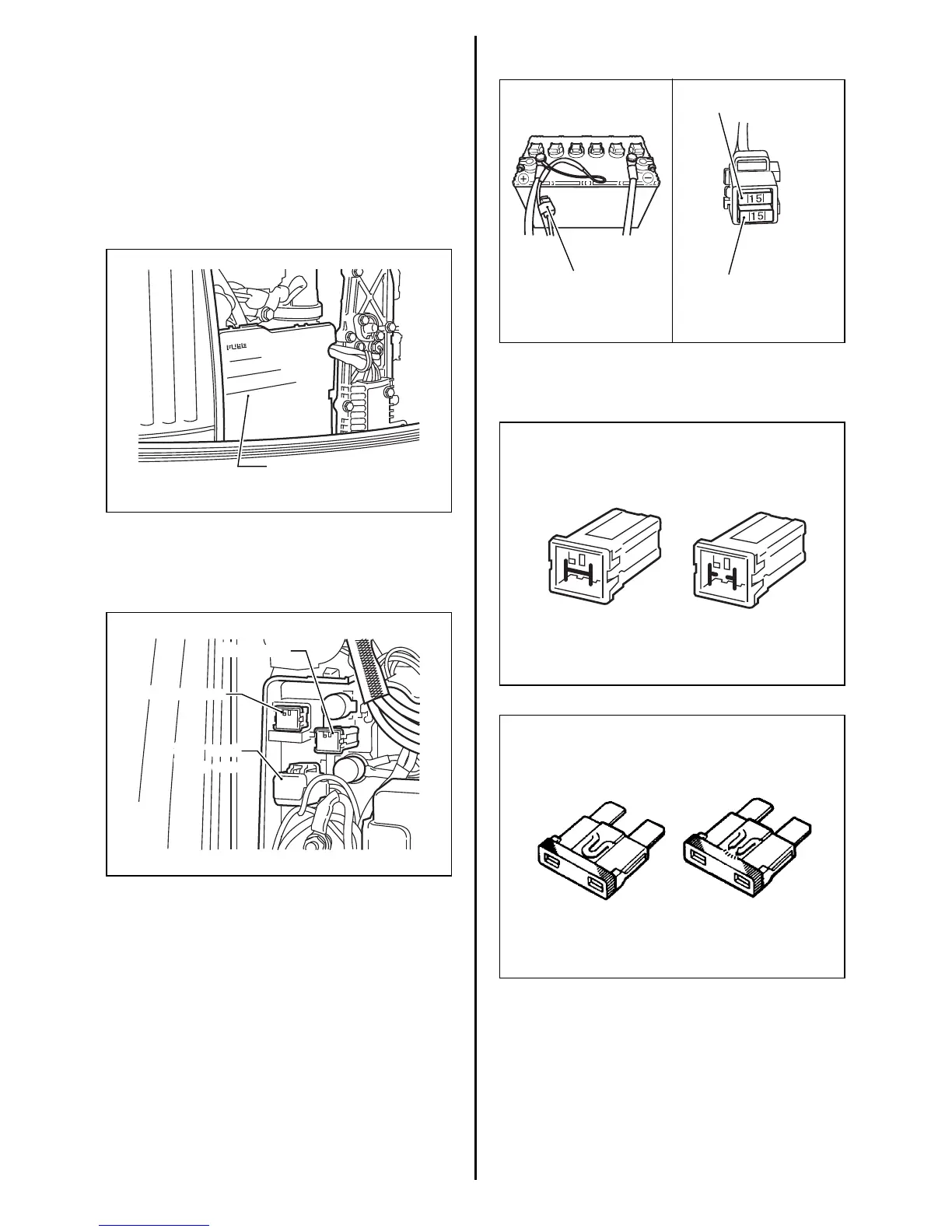

FUSE
1. Turn the ignition key to the “off” position.
2. Remove the motor cover and electric parts
holder cover.
3. Remove the sub fuse case cover and pull off
the sub fuse.
4. Pull off the main fuse.
Electric parts
holder cover
Main fuse
Spare fuse
Sub fuse/
Fuse case
5. Remove the sub battery cable fuse.
6. Inspect the fuse and replace with new fuse if
needed.
Sub battery
cable fuse case
Sub battery
cable fuse
Spare fuse
Normal fuse
Main fuse (60A)
Blown fuse
Normal fuse Blown fuse
Blade type fuse
