Suzuki DF100 - Chart of Total Operating Hours Indication; Flowchart of Oil Change Reminder System

57

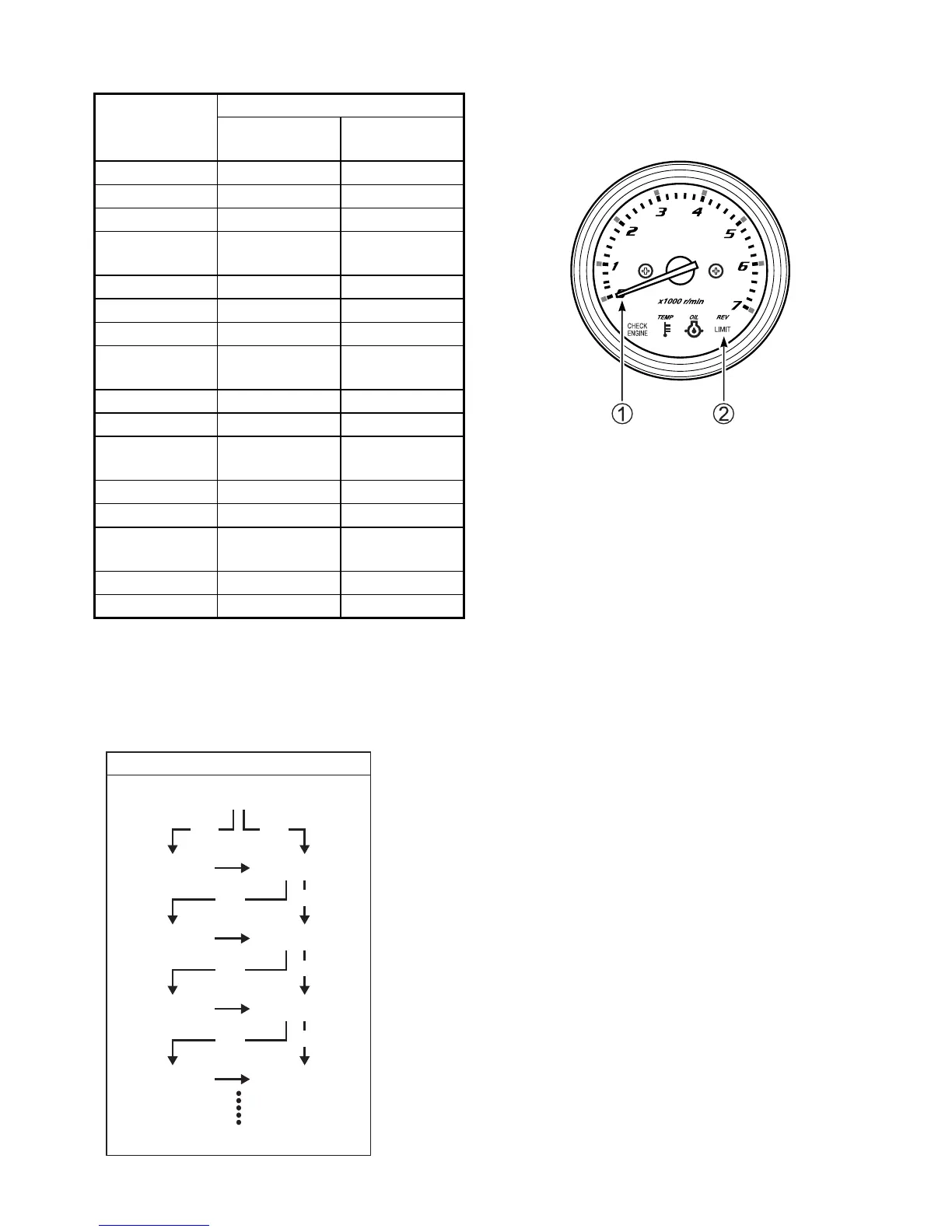

CHART OF TOTAL OPERATING HOURS INDICATION
*: One flashing is corresponded to 500 hours.
FLOWCHART OF OIL CHANGE REMINDER SYSTEM
*1: Lapse of initial 20 hour’s operation
*2: Lapse of 80 hour’s operation
*3: Lapse of 100 hour’s operation
*4: When performing cancellation before system activation
NOTE:
This system will activate up to 2100 hour’s operation.
Total
operating
hours
MONITOR-TACHOMETER
Needle 1
indication
REV-LIMIT
lamp 2 flashing *
0h-(49h) No No
50h- 500rpm
No
60h- 600rpm No
:
:
:
:
:
:
540h- 5400rpm No
550h- 500rpm 1 time
560h- 600rpm 1 time
:
:
:
:
:
:
1040h- 5400rpm 1 time
1050h- 500rpm 2 times
:
:
:
:
:
:
1540h- 5400rpm 2 times
1550h- 500rpm 3 times
:
:
:
:
:
:
2030h- 5300rpm 3 times
2040h or over 5400rpm 3 times
Action
Starting operation
CancellationIndication
(*1) (*4)
CancellationIndication
CancellationIndication
CancellationIndication
Repeat
(*2) (*4)
(*3) (*4)
(*3) (*4)
