CHASSIS 6-29
STEERING

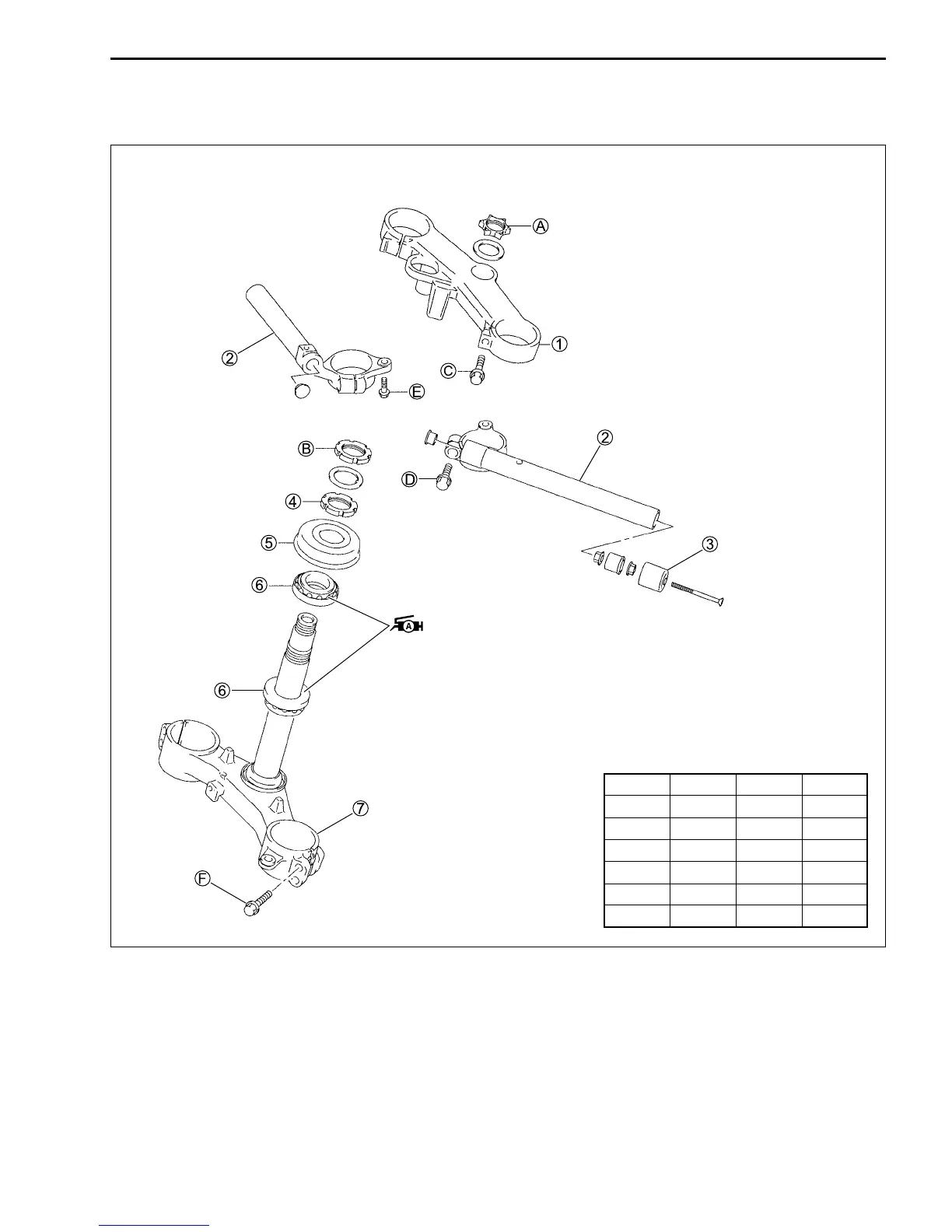

CONSTRUCTION
REMOVAL AND DISASSEMBLY
• Remove the right and left under cowlings. (6-5)
• Remove the front wheel. (6-11)
• Remove the front fork. (6-18)
!
ITEM N
.
m kgf
.
m lb-ft
A 90 9.0 65.0
B 80 8.0 58.0
C 23 2.3 16.5
D 23 2.3 16.5
E 10 1.0 7.0
F 23 2.3 16.5
1 Steering stem upper bracket
2 Handlebar
3 Handlebar balancer
4 Steering stem nut
5 Dust seal
6 Bearing
7 Steering stem lower bracket
A Steering stem head nut
B Steering stem lock nut
C Front fork upper clamp bolt
D Handlebar clamp bolt
E Handlebar set bolt
F Front fork lower clamp bolt
