CHASSIS 6-49
SUSPENSION SETTING
After installing the rear suspension, adjust the spring pre-load
and damping force as follows.

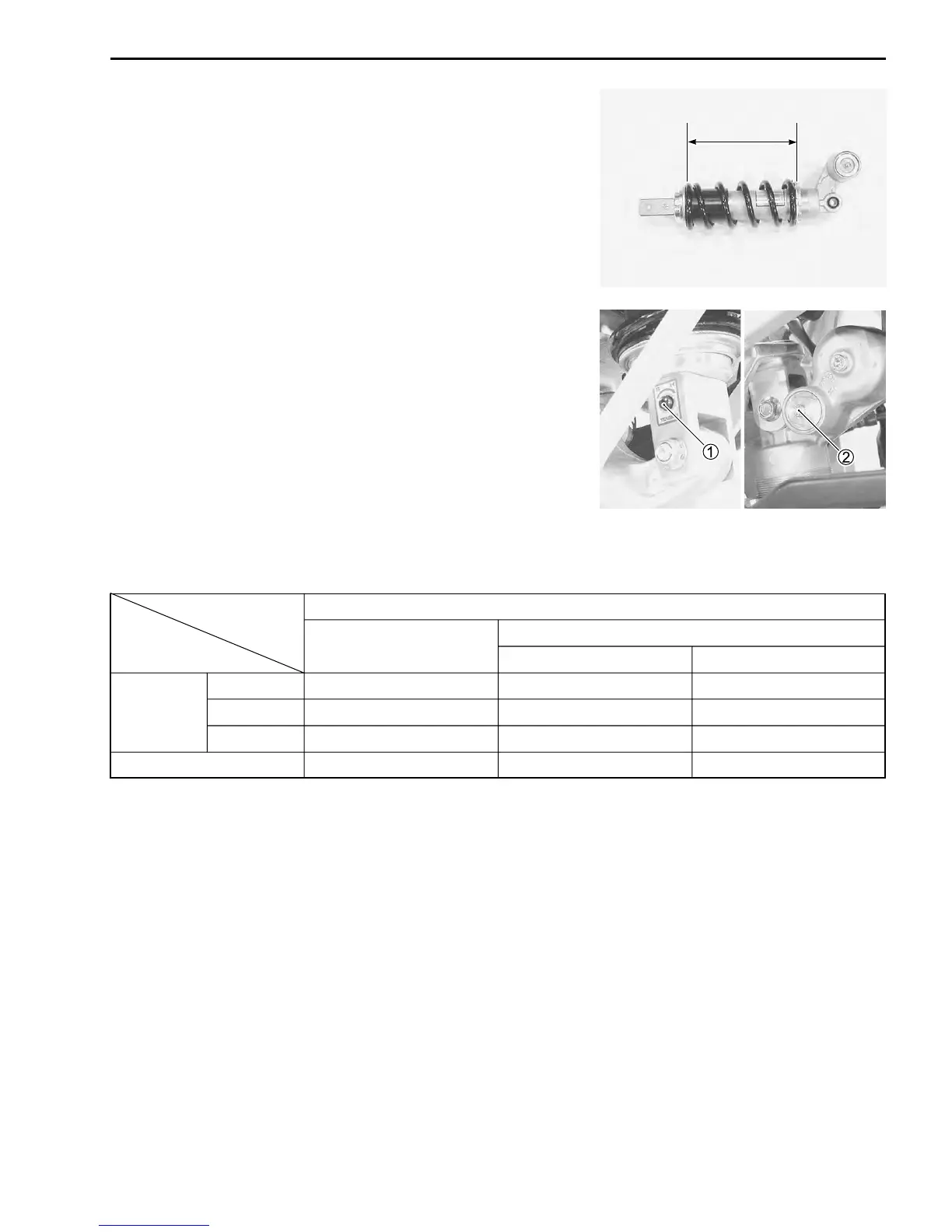

SPRING PRE-LOAD ADJUSTMENT
The set length 186.5 mm provides the maximum spring pre-
load.
The set length 196.5 mm provides the minimum spring pre-load.
(STD length: 191.5 mm)
STANDARD SUSPENSION SETTING
REAR
Spring set length
Damping force adjuster
Rebound Compression
Softer 191.5 mm (7.54 in) 1 and ³ turns out 1 and ¸ turns out
Solo riding Standard 191.5 mm (7.54 in) 1 and µ turns out 1 and · turns out
Stiffer 191.5 mm (7.54 in) 1 turn out º turn out
Dual riding 191.5 mm (7.54 in) 1 and µ turns out 1 and · turns out
Rebound side Compression side
DAMPING FORCE ADJUSTMENT
(Rebound side)
Fully turn the damping force adjuster 1 clockwise. It is at stiffest
position and turn it out to standard setting position.
(STD position: 1 and µ turns out [Fine-tune the adjuster by turn-
ing it slightly until two punch marks align.])
(Compression side)
Fully turn the damping force adjuster 2 clockwise. It is at stiffest
position and turn it out to standard setting position.
(STD position: 1 and · turns out [Fine-tune the adjuster by turn-
ing it slightly until two punch marks align.])
