11-32 GSX-R750K2 (’02-MODEL)

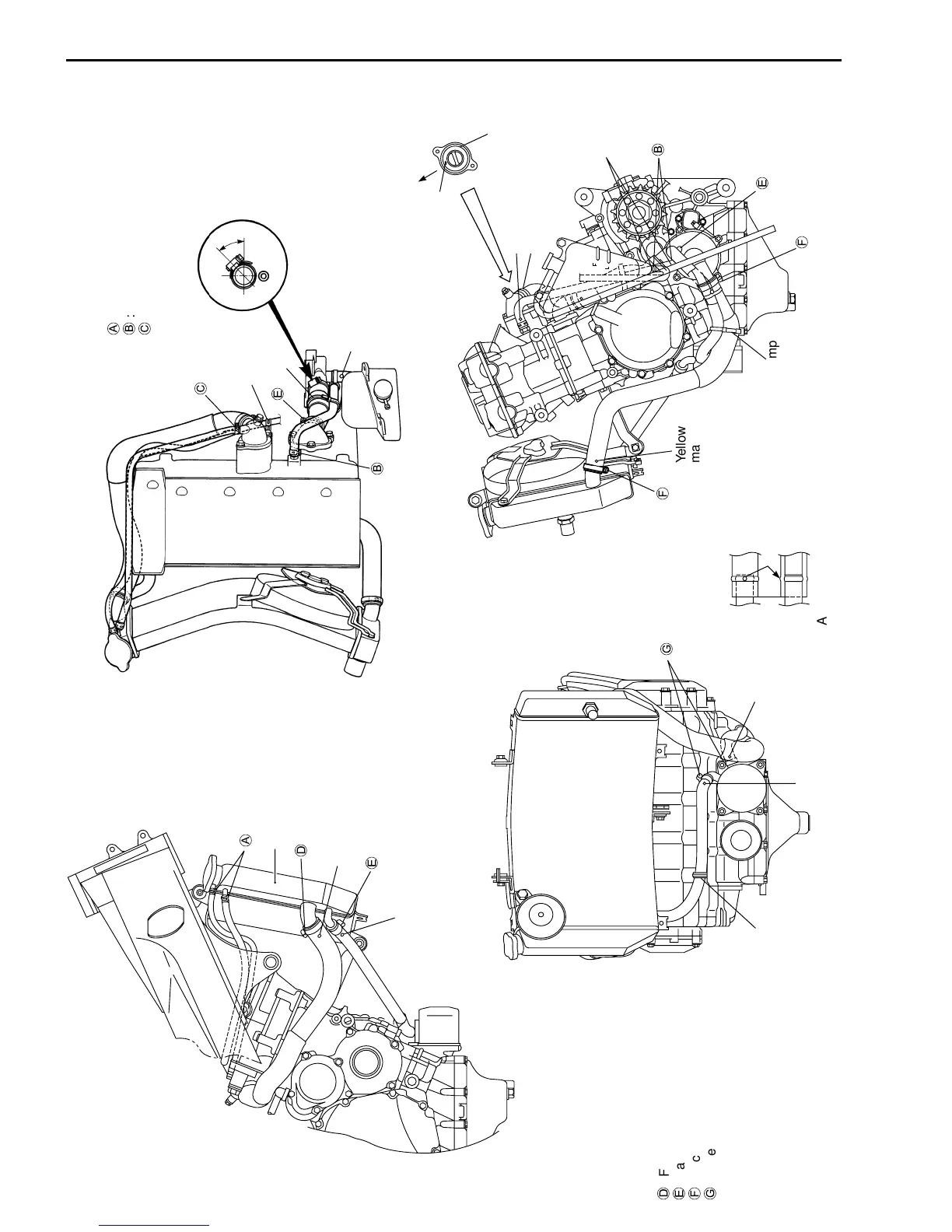

COOLING SYSTEM HOSE ROUTING
A
: Face the tip of clip to the bottom
B
: Face the tip of clip to the left
C
: Face the tip of clip to the back
D
: Face the head of screw to the right
E
: Face the head of screw to the back
F
: Face the head of screw to the left
G
: Face the head of screw to the front
A
Marking
Align the marking
with the lib of pipe.
B
C
B
D
E
F
G
E
F
E
Clamp
Clamp
Yellow
mark
Yellow mark
White mark
Yellow mark
White mark
White mark
Thermostat
Upward
Jiggle valve
Clamp
Clamp
White mark
Yellow mark
Yellow mark
Radiator
To Next Page
